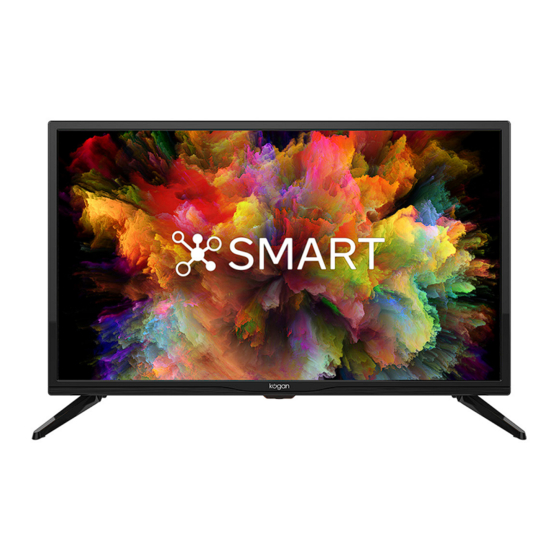

- Page 1 USER GUIDE 24” SMART LED TV SERIES 7 EH7500 (KALED24EH7500SVA)
-
Page 2: Table Of Contents
CONTENTS SAFETY AND WARNINGS Safety and warnings ......02 Settings ............. 11 Thank you for buying this Kogan product. Please read all safety instructions before using your TV. Picture menu ........11 WARNING Components .......... 04 Sound menu ........11 Never place a television set in an unstable location. - Page 3 SAFETY AND WARNINGS cont’d • Keep small accessories out of reach of children so they are not mistakenly swallowed. Refer to the table below as a guide to the symbols and warnings which may be on your TV. CAUTION: Connecting the power cord CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE Most appliances recommend they be placed upon a dedicated circuit;...
-
Page 4: Components
COMPONENTS A Kogan 24” Smart LED TV D AAA battery (x2) NOT INCLUDED B Remote control E Quick-start guide Antenna cable, broadband internet C Stand (x2) F Warranty card connection. -
Page 5: Product Overview
PRODUCT OVERVIEW Inputs Audio in Stereo (2.0) audio input. Usually paired with stereo audio inputs Composite (red and white cables), the single-wire video in composite cable provides video signal. Three cables (“Y,” “Pb” and “Pr”) provide a Component higher quality connection than the single- video in wire composite cable (“Y”) commonly used to hook up earlier AV equipment. -
Page 6: Assembly And Installation
ASSEMBLY AND INSTALLATION 3. Connecting AC adapter BEFORE YOU GET STARTED a. Connect the supplied AC adapter to the DC-in port at the back of the TV. Spread cushioning flat to lay the TV on. This will help to prevent damage. 1. -
Page 7: Remote Control
REMOTE CONTROL OVERVIEW Power to enter or exit standby mode Source displays the list of input Settings to open the system menu to open app homepage source channels Mute to toggle sound on/off Information displays the current to open app homepage 7 + V - to adjust the volume up program information 3 Number buttons, press to select... -
Page 8: Power Button
USING REMOTE CONTROL 6. Using remote control 5. Remote control assembly a. Open the battery compartment cover on the back side. Point the remote towards the sensor at the front b. Insert two 1.5V AAA size batteries, making sure to match the polarity of the TV (this may differ from the illustration). -
Page 9: First Time Setup
FIRST TIME SETUP When setup is complete, you will be able to access the Home page. When turning the TV on for the first time, the Setup Wizard screen will appear. Use the ▲, ▼ and OK buttons to navigate the following options. Language Select your menu language. -
Page 10: Basic Operation
BASIC OPERATION Selecting channels Colour buttons There are two ways to select channel: In some menus and apps, the remote control’s four colour buttons ( can be used. 1. Using number buttons followed by the button on the remote control to select channel directly. -
Page 11: Settings
SETTINGS PICTURE SOUND Sound mode Picture mode Choose from a selection of presets (standard, Choose from the following selection of presets, music, sport) or select ‘User’ mode to configure or select ‘User’ mode to configure your own your own custom settings. custom settings. -
Page 12: Setting Menu
SETTINGS (cont’d) SETTING LOCK Language The default password is 0-0-0-0 Select your preferred on-screen display (OSD) Lock system language. The feature can prevent unauthorized OSD Time operating the TV set, unless entering 4-digit Set the preferred mount of time for the OSD to password. -
Page 13: Pvr Option Menu
SETTINGS (cont’d) PVR OPTION TUNING PVR file system Auto tuning Open the submenu to adjust disk, partition The auto tuning function will search for and and formatting options, as well as Time Shift save all available free-to-air TV channels. After settings. -
Page 14: Network Menu
SETTINGS (cont’d) NETWORK ABOUT Connection type Netflix There are two ways to connect this TV to the Display current software version information for internet, either ‘Wi-Fi’ or ‘Ethernet’. Netflix app. WI-FI OPTIONS View End-User License Agreement • Auto scan: The TV will automatically Read and accept the EULA. -
Page 15: Pvr Mode
PVR MODE To stop the recording, press Stop and then to confirm when prompted. NOTE Schedule recording • Don’t connect or disconnect any USB device while in USB playback mode. Press the button to bring up the Electronic Program Guide. Use the •... -
Page 16: Media Playback
MEDIA PLAYBACK Playing recorded files Media playback controls There are two options for watching the programmes and clips you’ve recorded. Confirm PVR file system: After recording is complete, press the button and Navigation menu navigate to PVR Option, to find the Record List. Navigation Red colour Here you will find a complete list of your recordings. -
Page 17: Apps
Select “ ” to access second page of apps, checking the weather inspiring and entertaining. select “ ” to return. Apps listed here are for reference only, subject to change without notice. Please refer to Kogan support for further information. -
Page 18: Wall-Mount Installation
WALL MOUNTING c. Use a mounting bracket (A) as a guide to mark the positions for the four Wall mount kit not included. Steps below are provided as an optional holes on the wall with a pencil. alternative to the supplied base-mounts. d. -
Page 19: Specifications
SPECIFICATIONS Audio USB Media Playback Formats AVI, MP4, MOV, MPG, MKV, DAT, VOB, RMVB, TS, TRP, TP, MP3, WMA, WAV, M4A, AAC, Speakers 2 x 3W JPEG, MPO, PNG, BMP Connectivity Inputs Ethernet (RJ45) Composite (AV) HDMI 1.4a HDMI HDMI-ARC Yes | HDMI 3 Outputs HDMI-CEC... -
Page 20: Troubleshooting
• Check that MUTE hasn’t been turned • Try a different device connected to the same cable and port Picture rolls vertically • Perform a factory reset on your TV • Check all connections © Copyright 2020, Kogan.com – KALED24EH7500SVA UM 02-20...
