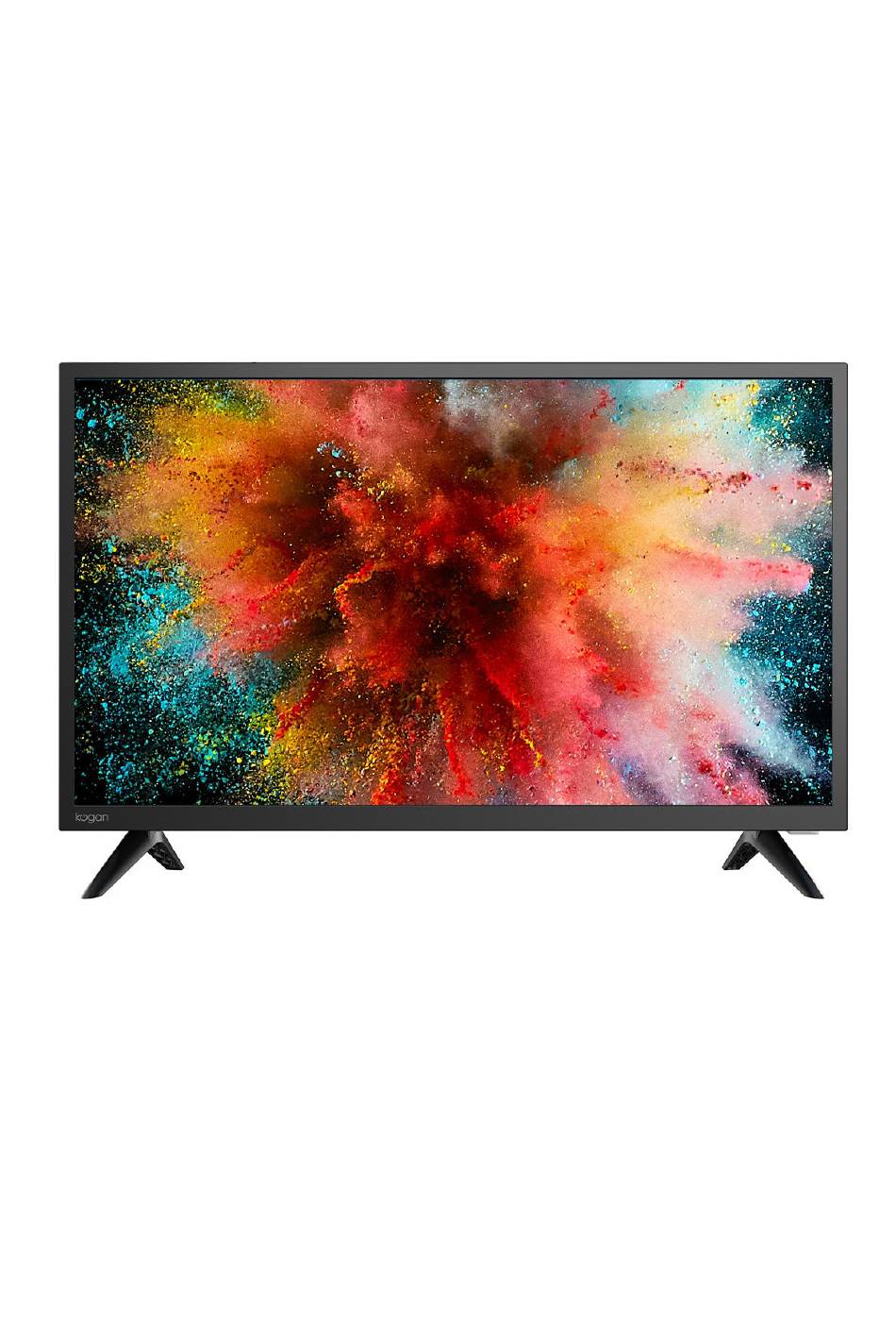

- Page 1 k<!>gan.com QUICK START GUIDE 24'' SMART HD LED TV SERIES 7, EH7510 (KALED24EH7510SPA)
- Page 3 COMPONENTS A Kogan 24" Smart E AAA battery (x2) LED TV F Quick-start guide B Remote control G Warranty card C Stand (x2) H Power adapter D St4 x15mm screw(x2)
-
Page 4: Remote Control Overview
REMOTE CONTROL OVERVIEW Switch between working and standby 1 Power(<!)) status. 2 Mute (iU() Turn on/off the sound. 3 Number keys Select the channel or input numbers. 4 LIST Show channel list. Turn on/off the associated audio. Open You Tube application. 6 DVouTube 7 SOURCE Show signal source menu. - Page 5 12 ◄ ,► ,.&., T Select items or adjust values. 13 OK Confirm the operation. 14 Return(-.:)) Return to previous menu page, or return to previous channel. 15 Exit(B) Exit OSD menu or application. 16Red key Special function keys. Green key Yellow key Blue key 17INFO...
-
Page 6: Assembly And Installation
ASSEMBLY AND INSTALLATION BEFORE YOU GET STARTED Spread cushioning flat to lay the TV on. This will help to prevent damage. 1. Stand assembly a. Put the machine flat first, distinguish left and right base and base installation front and back direction, then install the bases in the bottom of the machine back cover as arrow direction in figure. - Page 7 3. Connect to antenna a. Connect an antenna cable (not supplied) via the 'ANT(DVB-T)' input port at the back of the TV. b. Ensure the antenna cable is also connected to a working antenna, either via an antenna wall socket in your home, or directly. Antenna wall socket Antenna cable...
-
Page 8: First Time Setup
FIRST TIME SETUP Welcome When turning the TV on for the first time, the screen will appear. Use the .A., T, ◄ , ► and buttons to navigate the following options. Languageandlocation Select your menu language, and select your country/region from the list. - Page 9 Program scanning Tune the programs before watching the TV for the first time. Before scanning, please make sure that the antenna has been connected properly . Auto Search Press [ �B] key, Select Channel > Auto Tuning, Press [OK] key, then set up the Tune Type and Country according to actual needs (the default will be set for Australia) .
- Page 10 SETTINGS Menu operation description Press [ �B ] key to show the main menu on the screen: 1. Press [.6.]/[T] key to select a menu from Channel ,Picture, Sound, Network, System, Lock, Timer, Support. 2. Press [OK]/[ ►] key to enter the submenu. 3.
-
Page 11: Using Apps
USINGAPPS Press [ •] key, then press [ key to select an application and ◄ ]/[►] press [OK] key to enter. As to Youtube, prime video and Netflix, you can press the keys to use them. In [YouTube], [prime video] [NETFLIX] the standby mode, you can turn on the TV and use Netflix by pressing [NETFLIX]... -
Page 12: Basic Troubleshooting
• Make sure the program itself is For our full TV troubleshooting guide broadcast in colour and extended User Manual for this • Select the picture menu, then adjust TV, head online to help.kogan.com the colour and tint submenus Picture rolls vertically • Check all connections... - Page 13 NOTES...
- Page 14 This is a Quick Start Guide, and while we hope that this has given you the assistance needed for a simple set-up, a full user guide outlining all of this product's instructions and features can be found online at help.kogan.com ke>gan.com...
