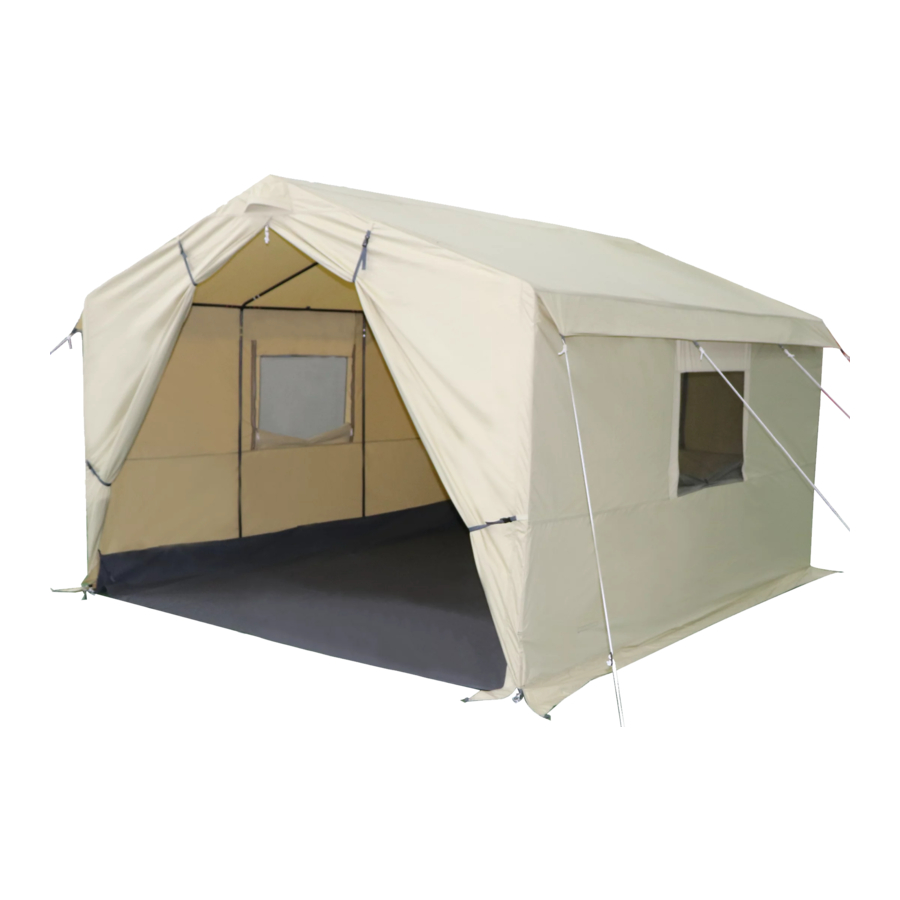

Ozark Trail WF-121090 - Wall Tent With Stove Jack Manual

FEATURES

QTY. DESCRIPTION PART NUMBER
FABRIC BODY:
1 Tent Body N/A
POLES:
9 Steel, chain-corded Roof Pole – black w/red taped RPOL-115BK
8 Steel, chain-corded Roof Gable Pole – black w/white taped RGPL-147BK
8 Steel, chain-corded Leg Pole – black w/yellow taped LPOL-159BK
CARRY BAG:
1 Carry Bag w/ wheels N/A
UNIVERSAL PARTS: (some attaches to fabric)
2 3 way hubs – for ends in middle roof pole 3WAY-ER
2 4 way hubs – for center in middle roof pole 4WAY-CR
2 3 way hubs – for front right / rear left shoulder corners 3 WAY C-1
2 3 way hubs – for front left / rear right shoulder corners 3 WAY C-2
4 4 way hubs – for center in side roof poles 4 WAY-CRS
1 Pole Bag N/A
1 Stake Bag N/A
8 Guy Ropes: φ6mm, 3.0m GROPE-3M-6
STAKES:
24 φ7mm steel stakes, length 25cm ST25CM-7MM

Review your parts list above to make sure all parts listed above have included in your package.

ASSEMBLY INSTRUCTIONS

THE RECREATIONAL PRODUCT REQUIRES TWO PEAOPLE TO ASSEMBLE.

  • Unless otherwise specified all instructions will be given assuming the assembler is facing the front opening of the tent.
  • Carefully fold out ypur poles, using caution to prevent snapping the shock-cording. Make sure each pole segment is 'seated' into the next section before flexible the pole during set-up. Sort POLES by type and length; refer to parts list descriptions.
  • Do not drop tent bag or pole bag. Do not bounce tent bag on its end to remove tent, as these actions may damage the shock-cord and/or ends.

STEP 1: Verify Package Contents
Verify package contents by emptying contents of bag(s) and confirming all parts are included and undamaged.
Tip: Do this at home before you leave on your trip.

STEP 2: Set Up the Tent

  1. Select a smooth level site and spread out your tent.
  2. Extend all of your poles and sort into groups by style i.e. roof poles, roof gable poles, leg poles. This will simplify the assembly process. ( see fig.
    Select a smooth level site and spread out your tent.
    ASSEMBLY INSTRUCTIONS - Step 1
  3. Lay out the Center Roof Pole and Side Roof Poles as shown below (see fig.2).
    1. Take 3 Roof Poles (RPOL-115BK) and connect them to the 4-way hubs (4WAY-CR) by matching the red hub to the red pole ends. Then connect the other side of the poles into the 3-way hubs (3WAY-ER), again matching the red hub to red pole end. All push pins should click into place.
    2. Similar to step(a), match the remaining red poles to the hubs (4 WAY-CRS). Then slide into the hubs (3 WAY C-1 / 3 WAY C-2) by matching the colors at the end of the pole.
      ASSEMBLY INSTRUCTIONS - Step 2
  4. Slide Roof Gable Pole (RGPL-147BK) into the corresponding hubs by matching the white hub to the white pole end and lock into place. Repeat with all other Roof Gable Poles.
  5. Slide the leg poles (LPOL-159BK) into the roof frame by matching the yellow pole ends into the corresponding yellow hubs.
    Tip: Please try to keep the push pins in the middle hole and use the upper and lower options to adjust the frame if necessary.
    ASSEMBLY INSTRUCTIONS - Step 3
  6. Put the tent body onto the frame. Position the pin-rings on base of tent into the pole end. Secure the tent by fastening the velcro to the frame.

STEP 3: Stake the tent

  1. Stake the tent by driving stake through the rings on base of tent.
  2. To secure guy lines, find the guy line plastic slider and look for the portion of the line opposite the knot. Pull this portion, forming a loop (works like a slip knot). Extend guy line to ground and stake.
  3. Stake the mud flap through the tri-angle rings.
    Tip: Stakes provided are for solid ground. Camping is sand? We suggest corkscrew style. Check favourite retailer for availability.

STEP 4: Add Accessories

  1. Attach the floor by inserting the pins into the leg poles. Fasten the buckle on each corner to straighten the walls. Use the Velcro on the wall to secure the floor.
  2. Hook organizers on the side roof pole.

    ASSEMBLY INSTRUCTIONS - Step 4
  3. Tie the guyrope loop to the central roof pole to hang camping light.
  4. Attach the LED light string with the plastic hooks to the O-rings sewn inside the tent, and put the Power Box into the pockets.

DISASSEMBLY INSTRUCTIONS

*Store all Poles and Stakes in their corresponding Bags to prevent any possible tearing or damage to the fabric piece(s).

STEP 1: Remove the Stakes
Carefully remove stakes by pulling out the hook ends. Do not pull or tug at the stake loops sewn onto the webbing pocket. Remove excess soil from the stakes and store them in their bag.

STEP 2: Take Down the Tent

  1. Take down the organizer and remove the floor
  2. Remove the leg poles from the pin-rings, and undo ties securing leg poles. Take down the tent body from the frame.
  3. Disengage poles from hubs.
  4. Carefully fold poles and store them in their bag.

STEP 3: Fold the Tent
Fold tent into rectangular shape the width of pole bag. Place organizer, floor on tent body. Lay pole bag at one end of tent and roll tightly together, slowly squeezing air out as you go.
