Ozark Trail WF-151284P Owner's Manual

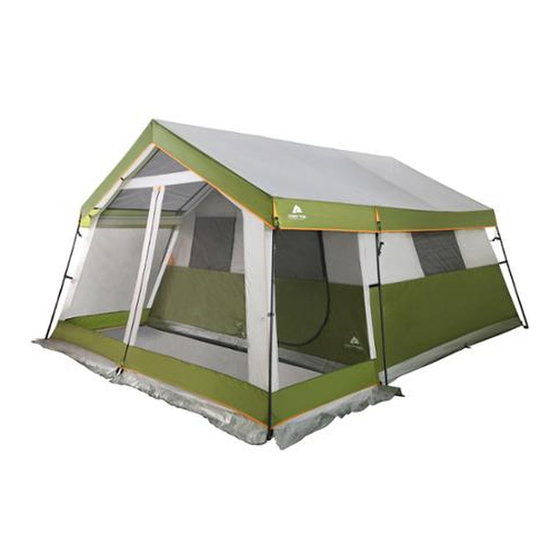

MODEL # WF-151284P 8 Person Family Cabin Tent
with Screen Porch
FABRIC BODY:
1 Rainfly N/A
1 Tent Body N/A
POLES:
6 Steel, Leg Poles with White Tape SPOL-L154.2BK
6 Steel, Gable Poles with Blue Tape SPOL-G169BK
2 Steel, Gable Poles with U Clip on Both Ends SPOL-G169UBK
2 Steel, Side Eave Poles with Red Tape SPOL-S398.4BK
1 Steel, Center Ridge Pole with Red Tape SPOL-R398.4BK
HUBS (attached to the poles):
2 3-way Hubs for Center Ridge Pole Ends TPM-120-1
1 3-way Hub for Center Ridge Pole Center TPM-120-2
2 3-way Hubs for Eave Pole Corners 3086-3#
(Front left and Back right corners)
2 3-way Hubs for Eave Pole Corners 3086-4#
(Front right and Back left corners)
1 3-way Hubs for Left Eave Pole Center 3086-1#
1 3-way Hubs for Right Eave Pole Center 3086-2#
CARRY BAG:
1 Wheeled Carry Bag N/A
UNIVERSAL PARTS:
1 Hanging Shelf N/A
1 Pole Bag N/A
1 Stake Bag N/A
6 Guy Lines GROP-3MBW
STAKES:
17 Steel Stakes STS-180
STEP 1:
All hubs(Qty 9) are pre-assembled to the Ridge and Eave Poles
as shown in the diagram below.
TIP:For ease of future setup, DO NOT remove hubs from poles
when dismantling and packing the tent.
Steel Gable Poles (with clip on both ends)
FOR QUICKER SETUP, USE TWO PEOPLE
A Extend all poles and sort into groups by style(ie.Ridge Pole, Eave
Poles,Gable Poles,etc). This will simplify the assembly process.
White sticker on Eave and Ridge Poles must go over screen room.
STEP 2:
OPTION"AA"
OPTION "AA": Drape Rainfly over roof frame before attaching
Steel Leg Poles.
B Slide the Steel Leg Pole into the corresponding hubs. The white
tape on the pole should match the white taped side of the hub.
Twist the pole until you hear a click, indicating the pole is properly
secured to the hub.
C Place the Tent Body underneath the tent frame.
D Lift the pole and insert the pin-ring into the bottom of the Steel
Leg Pole(Total of 6).
