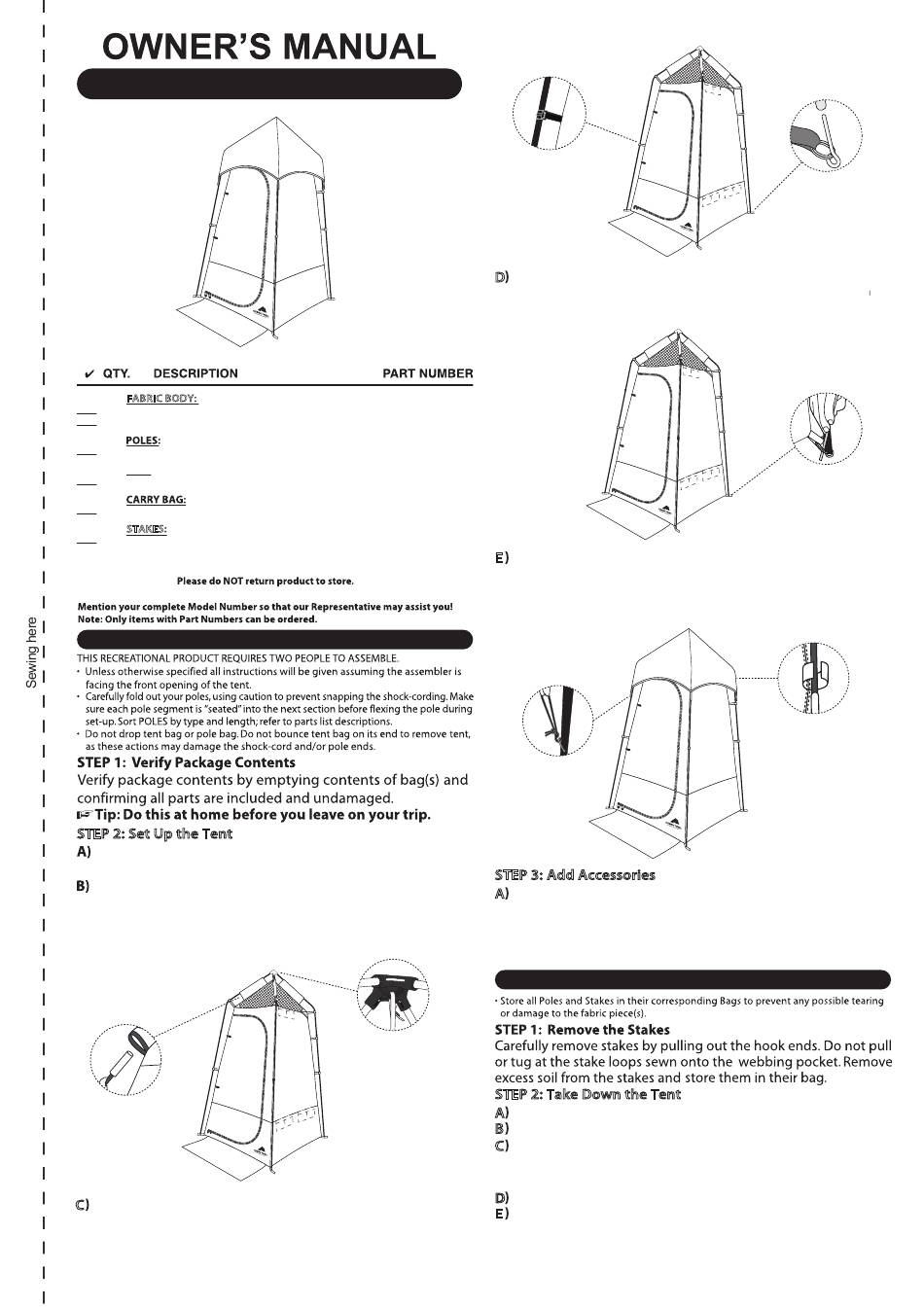

Ozark Trail WF-4486 Owner's Manual

MODEL# WF-4486 LIGHTED SHOWER TENT
4ft x 4ft x 86in/1.22m x 1.22m x 2.18m
Fabric BODY:
1 Tent Body
Tent Fly
1
Steel, chain-corded Leg Pole
4
HUB:
1 4 way hub – for tent roof
1 Carry Bag

STAKES:

Steel stake
4
Review your parts list above to make sure all parts listed above have included in your package.
Call our toll free number:1-877-579-1550 Monday-Friday 8:30 am - 5:30 pm EST

ASSEMBLY INSTRUCTIONS

STEP 2: Set Up the Tent

Select a smooth level site to spread out the tent and extend
all the poles.
Remove the fabric pocket on the connector; insert the 4
leg poles through the pole sleeves and into the pre-
attached center hub. Make sure the metal springs lock into
place on the plastic hub.
To raise the shower tent, place the bottom of the leg poles onto
C
the pins attached to the stake loop along the perimeter of the
tent; and clip the pole hooks along the walls to the frame.
Pull out the tent floor evenly and tightly. It should be flat
D
on the ground. Hammer the stakes into the ground at a
45 degree angle.
N/A
N/A
LPOL-244BK
4WAY-RF
STS-180
Attach the fly to the shower tent by attaching the plastic S-
E
hooks at the fly corners to the D-rings on the leg poles, and
fasten the hook-and-loop tabs sewn on the fly around the leg
poles.
STEP 3: Add Accessories
Attach the accessories (gear loft, storage pocket, and organizer)
A
to the loops inside the tent with hooks, and put the remote
controlled LED light into the gear loft. The tent can support a
five gallon shower bag.

DISASSEMBLY INSTRUCTIONS

STEP 2: Take Down the Tent

Take down all the accessories, LED light, gear loft, pockets etc.
A
Detach the fly from the tent.
B
C Remove the leg poles from the pin-rings, undo hooks securing
leg poles, and disengage the poles from the hub. Take down
the tent body from the poles.
Fold the poles and store them into the pole bag.
D
Put the protective fabric pocket on the hub. Fold the tent into a
E
rectangular shape equal to the width of pole bag. Place the
organizers and mud mat on tent body. Lay pole bag at one end
of tent and roll tightly together, then pack into the carry bag.
