Page 4
无线麦克风 TS-3380 功能示意 接收机正面板: ① 功能按键:用于通道选择、频率调整、对频、扫频等工作; ② 液晶显示:显示对频工作状态、频率、接收信号电平等信息; ③ IR红外对频窗口:配合“SET”键,将频率参数传至发射机; ④ 电源开关:控制机内电源供应。 ③ ① ③ ① ② ② ④ 接收机背面板: ① 天线:连接天线; ② 音频平衡输出:采用“XLR”型插座,提供各通道独立信号输出; ③ 混合音频输出:将两路的音频信号混合成一路输出; ④ 电源插座:连接DC 12V电源至输入插座;插座的中心电极连接正电压。 ① ② ③ ④ ② ①...
Page 5
无线麦克风 TS-3380 LCD液晶屏幕显示: ① RF指示:显示接收信号强度; ② AF指示:显示声音信号强弱; ③ FREQUENCY:显示当前工作频率; ④ CH:显示默认频道; ⑤ MUTE:显示为静音状态。 ④ ⑤ ① ② ③ ① 手持发射器: ① 网头及音头模组:网头用以保护将声音转换成电信号的 音头模组,并能防止麦克风放置在台面时滚动; ② 显示屏:显示工作频率、电池电量等信息; ② ③ 电源开关:用于开启/关闭发射机电源; ③ POWER POWER ④ 麦克风管体:管端装配网头、音头模组、管体内装电池、 ⑤ 发射电路板、尾部内置发射天线; ④ ⑤ IR红外对频窗口:配合接收机 “SET”键,将频率参数 ⑥...

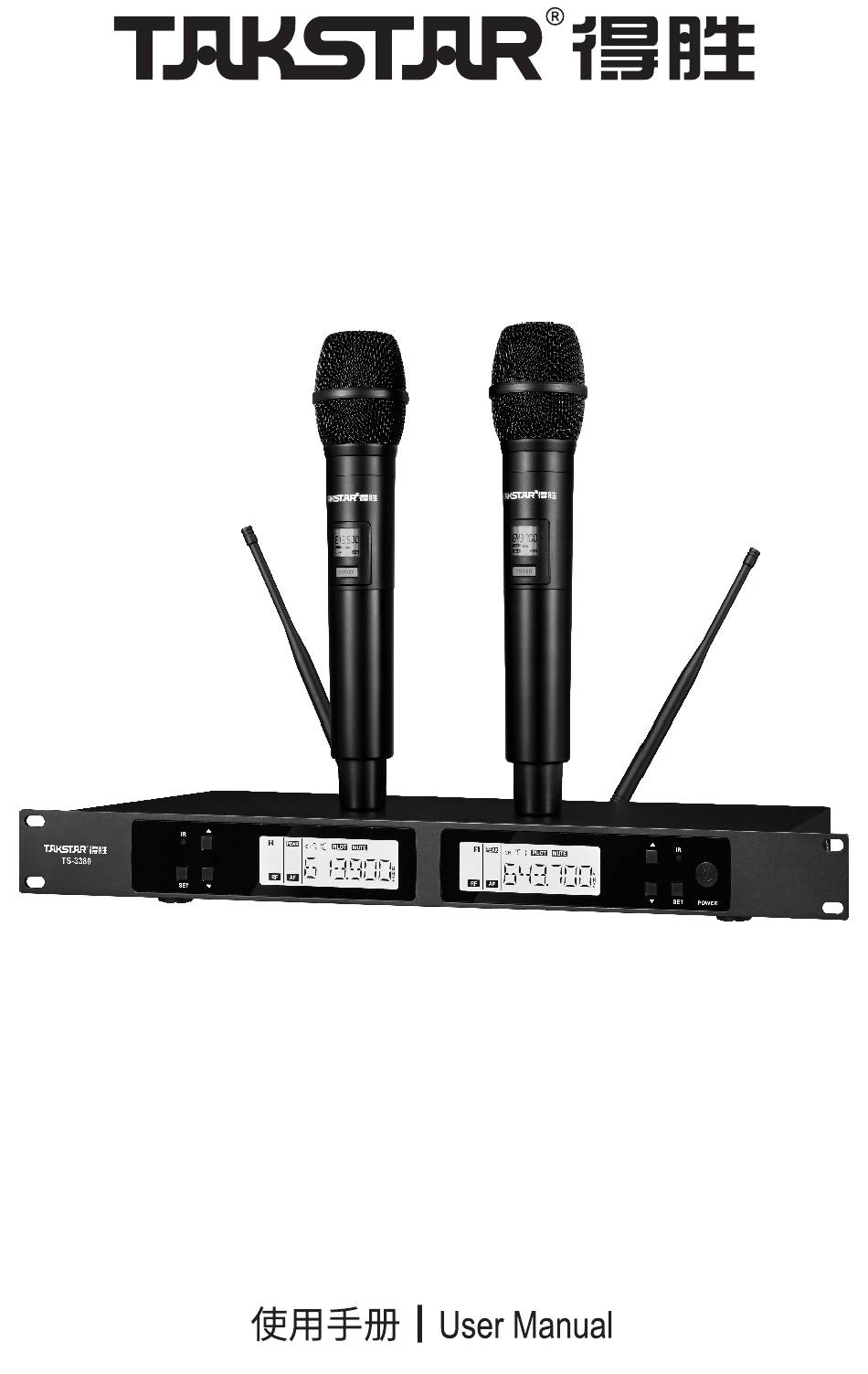

Wireless Microphone TS-3380 Preface Dear Customer, Thank you for purchasing Takstar TS-3380 Wireless Microphone. In order to better understand and use the product, please read this manual carefully. If you have any questions or suggestions, please contact our local dealer. Features High-performance UHF integrated circuit, multiple frequency channels selectable, •...
Wireless Microphone TS-3380 Function Descriptions Receiver Front Panel ① Function Button: used to select channel, adjust/sync/scan frequency, etc. ② LCD Display: displays sync status, frequency, received signal level, etc. ③ IR Sync Window: sends frequency parameters to transmitter, used in conjunction with the [SET] button.
Wireless Microphone TS-3380 LCD Display ① RF Indicator: displays the received signal strength. ② AF Indicator: displays the audio signal strength. ③ FREQUENCY: displays the operating frequency. ④ CH: displays the default channel. ⑤ MUTE: muted status ④ ⑤ ①...
Page 13
Wireless Microphone TS-3380 Operation Instructions 1. Adjust Frequency Manually On home screen, short press [SET] button twice, then short press [ ] or [▼] of the corresponding ▲ channel to adjust its operating frequency to desired, and stop pressing until the frequency stops blinking.
Wireless Microphone TS-3380 Safety Instructions To avoid electric shock, overheat, fire, radiation, explosion, mechanical risk and injury or property loss due to improper use, please read and observe the following items before use: 1. Please check if the power of the connected equipment matches with that of this product before operation.
