Sanyo DWM-2500 Quick Manual page 3

4A

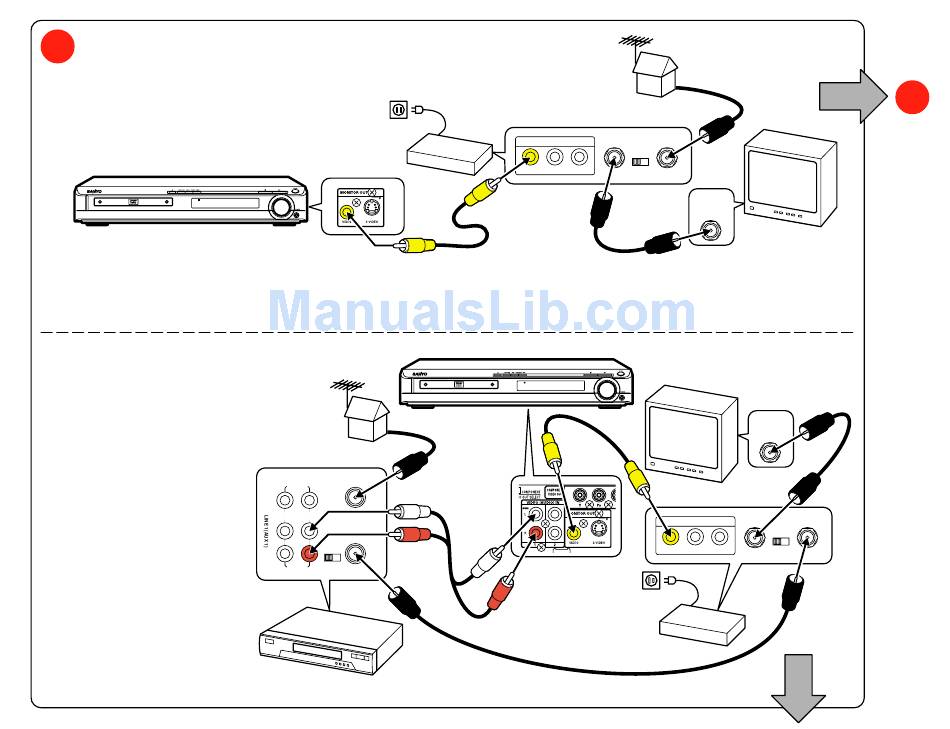

Hook up (Using RF Modulator, not supplied)
Unit, TV and RF Modulator connections
Unit, VCR, TV and RF Modulator connections
Set the channel number CH3 (or CH4) on all
TV, VCR and RF Modulator, whichever is not
used for regular broadcasts in your area.
To AC 120V, 60Hz
TV/CATV Antenna Cable
VHF/UHF
FROM ANT.
VIDEO
IN
IN OUT
L
L
TO TV
3 4
R R OUT
AUDIO CHANNEL
HiFi Stereo VCR
TV/CATV Antenna Cable
RF Modulator
A/V INPUT JACKS
TO TV ANT. IN
CHANNEL
VIDEO R-AUDIO-L 3 4
Set the channel number CH3 (or CH4) on both
TV and RF Modulator, whichever is not used
for regular broadcasts in your area.
A/V INPUT JACKS
VIDEO
To AC 120V, 60Hz
RF Modulator
TV
VHF/UHF
ANTENNA
IN
TV
VHF/UHF
ANTENNA
IN
TO TV ANT. IN
CHANNEL
R-AUDIO-L 3 4
5A
