INSTRUCTION MANUAL VCC-6695P
VCC-6584DN
Color CCD Camera
About this manual
• Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for later reference.
• This manual covers two models. Any difference between the two models is
indicated when necessary.
Depending on the conditions of use, installation and environment,
please be sure to make the appropriate settings and adjustments.
If you need help with installation and/or settings, please consult
your dealer or an Authorized Sanyo Service Center.

SPECIFICATIONS

Scanning system : VCC-6695P: PAL standard 625 lines, 50 fields/sec.
VCC-6584DN: NTSC standard 525 lines, 60 fields/sec.
Image sensor : 1/3" interline transfer method CCD
Number of effective pixels : VCC-6695P: 752 (H) x 582 (V)
VCC-6584DN: 768 (H) x 494 (V)
Horizontal resolution : 540 TV lines, typical
Minimum illumination
(approx.) : 0.25 lx (F1.2, B/W mode), 0.35 lx (F1.2, color mode)
: 1.0 V(p-p)/75 Ω, composite, BNC
Video output
Video S/N ratio : More than 48 dB (AGC off: More than 50 dB)
Backlight compensation : OFF, Multi-spot metering (High/Normal), Center zone
metering
White balance : ATW/Manual
Light control : Optical auto iris lens/Electronic iris (indoor use)
Lens mount : CS mount
Flange back : 12.5 mm ±0.5 mm/0.5 in. ±0.02 in. adjustment
Sync system : Internal sync/Line lock
Day/Night mode : ON/OFF
Operating Environment : Temperature: -10°C – +50°C (14°F – 122°F)
Humidity: less than 90 % RH (no condensation)
Power supply : VCC-6695P: 24 V AC ±10%, 50 Hz/ 12 – 15 V DC
VCC-6584DN: 24 V AC ±10%, 60 Hz/ 12 – 15 V DC
Power consumption
(approx.) : 3.6 W (with auto-iris lens)
Weight (approx.) : 260 g/9.2 oz. (without lens)
Appearance and specifications are subject to change without prior notice
or obligations.

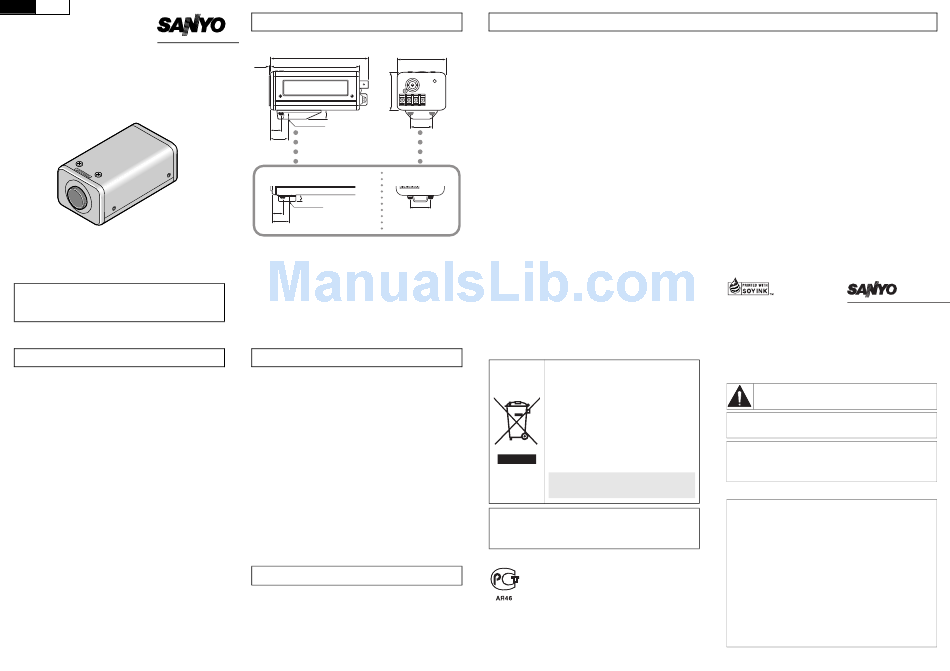

DIMENSIONS
<VCC-6695P>
108 (4.3)
1.3 56 (2.2)
(0.05)
99 (3.9)
45
(1.8)
11 (0.4)
16
28 (1.1)
(0.6) 1/4"-20 UNC
25 (1.0)
<VCC-6584DN>
11 (0.4)
16
1/4"–20 UNC
(0.6)
28 (1.1)
26 (1.0)
Unit: mm (inch)

TROUBLESHOOTING

Before sending the camera out for repair, check the items below.
If the problem persists after checking these items, consult your
dealer or an Authorized Sanyo Service Center.
■ If no image appears
• Is the coaxial cable attached securely?
• Are the power and voltage normal?
• Has the iris of the lens been adjusted correctly (with the LEVEL
dial)?
• Is there adequate illumination?
■ If the image is unclear
• Is the monitor adjusted correctly?
• Is the flange-back position correctly set?
• Is the lens in focus?
• Is the lens clean?
Dirt or fingerprints on the lens can adversely affect the image.
Gently wipe any dirt or fingerprints off the lens with a soft cloth or
lens cleaning paper and cleaning fluid (commercially available).
SERVICE
The camera is a precision instrument. Handle it carefully and always
follow the safety precautions. If the camera requires service, never
try to repair it yourself or open the casing.
For servicing, maintenance, or repairs, consult your dealer or an
Authorized Sanyo Service Center.
PRECAUTIONS
■ In case of a problem
Do not use the unit if smoke or a strange odor comes from the unit,
or if it seems not to function correctly. Turn off the power
immediately and disconnect the power cord, and then consult your
dealer or an Authorized Sanyo Service Center.
■ Do not open or modify
Do not open the cabinet, as it may be dangerous and cause damage
to the unit. For repairs, consult your dealer or an Authorized Sanyo
Service Center.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substance get inside
the unit. If used with a foreign object inside, it could cause a fire, a
short-circuit or damage. Be careful to protect the unit from rain, sea
water, etc. If water or liquid gets inside the unit, turn off the power
immediately and disconnect the power cord, and then consult your
dealer or an Authorized Sanyo Service Center.
■ Be careful when handling the unit
To prevent damage, do not drop the unit or subject it to strong shock
or vibration.
■ Do not install this unit close to magnetic fields
The magnetic fields may result in unstable operation.
■ Protect from humidity and dust
To prevent damage, do not install the unit where there is greasy
smoke or steam, where the humidity may get too high, or where
there is a lot of dust.
For EU Users
Please note:
Your SANYO product is designed and manufactured
with high quality materials and components which
can be recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life, should be disposed
of separately from your household waste.
Please dispose of this equipment at your local
community waste collection/recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.
Please help us to conserve the environment we live
in!
This symbol mark and recycle system are
applied only to EU countries and not applied
to countries in other areas of the world.
SANYO FISHER Sales (Europe) GmbH
Stahlgruberring 4, D-81829 München, Germany
SANYO Electric Co., Ltd.
1-1, Sanyo-cho, Daito City, Osaka 574-8534, Japan
For Russian Users
This product certified by official certification company
which is authorized by Russian Federation.
ДЛЯ ПОЛЬЗОВАТЕЛЕЙ РОССИЯ
Данная продукция сертифицирована официальным
органом по сертификации Российской Федерации.
■ Protect from high temperatures
Do not install close to stoves, or other heat sources, such as
spotlights, etc., or where it could be subject to direct sunlight, as this
could cause deformation, discoloration or other damages.
Be careful when installing close to the ceiling, in a kitchen or boiler
room, as the temperature may rise to high levels.
■ Cleaning
• Dirt can be removed from the cabinet by wiping it with a soft cloth.
To remove stains, wipe with a soft cloth moistened with a soft
detergent solution and wrung dry, then dry by wiping with a soft
cloth.
• Do not use benzine, thinner or other chemical products on the
cabinet, as this may cause deformation and paint peeling. Before
using a chemical cloth, make sure to read all accompanying
instructions. Make sure that no plastic or rubber material comes
into contact with the cabinet for a long period of time, as this may
cause damage or paint peeling.
1AC6P1P3335-- SANYO Electric Co., Ltd.
L5CP2/XE, US (0508KP-HS) Printed in China
