Summary of Contents for HEIDENHAIN EIB 5000

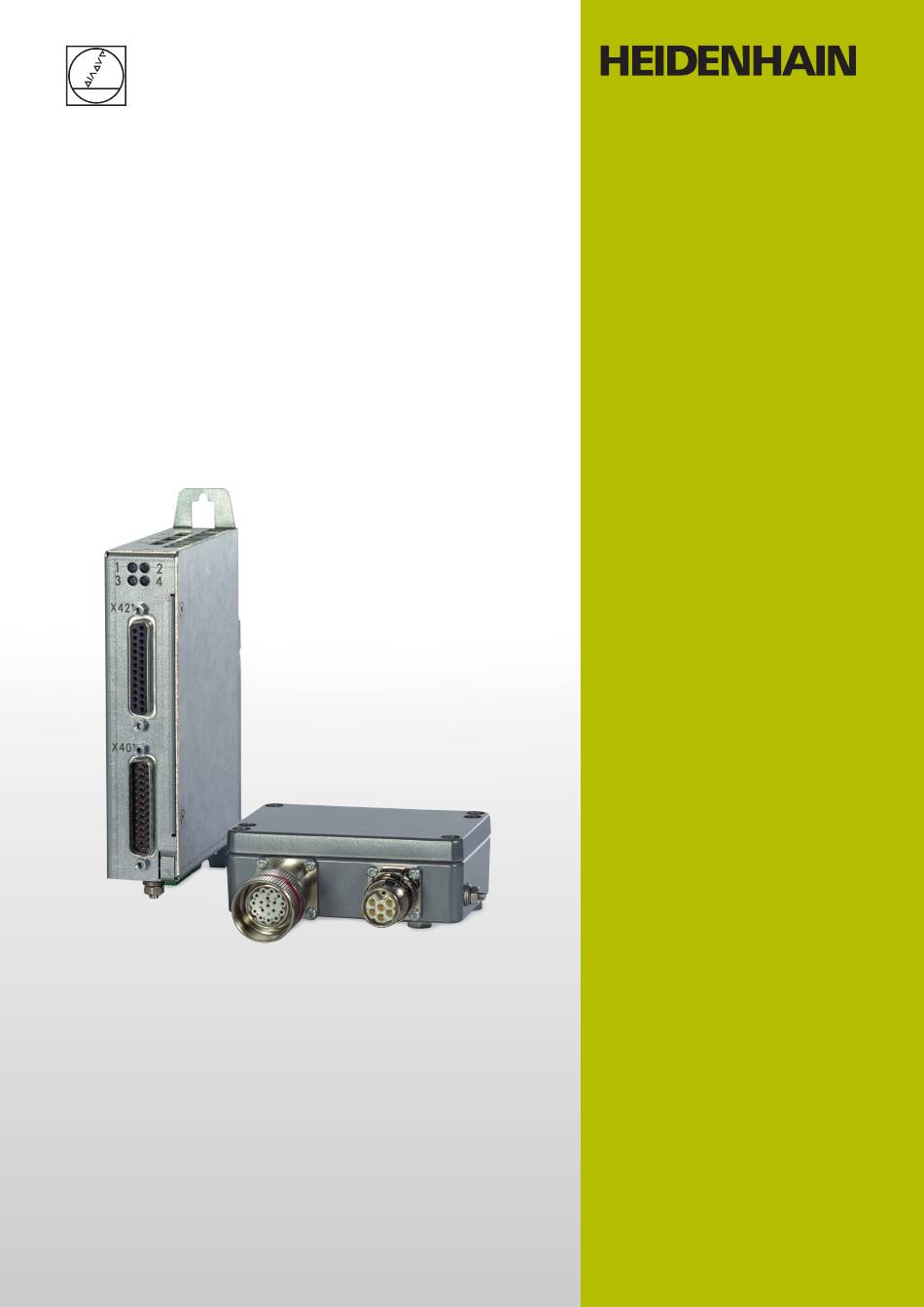

- Page 1 Installation Instructions EIB 5000 08/2022...
-
Page 2: Table Of Contents
Contents Contents Fundamentals........................Safety............................. Transport and storage......................Mounting..........................Installation..........................Servicing and maintenance....................What to do if ......................... Removal and disposal......................HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... - Page 3 Transport and storage......................Unpacking........................... Items supplied and accessories....................3.2.1 Items supplied............................3.2.2 Accessories............................In case of damage in transit....................... Repackaging and storage......................3.4.1 Repackaging the device........................3.4.2 Storage of the device........................... HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
- Page 4 5.10 Connecting the shield of the sensor................... 5.11 DIP switch..........................5.12 LED display of EIB 5181......................5.13 Cascading the EIB 5181......................Servicing and maintenance....................Cleaning............................. Maintenance schedule........................ What to do if ......................... Removal and disposal......................Removal............................Disposal............................HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
-
Page 5: Fundamentals
Fundamentals... -
Page 6: About These Instructions
In addition to the information provided in the following, the general electrical information in the Interfaces of HEIDENHAIN Encoders brochure from HEIDENHAIN applies to the connection of the encoder. www.heidenhain.com/documentation Enter the document ID 1078628... -
Page 7: Notes On Reading The Documentation
If the part numbers and indexes match, the documentation is valid. If the ID numbers do not match so that the documentation is not valid, you will find the current documentation at www.heidenhain.com. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 8: Storage And Distribution Of The Documentation
NOTICE Notice indicates danger to material or data. If you do not follow the avoidance instructions, the hazard could result in property damage. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 9: Symbols And Fonts Used For Marking Text
Identifies an item of a list Example: TTL interface EnDat interface Identifies menus, displays and buttons Bold Example: Tap Shut down The operating system shuts down. Turn the power switch off HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 10: Safety
This requires that the respective control unit connected to the product evaluate the temperature or optionally available switching outputs for warnings and errors The devices of the EIB 5000 series serve as accessories for encoders from HEIDENHAIN and must be used only in commercial applications and in an... -
Page 11: Obligations Of The Operating Company
If there is no documentation at hand, it must be obtained from the manufacturers concerned. The specific safety precautions required for the individual activities to be performed on the product are indicated in the respective sections of these instructions. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 12: Electrical Safety And Voltage Supply
The product must be supplied only with PELV (extra low voltage with protective separation from supply circuits; see General electrical information in the HEIDENHAIN brochure "Interfaces of HEIDENHAIN Encoders") at the control input. The temperature sensor inputs meet the requirements for protective separation from the PELV supply voltage and the switching outputs in accordance with DIN EN 61800-5-1 and DIN EN 61010-1. - Page 13 Have the manufacturer exchange defective electrical components immediately Regularly inspect all connected cables and all connections on the product. Defects, such as loose connections or scorched cables, must be removed immediately HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
-
Page 14: Transport And Storage
Contact the distributor or machine manufacturer for replacement parts If damage occurred during transit: Keep the packaging materials for inspection Contact HEIDENHAIN or the machine manufacturer This applies also if damage occurred to requested replacement parts during transit. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 15: Repackaging And Storage
Ship the product without accessories, without encoders and without peripherals 3.4.2 Storage of the device Package the device as described above Observe the specified ambient conditions Inspect the device for damage after any transport or longer storage times HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 16: Mounting
The cross section for connecting the protective conductor should be at least twice the cross section of the lines for the temperature measurement; a minimum cross section of 2.5 mm² is required, however. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 17: Eib 52Xx
Figure 3: Mounting the EIB 52xx Use two M4x16 screws to fasten the EIB 52xx Connect the functional earth to the appropriate M5 thread of the housing. When mounting the cables, ensure that the connection is tight. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 18: Installation
The type of connections for encoders may vary depending on the product version. WARNING Danger of electric shock! This may result in serious personal injury or death. Never perform any work on the product while it is under power HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 19: Product Overview
2x M4x16 DIN 912 / ISO 4762 EIB 5281 (X1, X2, X3) EIB 5282 (X1, X2, X3, X4) 36±0.2 14.5 38.5±1 10.5 17±1 64±1 17±1 2x M4x16 DIN 912 / ISO 4762 HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... - Page 20 Installation | Product overview EIB 5181 S1 S2 S3 X108 X136 3.2 (2x) X421 X108 X136 X401 10.5 100 ±1 107 .2 ±2 HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
-
Page 21: Pin Layout
R– C– D– DATA Temp– X136 Temp+ Temp– Temp+ Temp– Temp+ Temp– Sensor 1 Sensor 1 Sensor 2 Sensor 2 Sensor 3 Sensor 3 X108 Shield Temp Shield Temp Shield Temp HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... - Page 22 EIB 521x & EIB 5291S Temp– Temp+ Temp+ Temp– Temp+ Temp– Sensor 1 Sensor 1 Sensor 2 Sensor 2 Sensor 3 Sensor 3 +V (U Sensor DATA DATA CLOCK CLOCK Sensor 0 V (U HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
- Page 23 Installation | Pin layout X3 (EIB 5211, EIB 5212) Sensor Sensor DATA DATA 0 V (U CLOCK CLOCK +V (U X3 (EIB 5291S) 0 V HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
- Page 24 Temp– Temp+ Temp+ Temp– Temp+ Temp– Sensor 1 Sensor 1 Sensor 2 Sensor 2 Sensor 3 Sensor 3 Sensor Sensor +V (U CLOCK CLOCK 0 V (U B– DATA A– DATA HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
-
Page 25: Connecting The Temperature Sensors
Temperature sensor 3 = PTC triplet Comply with the pin layout Further information: "EIB 5181", Page 21 Further information: "EIB 521x & EIB 5291S", Page 22 Further information: "EIB 528x", Page 24 HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 26: Connecting The Encoder
Route the cable based on the mounting variant Connect the control unit to the respective connection EIB 5181: X421; 25-pin D-sub (female) EIB 521x & EIB 5291S: X3; 8-pin M12 (male) EIB 528x: X3; 17-pin M23 (male) HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 27: Connecting The Switching Output (Optional)
The cross section for connecting the protective conductor should be at least twice the cross section of the lines for the temperature measurement; a minimum cross section of 2.5 mm² is required, however. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 28: Connecting The Shield Of The Sensor
Setting the DIP switches Observe the following setting parameters Set the switches to ON or OFF The DIP switches are located on the top of the EIB 5181. Note the arrangement of the DIP switches. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... - Page 29 No sensor Sensor type 3 S2.4 S2.3 S2.2 Function KTY84-130 PT1000 PTC triplet Reserved Reserved KTY84-130 with a common reference No sensor Emulation of the temperature output S2.5 Function KTY84-130 PT1000 HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
-
Page 30: Led Display Of Eib 5181
The LED is continuously red: error at the sensor input Sensor status LED Function Sensor connection Status of sensor 1 X136 1/2 Status of sensor 2 X136 3/4 Status of sensor 3 X136 5/6 Status of sensor 4 X401 HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 31: Cascading The Eib 5181
Please note that, for the cascading of the preceding EIBs, the temperature output must be “PT1000” (S2.5). Figure 5: Cascading the EIB 51xx EIB 5211: Cascading is not possible for the EIB 5211. EIB 5281: For cascading, please contact HEIDENHAIN. HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 32: Servicing And Maintenance
Never use abrasive or aggressive cleaners, and never use strong detergents or solvents Do not use sharp-edged objects to remove persistent contamination Use only a cloth dampened with water and a mild detergent for cleaning the exterior surfaces HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 33: Maintenance Schedule
Contact HEIDENHAIN service provided on the product agency must be checked for readability Electrical connections Annually Replace defective cables. must be function Contact HEIDENHAIN service tested and checked for agency if required damage HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... -
Page 34: What To Do If
Check the sensor and sensor Sensor connection; exchange, if necessary Temp = 240.0 °C – Invalid configura- Contact HEIDENHAIN tion Note: PTC/PTC triplet: no detection possible because terminating resistance is also high-impedance HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... - Page 35 Check the sensor and sensor Sensor connection; exchange, if necessary Temp = -300 °C – Invalid configura- Contact HEIDENHAIN tion Note: PTC/PTC triplet: no detection possible because terminating resistance is also high-impedance HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022...
-
Page 36: Removal And Disposal
Forward the device to recycling in accordance with the applicable local disposal regulations If you have any questions about the disposal of the device, please contact a HEIDENHAIN service agency HEIDENHAIN | EIB 5000 | Installation Instructions | 09/2022... - Page 37 DR. JOHANNES HEIDENHAIN GmbH Dr.-Johannes-Heidenhain-Straße 5 83301 Traunreut, Germany +49 8669 31-0 +49 8669 32-5061 info@heidenhain.de Technical support +49 8669 32-1000 Measuring systems +49 8669 31-3104 service.ms-support@heidenhain.de NC support +49 8669 31-3101 service.nc-support@heidenhain.de NC programming ...
