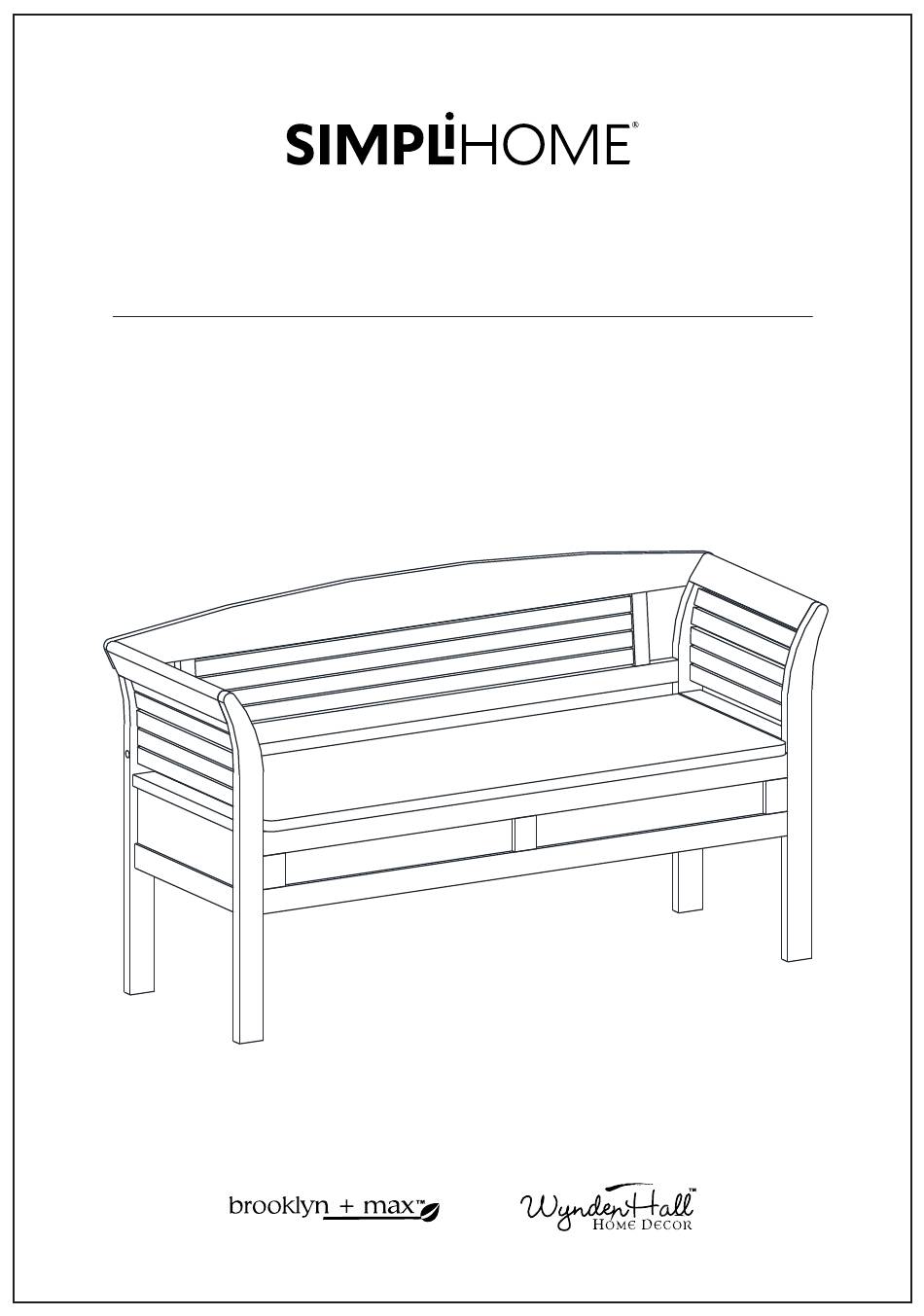

- Page 1 Arlington / Raleigh / Patterson Entryway Storage Bench Model # AXCARL13-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCARL13-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 SEAT DIVIDER QTY 1 QTY 1 FRONT BACKREST QTY 1 QTY 1 BACK BOTTOM PANEL QTY 1 QTY 1...
- Page 8 Pre-Assembly Information Model # AXCARL13-WH Hardware Description ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY SCREW M6 X 40 mm M6 X 30 mm ALLEN KEY M6 x 30 mm QTY 8 QTY 4 QTY 1 QTY 2 WOOD DOWEL PHILLIPS SCREW PHILLIPS SCREW LID SUPPORT...
- Page 9 Components - Key Diagram Components - Key Diagram Model # AXCARL13-WH Model # AXCARL13-WH...
- Page 10 Assembly Model # AXCARL13-WH Step 1 Hinge Small pre-drilled holes 1. Insert Dowel 6 into Divider C . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align drilled holes on bottom of Back F with Dowel 6 on Divider C . ( Note: please pay close attention to the location of the 2 small guide holes which accommodate the lid support.
- Page 11 Assembly Model # AXCARL13-WH Step 2 1. Attach Bottom Panel G to Divider C & Back F by sliding on the gap between Divider C & the long rail on Back F .
- Page 12 Assembly Model # AXCARL13-WH Step 3 NOTE: The screwdriver is not included in the hardware pack. 1. Insert Dowel 6 into Divider C . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 13 Assembly Model # AXCARL13-WH Step 4 1. Insert 2 Dowels 6 into each Side AL , AR at specified location. 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
- Page 14 Assembly Model # AXCARL13-WH Step 5 NOTE: The screwdriver is not included in the hardware pack. 1. Use Phillips screwdriver to attach Phillips Screw Round Head 11 into drilled holes on Bottom Panel G .
- Page 15 Assembly Model # AXCARL13-WH Step 6 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Seat B to 3 hinges on Back F using Phillips Screws 7 ( using guide holes underneath of Seat ). 2. Use phillips screwdriver to tighten Screws. Do not over-tighten. Step 7 1.
- Page 16 Assembly Model # AXCARL13-WH Step 8 1. Attach Backrest E to back of Sides AL , AR using Allen Key Bolt 2 through drilled holes from Backrest E . 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten.
- Page 17 Assembly Model # AXCARL13-WH Step 9 1. Attach Backrest E to back of Side AL , AR using Allen Key Bolts 10 into drilled holes on Side AL , AR . 2. Insert Cross Nuts 10 into drilled holes in Backrest E with the slot facing out. Use a flathead Screwdriver to turn it to align with the Bolts 10 .
