OPERATION MANUAL
MODEL 60-5800T

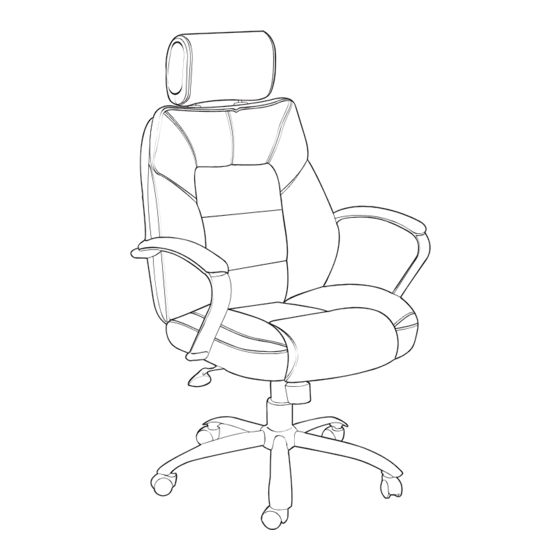

COMMODORE II BIG & TALL LEATHER EXECUTIVE CHAIR
CUSTOMER SERVICE
For fastest service, please visit our website at
www.comfortproducts.net/support
e-mail: customerservice@comfortproducts.net
Keep your sales receipt as documentation of your ownership.
Advertisement
Related Manuals for Comfort 60-5800T
Summary of Contents for Comfort 60-5800T
- Page 1 OPERATION MANUAL MODEL 60-5800T COMMODORE II BIG & TALL LEATHER EXECUTIVE CHAIR CUSTOMER SERVICE For fastest service, please visit our website at www.comfortproducts.net/support e-mail: customerservice@comfortproducts.net Keep your sales receipt as documentation of your ownership.
- Page 2 CONTENTS EXTRA SPARE HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. PARTS LIST HARDWARE KIT STOCK# 61-SCRWST5800T PART DESCRIPTION STOCK# QTY. PART DESCRIPTION QTY. Back Cushion 61-5800TA Screwcaps M8 x 25mm Screw Seat Cushion 61-5800TB M8 x 35mm Screw Armrest (left) 61-ARM5800TL M8 x 70mm Screw...
- Page 3 ASSEMBLY INSTRUCTION (60-5800T) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 1 STEP 3 Insert casters (G) into holes of star base (F). Snap the Place the back cushion (A) on a flat, clean surface such as a 2-piece base cover (I) over center of base as shown. Insert table.
- Page 4 ASSEMBLY AND FUNCTION INSTRUCTION (60-5800T) TO ADJUST TILT TENSION STEP 5 Reach under the front center of the chair seat and grasp the Turn assembled chair frame upright. Position the center round black tension knob. To loosen the tilt mechanism, hole in seat plate (D) over the gas lift (E).
- Page 5 FREQUENTLY ASKED QUESTIONS • HOW DO I ADJUST THE SEAT HEIGHT? While seated, lean forward, lifting your body weight from the seat. Reach underneath the right side of chair and locate the handle. Lift the handle up slowly to allow the chair to rise to the desired height. To lower seat height, lift the handle slowly while seated. •...
- Page 6 Comfort Products does not guarantee matching color, grain, texture or dye lots. This warranty does not cover the cost of transportation or labor. In no event shall Comfort Products be liable in either tort or contract for any loss or direct, special, incidental, consequential or exemplary damages.
- Page 7 STAR BASE (part# 61-BASE5800) CASTERS tension knob (part#61-CAST5800) SHORT BOLT M8x25mm (screw kit #61-SCRWSET5800T) MEDIUM BOLT M8x35mm (screw kit #61-SCRWSET5800T) LONG ARMREST BOLT Metal“L”bar M8x70mm (screw kit #61-SCRWSET5800T) SCREWCAP (screw kit #61-SCRWSET5800T) ALLEN WRENCH...
