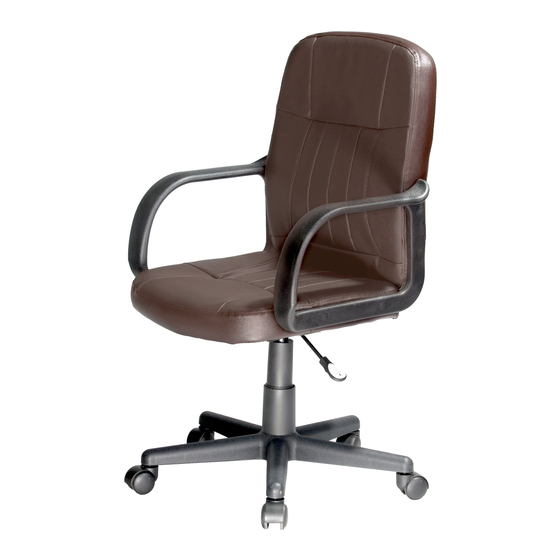

- Page 1 OPERATION MANUAL MODEL 60-5607M08 SUPPLIER CODE: HZ-60-5607M08 BROWN MIDBACK LEATHER CHAIR CUSTOMER SERVICE For fastest service, please visit our website at www.comfortproducts.net/support e-mail: customerservice@comfortproducts.net Keep your sales receipt as documentation of your ownership.
-
Page 2: Parts List
CONTENTS EXTRA SPARE HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. PARTS LIST HARDWARE KIT STOCK# 61-SCRWSETB PART DESCRIPTION STOCK# QTY. PART DESCRIPTION QTY. Screwcaps Back Cushion 61-560708A Washer M6 x 20mm Screw Seat Cushion 61-560708B M6 x 25mm Screw Allen Wrench Armrest (left) 61-ARMOL... - Page 3 ASSEMBLY INSTRUCTION (60-5607M08) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 1 STEP 2 Insert casters (G) into holes of star base (F). Insert gas lift Align seat plate (D) over pre-drilled holes under seat (E) into center hole of star base (F). Place gas lift cover (H) cushion (B).
- Page 4 FUNCTION INSTRUCTION (60-5607M08) TO ADJUST SEAT HEIGHT 360 DEGREE SWIVEL While seated, lean forward, lifting your body weight from 360 degree seat swivel the seat. Reach underneath the right side of chair and locate the handle. Lift the handle up slowly to allow the chair to rise to the desired height.
-
Page 5: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS • WHERE DO I FIND THE MODEL NUMBER AND SUPPLIER CODE FOR MY CHAIR? The chair model number and supplier code is located on a sticker underneath the seat cushion, and on the front page of your instruction manual. •... -
Page 6: Limited Warranty
Comfort Products does not guarantee matching color, grain, texture or dye lots. This warranty does not cover the cost of transportation or labor. In no event shall Comfort Products be liable in either tort or contract for any loss or direct, special, incidental, consequential or exemplary damages. - Page 7 REMOVING A 5-STAR BASE FROM YOUR OFFICE CHAIR (NOTE: YOUR PARTS MAY DIFFER SLIGHTLY FROM THOSE SHOWN BELOW) FIGURE A TOOLS NEEDED: (1) Newspaper or cardboard for work area, (2) Silicone lubricant (such as WD40),(3) Rubber Mallet INSTRUCTIONS: 1.) Spread newspaper or cardboard on your work surface. 2.) Turn your chair on its side.
