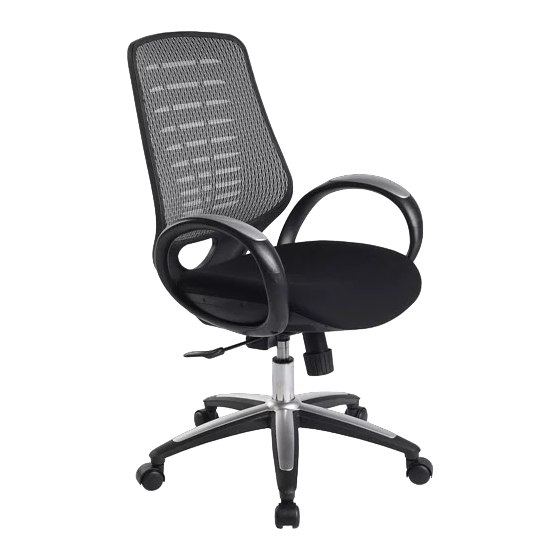

- Page 1 OPERATION MANUAL MODEL 60-552204 SUPPLIER CODE: FH-60-552204 VIROQUE MESH CHAIR WITH ADJUSTABLE BACK ANGLE CUSTOMER SERVICE For fastest service, please visit our website at www.comfortproducts.net/support Keep your sales receipt as documentation of your ownership.
- Page 2 CONTENTS EXTRA SPARE HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. PARTS LIST HARDWARE KIT STOCK# 61-SCRWSET5522 PART DESCRIPTION STOCK# QTY. PART DESCRIPTION QTY. Back Cushion 61-552204A M6 x 30mm Screw M6 x 20mm Screw Seat Cushion 61-552204B Armrests (left) 61-ARM552204L...
- Page 3 ASSEMBLY INSTRUCTION (60-552204) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 2 STEP 1 Attach seat plate (D) to bottom of seat cushion (B) using Attach the left and right armrests (C) to bottom of seat four screws (I) and washers (K) as shown. cushion (B) using six screws (H) and allen wrench (N) as shown.
- Page 4 FUNCTION INSTRUCTION (60-552204) TO ADJUST SEAT HEIGHT TO ADJUST BACK ANGLE While seated, lean forward, lifting your body weight from While seated, reach underneath the left side of chair and the seat. Reach underneath the right side of chair and locate the handle.
- Page 5 FREQUENTLY ASKED QUESTIONS • WHERE DO I FIND THE MODEL NUMBER AND SUPPLIER CODE FOR MY CHAIR? The chair model number and supplier code is located on a sticker underneath the seat cushion, and on the front page of your instruction manual. •...
- Page 6 Comfort Products does not guarantee matching color, grain, texture or dye lots. This warranty does not cover the cost of transportation or labor. In no event shall Comfort Products be liable in either tort or contract for any loss or direct, special, incidental, consequential or exemplary damages.
- Page 7 REMOVING A 5-STAR BASE FROM YOUR OFFICE CHAIR (NOTE: YOUR PARTS MAY DIFFER SLIGHTLY FROM THOSE SHOWN BELOW) FIGURE A TOOLS NEEDED: (1) Newspaper or cardboard for work area, (2) Silicone lubricant (such as WD40),(3) Rubber Mallet INSTRUCTIONS: 1.) Spread newspaper or cardboard on your work surface. 2.) Turn your chair on its side.
