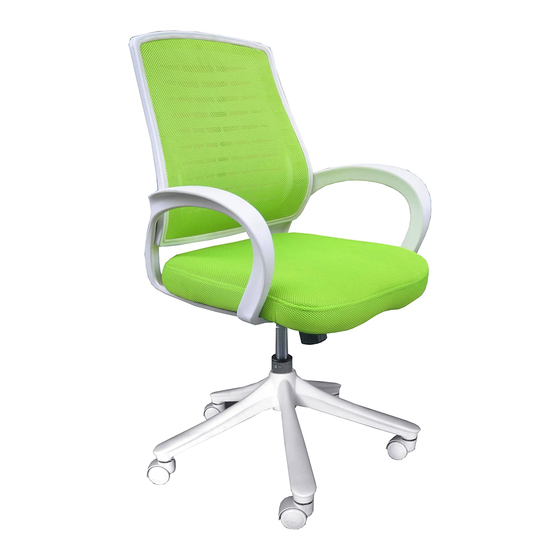

- Page 1 OPERATION MANUAL MODEL 60-51840006 SUPPLIER CODE: FH-60-51840006 IONA APPLE GREEN MESH CHAIR CUSTOMER SERVICE For fastest service, please visit our website at www.comfortproducts.net/support Keep your sales receipt as documentation of your ownership.
-
Page 2: Parts List
CONTENTS EXTRA SPARE HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. PARTS LIST HARDWARE KIT STOCK# 61-SCRWSET5184 PART DESCRIPTION STOCK# QTY. PART DESCRIPTION QTY. Back Cushion 61-51840006A M6 x 25mm Screw M6 x 30mm Screw Seat Cushion 61-51840006B M6 x 35mm Screw Armrest (left) -
Page 3: Assembly Instruction
ASSEMBLY INSTRUCTION (60-51840006) DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED STEP 1 STEP 2 Attach the left and right armrests (C) to back cushion (A) Attach seat cushion (B) to armrests (C) using four screws using four screws (I) and allen wrench (K) as shown. (J) as shown. -
Page 4: Function Instruction
FUNCTION INSTRUCTION (60-51840006) TO ADJUST SEAT HEIGHT TO OPERATE TILT LOCKOUT While seated, lean forward, lifting your body weight from While seated, reach underneath the right side of chair and the seat. Reach underneath the right side of chair and locate the handle. -
Page 5: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS • WHERE DO I FIND THE MODEL NUMBER AND SUPPLIER CODE FOR MY CHAIR? The chair model number and supplier code is located on a sticker underneath the seat cushion, and on the front page of your instruction manual. •... -
Page 6: Safety And Maintenance
Comfort Products does not guarantee matching color, grain, texture or dye lots. This warranty does not cover the cost of transportation or labor. In no event shall Comfort Products be liable in either tort or contract for any loss or direct, special, incidental, consequential or exemplary damages. - Page 7 REMOVING A 5-STAR BASE FROM YOUR OFFICE CHAIR (NOTE: YOUR PARTS MAY DIFFER SLIGHTLY FROM THOSE SHOWN BELOW) FIGURE A TOOLS NEEDED: (1) Newspaper or cardboard for work area, (2) Silicone lubricant (such as WD40),(3) Rubber Mallet INSTRUCTIONS: 1.) Spread newspaper or cardboard on your work surface. 2.) Turn your chair on its side.
