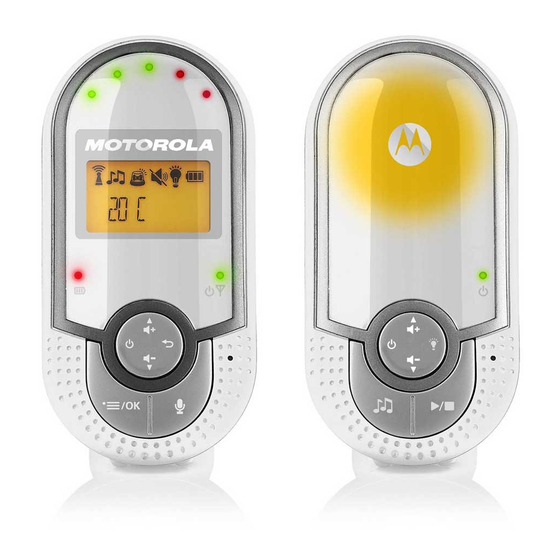

Motorola MBP16 Quick Start Manual

MODEL: MBP16
QUICK START GUIDE
For a full explanation of all features and instructions, please refer to the User's Guide.
1. Setting up your digital baby monitor
A. Baby unit power supply
Insert the small plug of the
power adapter into the side
DC JACK
of the baby unit, as shown.
DC PLUG
Connect the other end of
the power adapter to the
mains socket / power outlet.
C. Belt clip on parent unit and baby unit
B. Parent unit battery installation
Battery JACK
Battery PLUG
The parent and baby units come
with belt clip mode.
You can convert into support
stand mode by lifting up the belt
clip and rotating by half turn.
Turn the belt clip so that it is in the
hanging position.
Slide off the battery compartment
cover.
Insert the supplied rechargeable
batteries, and fit the battery pack into
the compartment, as shown.
Reattach the battery compartment
cover.
Insert the small plug of the power
adapter into the side of the parent unit.
Connect the other end of the power
adapter to the mains socket / power
outlet.
The Charging Indicator comes on.
