Summary of Contents for Cypress Hills MARANA AXCCMAR12

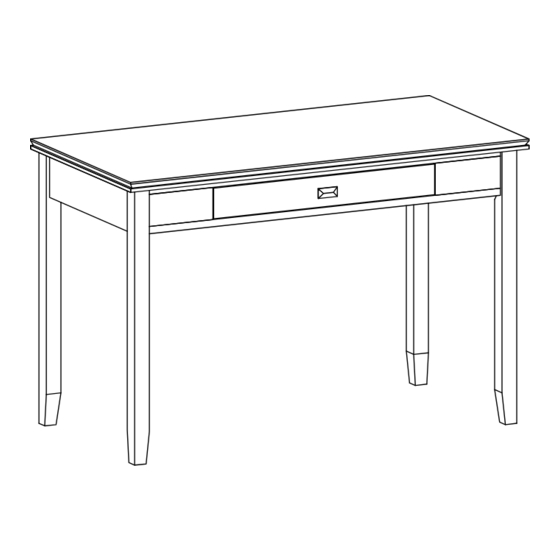

- Page 1 ASSEMBLY INSTRUCTIONS MARANA DESK MODEL # AXCCMAR12...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: 1-800-667-8992 PLEASE ENSURE TO HAVE THE COLLECTION NAME AND DESCRIPTION FROM THE PACKAGING OR INSTRUCTION BOOKLET...
- Page 3 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
- Page 4 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
- Page 5 PRE-ASSEMBLY INFORMATION MODEL # AXCCMAR12 PART DESCRIPTION QTY 1 QTY 4 HARDWARE DESCRIPTION ALLEN KEY BOLT: M6 X 50mm - QTY 8 ALLEN KEY QTY 8 SETS QTY 1 Required - Flathead screwdriver HANDLE M4 X 45mm Phillips screwdriver QTY 1 SET Not Included NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-800-667-8992.
- Page 6 COMPONENTS-KEY DIAGRAM MODEL # AXCCMAR12...
- Page 7 ASSEMBLY MODEL # AXCCMAR12 STEP-1 1. Attach Legs B to the Top A . 2. Use 8 Allen Key Bolts, Lock Washers and Washers 1 to fix part A and B . 3. Use Allen Key 2 to tighten Bolts. Do not over-tighten.
- Page 8 ASSEMBLY MODEL # AXCCMAR12 STEP-2 1. Use phillips screwdriver to attach Handle 3 to Top A . Note: Levelers on bottom of legs can be adjusted if floor is uneven.
