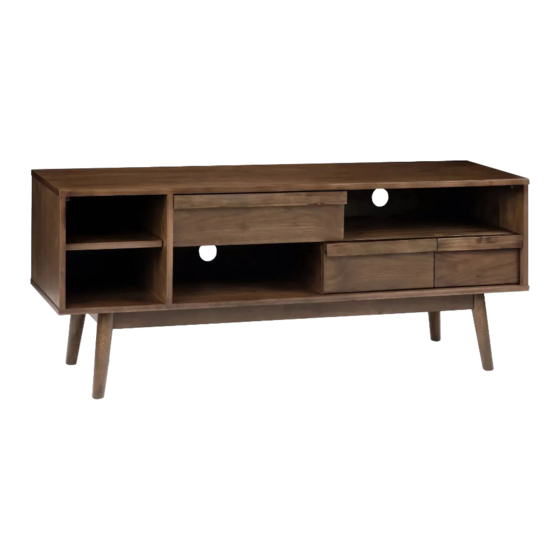

- Page 1 ASSEMBLY INSTRUCTIONS PRESLEY TV STAND MODEL # AXCPRES06...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: 1-800-667-8992 PLEASE ENSURE TO HAVE THE COLLECTION NAME AND DESCRIPTION FROM THE PACKAGING OR INSTRUCTION BOOKLET...
- Page 3 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 5: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 6: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCPRES06 PART DESCRIPTION SHELF LEG (L&R Same) QTY 1 QTY 1 QTY 4 HARDWARE DESCRIPTION WASHER LOCK WASHER ALLEN KEY BOLT M8 x 60 mm Ø19 / Ø8 x 1 mm Ø12 / Ø8 x 1.5 mm QTY 8 QTY 8 QTY 8 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1 M4 X 25mm - QTY 1... - Page 7 COMPONENTS-KEY DIAGRAM MODEL # AXCPRES06...
- Page 8 ASSEMBLY MODEL # AXCPRES06 STEP-1 1. Attach Legs B to Top A using eight Allen Key Bolts 1 , eight Lock Washers 2 , and eight Washers 3 through guide holes. 2. Use Allen Key 4 to tighten Bolts. Do not over-tighten.
- Page 9 ASSEMBLY MODEL # AXCPRES06 STEP-2 shelf support anti - tipping shelf level 1 shelf level 2 shelf level 3 1. Use four Shelf Supports 5 for Shelf C in desired location. 2. Two Shelf Supports 5 may be used on back top of Shelf C as a tipping restraint. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
- Page 10 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-3 NOTE: The screwdriver is not included in the hardware pack.
- Page 11 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
