ION ROBOT
®
Robot Vacuum for United States only
RV700 SERIES 3 OWNER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ION ROBOT RV700 Series and is the answer not in the manual?

Questions and answers

glenn strand
January 21, 2025

there is a growling noise when model rv 700 travels

1 comments:
Mr. Anderson
May 14, 2025

A growling noise when the Shark ROBOT RV700 Series travels could be caused by obstructions or debris caught in the wheels or brushroll. Check the wheels and brushroll for anything stuck or wrapped around them, and remove it. Also, press down on the wheels and rotate them to ensure they move freely.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Shark ION ROBOT RV700 Series

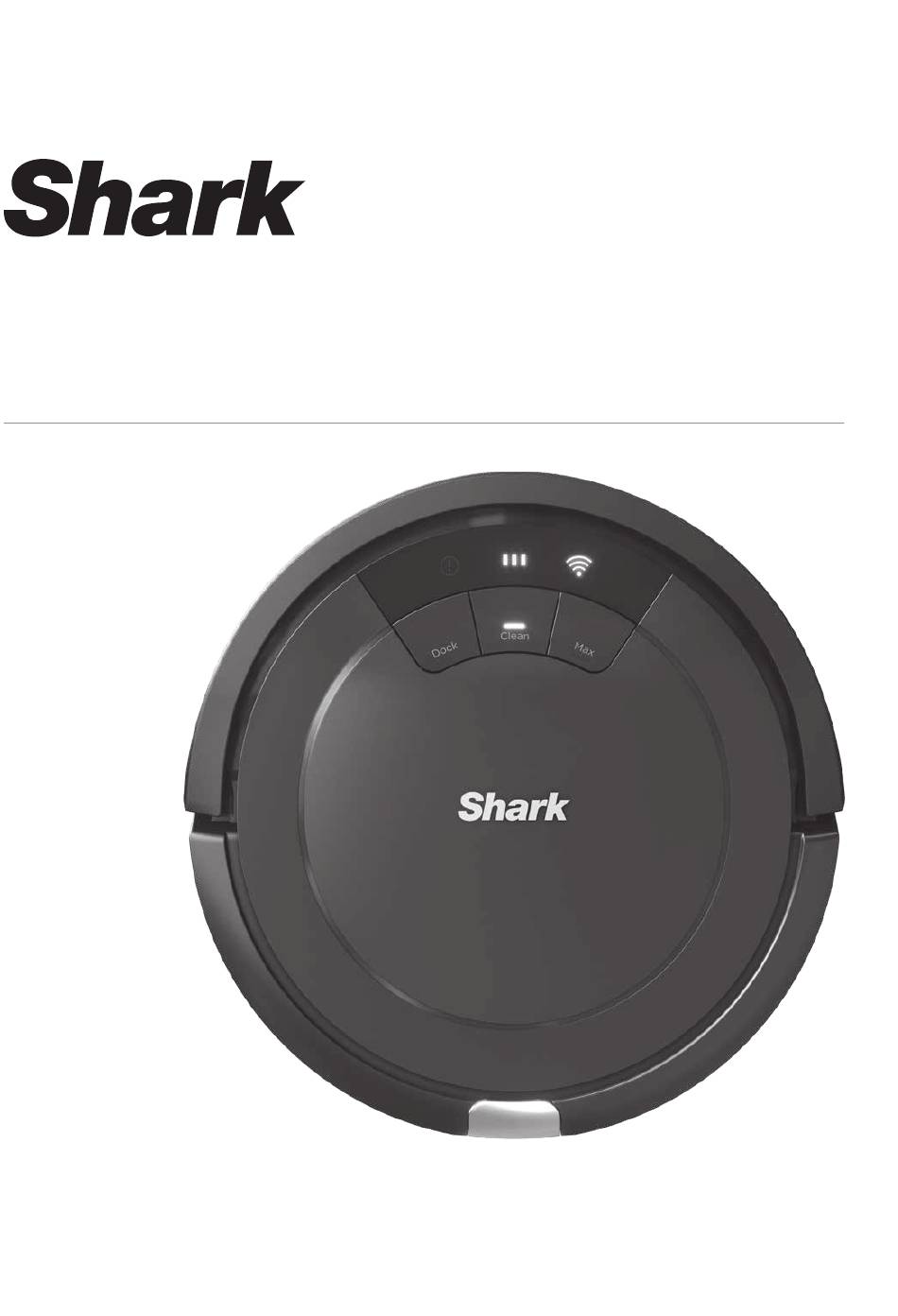

  • Page 1 ION ROBOT ® Robot Vacuum for United States only RV700 SERIES 3 OWNER'S GUIDE...
  • Page 2: Important Safety Instructions

    If a runner, rug or carpet e) Smoking or burning objects (hot supervision. 27. Use ONLY the Shark® charging dock edge that is less than eight inches from coals, cigarette butts, or matches) XDOCKRV750 and use only battery...
  • Page 3 ABOUT THE SHARK ION ROBOT® ABOUT THE SHARK ION ROBOT® With Auto-Sense® Navigation, your robot uses an array of sensors to navigate around walls, furniture legs, and other obstacles while it cleans. The robot may gently bump into obstructions or linger in one spot, and Charge Indicator Lights it may not cover every area in a single cleaning.
  • Page 4: Preparing For Use

    INSTALLING THE SIDE BRUSHES CHARGING Snap the 2 color-coded side brushes onto the IMPORTANT: The Shark ION Robot has a pre-installed rechargeable battery. Battery must be fully charged matching colored pegs on the bottom of the robot. before using. To charge, the Power button on the side of the robot...
  • Page 5: Charge Indicator Lights

    CHARGING THE SHARK ION ROBOT® USING THE SHARK ION ROBOT® BUTTONS AND INDICATOR LIGHTS CHARGE INDICATOR LIGHTS CLEAN BUTTON Press to begin a cleaning In Use  session. Press again to stop. Full Charge Nearly Full Mid Charge Low Charge While...
  • Page 6: Emptying The Dust Bin

    USING THE SHARK ION ROBOT ® MAINTENANCE USING THE SHARKCLEAN® APP AND VOICE CONTROLS CAUTION: Turn off power before performing any maintenance. The SharkClean app will guide you through easy setup of your robot. Control the unit remotely: • Schedule cleaning times for up to 7 days a week.
  • Page 7: Maintenance

    MAINTENANCE MAINTENANCE CLEANING THE FILTER CLEANING THE MULTI-SURFACE BRUSHROLL CLEAN FILTER EVERY WEEK. THE BRUSHROLL NEEDS OCCASIONAL MAINTENANCE. REPLACE FILTERS REGULARLY OR AS NEEDED. See sharkaccessories.com for replacement filters. REPLACE BRUSHROLL EVERY 6 to 12 MONTHS, OR WHEN VISIBLY WORN. See sharkaccessories.com for replacement parts.
  • Page 8: Cleaning The Wheels

    MAINTENANCE MAINTENANCE CLEANING SENSORS AND CHARGING PADS CLEANING THE WHEELS CLEAN SENSORS AND CHARGING PADS PERIODICALLY AS NEEDED. With a dry cloth or cleaning brush, gently dust off REMOVE AND CLEAN FRONT WHEEL EVERY WEEK. REPLACE FRONT WHEEL EVERY 12 MONTHS. the sensors and pads located on the bottom of the robot.
  • Page 9: Troubleshooting

    MAINTENANCE MAINTENANCE REPLACING THE BATTERY TROUBLESHOOTING If any error lights are illuminated or flashing on your Shark Ion Robot®, see the error code chart below: ERROR CODE SOLUTION Power may be turned off or battery may need charging. Turn power ALL LED LIGHTS are off switch to On position.
  • Page 10: Description Of Other Rights And Limitations

    END-USER LICENSE AGREEMENT FOR SHARKNINJA SOFTWARE END-USER LICENSE AGREEMENT FOR SHARKNINJA SOFTWARE IMPORTANT: PLEASE READ THE TERMS AND CONDITIONS OF THIS LICENSE AGREEMENT CAREFULLY 5.6 You will not use the Ayla Application Libraries or Ayla Embedded Software to attempt to gain BEFORE CONTINUING WITH THIS PROGRAM INSTALL OR USE OF THIS PRODUCT: SharkNinja Operating unauthorized access to or use of the systems/services of SharkNinja’s other licensors;...
  • Page 11: One (1) Year Limited Warranty

    REGISTER YOUR PURCHASE BATTERY REMOVAL AND DISPOSAL This product uses a battery. When the battery no longer holds a charge, it should be removed from the vacuum and registeryourshark.com recycled. DO NOT incinerate or compost the battery. When your lithium-ion battery needs to be replaced, dispose ONE (1) YEAR LIMITED WARRANTY of it or recycle it in accordance with local ordinances or regulations.
  • Page 12 NOTES NOTES �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� �������������������������������������������������������������������������������� ��������������������������������������������������������������������������������...
  • Page 13: Fcc Warnings

    This product may be covered by one or more U.S. patents. See sharkninja.com/patents for more information. © 2022 SharkNinja Operating LLC. AUTO-SENSE , BOTBOUNDARY, SHARK, SHARKCLEAN, and SHARK ION ROBOT are registered trademarks of SharkNinja Operating LLC. RBRC is a trademark of Rechargeable Battery Recycling Corporation. AMAZON, ALEXA, and all related logos are trademarks of Amazon.com, Inc.
