TP-Link Omada OC200 Installation Manual

OC200
Installation Guide
Omada Cloud Controller
7106508054 REV1.0.0
Hardware Overview

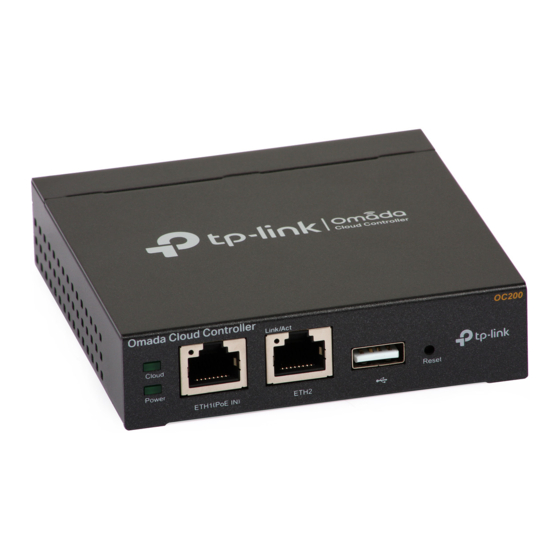

Front Panel
Cloud LED
Power LED
ETH1 (PoE IN) ETH2 USB 2.0 Port Reset
Cloud LED
On: The device is bound to a TP-Link ID.
Slow Flashing: The device is connected to cloud but not
bound to a TP-Link ID.
Quick Flashing: The device is being reset to its factory default
settings.
Off: The device is disconnected from cloud.
Power LED
On: Working normally.
Off: Working abnormally.
ETH1 (PoE IN) Port
Connected to a standard 802.3af or 802.3at PoE device, such
as a TP-Link PoE switch, to transmit data and gain power
supply simultaneously.
Thank you for purchasing OC200, the Omada Cloud Controller.
This Installation Guide is designed to guide you through
installation.
Package Contents
OC200
Ethernet Cable
ETH2 Port
Connected to a device to transmit data.
USB 2.0 Port
Connected to a storage device to automatically back up the
configuration file and database. This function is only available
when OC200 is powered by a PoE device.
Reset Button
After the device is initialized, press and hold the button for 5
seconds to reset the device to its factory default settings.
Rear Panel
Kensington Security Slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent
the device from being stolen.
Micro USB
Connected to a USB Power Source (5V DC, minimum 1A) to
gain power supply if PoE is not available.
Typical Network Topology
A DHCP server (typically a router) with DHCP function enabled
is required to assign IP addresses to the EAPs and OC200 in
your local network.
OC200
Installation Guide
Omada Cloud Controller
Installation Guide
Management Device
Feet
Power On
Via Standard PoE Device
Connect an Ethernet cable from the ETH1 (PoE IN) port of
OC200 to a standard 802.3af or 802.3at PoE device, such as
TP-Link PoE switch.
Via USB Power Source
Connect a USB cable (not provided) from the micro USB port
of OC200 to the USB Power Source (5V DC, minimum 1A).
Micro USB
The Cloud LED flashes three times when initialization is
completed.
Router
OC200 Switch
EAP225 EAP245
EAP225-Outdoor
