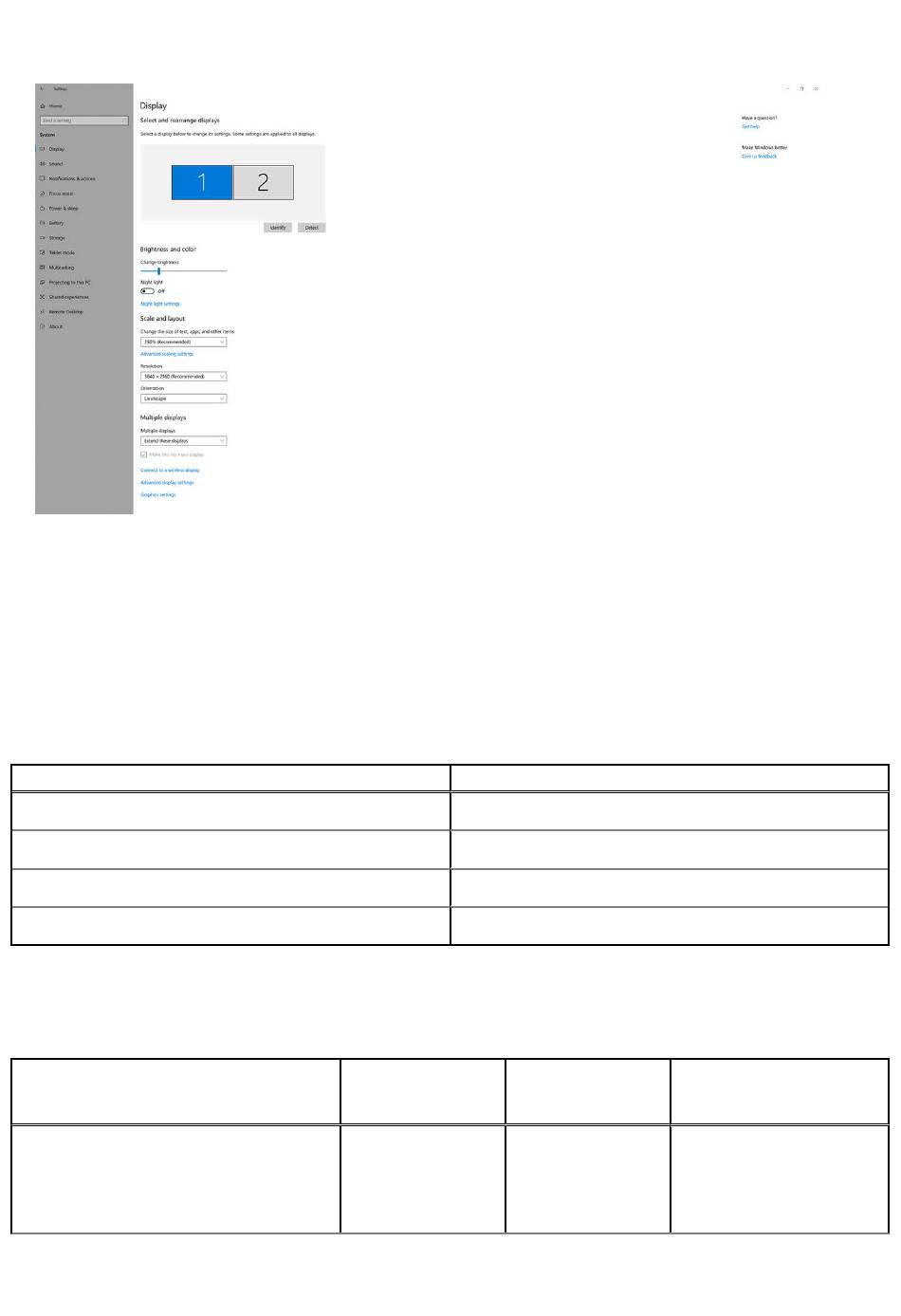

3. Under the Multiplay displays section, select Extend these displays.

Display bandwidth

External monitors require a certain amount of bandwidth to work properly. Monitors with higher resolution require more
bandwidth.
● DisplayPort High Bit Rate 2 (HBR2) is DP 1.2 (5.4 Gbps maximum link rate per lane). With DP overhead, the effective data
rate is 4.3 Gbps per lane.
● DisplayPort High Bit Rate 3 (HBR3) is DP 1.4 (8.1 Gbps maximum link rate per lane). With DP overhead, the effective data
rate is 6.5 Gbps per lane.
Table 2. Display bandwidth
Resolution
1 x FHD (1920 x 1080) display @60 Hz
1 x QHD (2560 x 1440) display @60 Hz
1 x 4K (3840 x 2160) display @30 Hz
1 x 4K (3840 x 2160) display @60 Hz

Display Resolution Table

Table 3. WD19
Display Port Available Bandwidth
HBR2 (HBR2 x2 lanes - 8.6 Gbps)
Minimum bandwidth required
3.2 Gbps
5.6 Gbps
6.2 Gbps
12.5 Gbps
Single Display Dual Display
(maximum (maximum
resolution) resolution)
● DP1.4 + DP1.4:
DP1.4/HDMI2.0/
MFDP Type-C: 4K
(3840 x 2160) @30
Hz
Triple Display (maximum
resolution)
● DP1.4 + DP1.4 + HDMI2.0:
FHD (1920 x 1080)
○ 1 x FHD (1920 x 1080)
@60 Hz
○ 2 x HD (1280 x 720)
Setup of External Monitors
@60 Hz
@60 Hz
