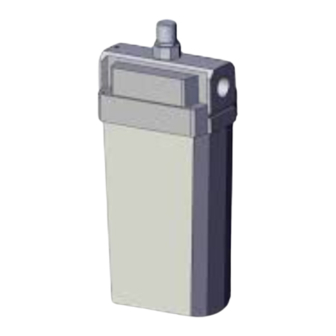

- Page 1 Doc. No. AMX-OM-Q013-B PRODUCT NAME Membrane Air Dryer MODEL / Series / Product Number IDG10,IDG10H IDG20,IDG20H Contents 1. Safety Instructions 2. Installations and Operations 3. Maintenance and Checks 4. Specifications...
- Page 2 1. Safety Instrutions Membrane Air Dryer Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
- Page 3 1. Safety Instructions Membrane Air Dryer Safety Instructions Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
- Page 4 2. Installations and Operations 2. Installations and Operations: Design Mounting Caution Caution a. Devise a layout which considers the position of the a. Do not obstruct the purge air discharge ports. purge air discharge ports. Dehumidification performance will decrease or may Purge air is humid air.
- Page 5 2. Installations and Operations 2. Installations and Operations: Piping Air Supply Warning Caution a. Confirm locking of case and body a. Compressed air supply capacity When using in a unit, be sure to set the air pressure to An air source that has a supply capacity that is larger zero before using a Mist Separator or Micro Mist than the “necessary outlet air flow rate (dry air flow Separator with modular connections.
- Page 6 Name Membrane module Dew point product. Indicator kit Model IDG10 IDG-EL10 b. Precautions for membrane module removal When the filter and membrane air dryer is connected by IDG10H IDG-EL10H IDG-DP01 spacer (modular connection), be sure to remove the...
- Page 7 4. Specifications 4. Specifications 1) Single Unit Type Specifications Model IDG10 IDG20 IDG10H IDG20H Compressed Air Fluid Inlet air pressure MPa 0.3 ～ 0.85 -5 ～ 55 *Note 1 Inlet air temperature -5 ～ 55 Ambient temperature *Note 1...
- Page 8 Revision history A: Changes to Maintenance and Checks B: Correction of specification column. 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 URL http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
