Tuff Tonneaus 221 Fitting Instruction

Holden rodeo space cab

Table of Contents

Download this manual

TONNEAU FITTING INSTRUCTION

Holden Rodeo Space Cab

Package includes

 1 X Tonneau cover

 1 x Tonneau Support Bar (300516)

 3 x Aluminium Rope Track-484mm long ea.

 1 x Support Bar Sheath

 1 x Fitting Instructions

1997-2003

Part number: 221

 2 x Bar Brackets (300474)

 27 x Rivets (300803)

 1 x Lock Bracket

 17 x Rope Buttons (300473)

 4 x Dowel

 17 x Anti-abrasive disc (300456)

Table of Contents

Need help?

Do you have a question about the 221 and is the answer not in the manual?

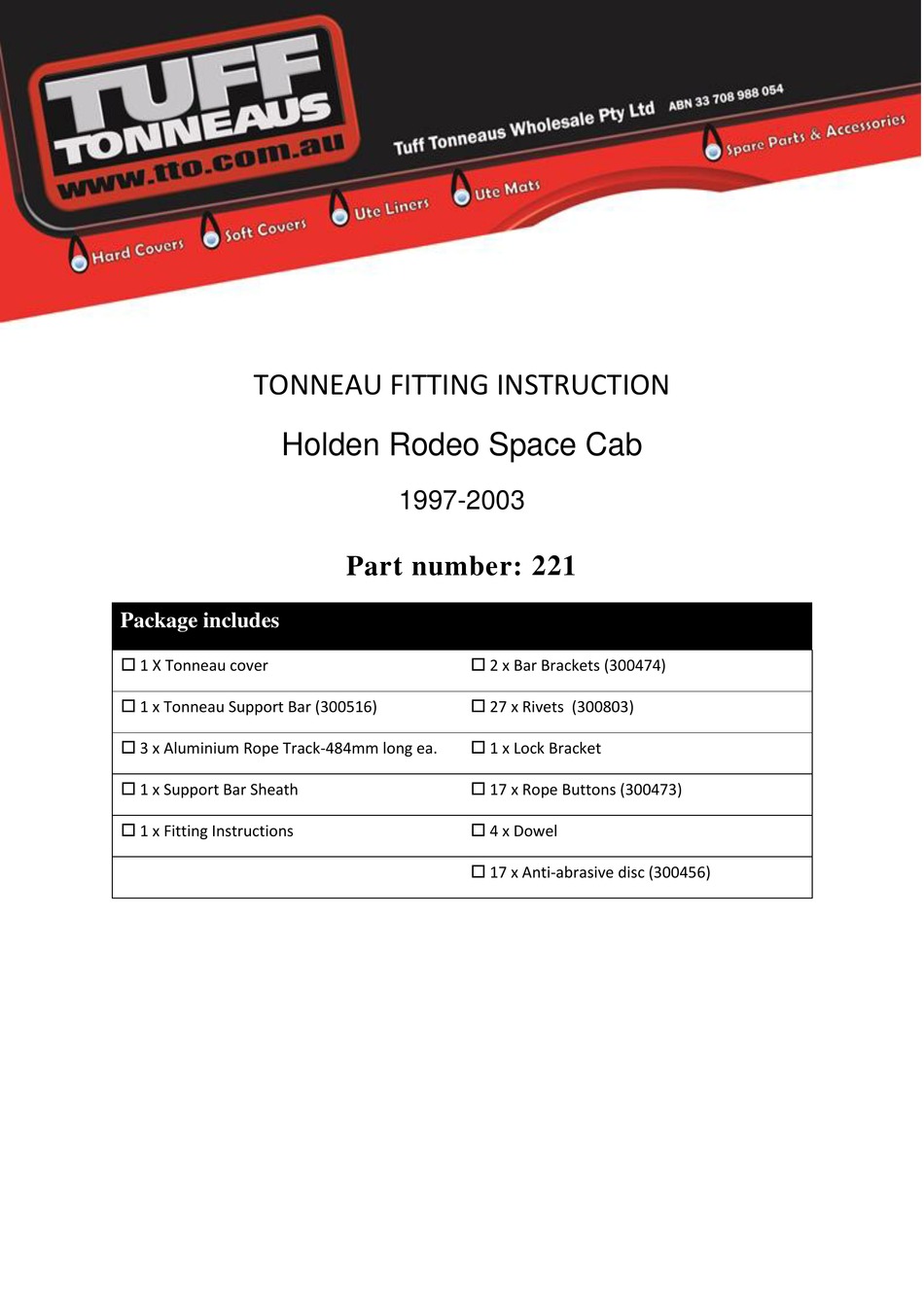

Page 1 TONNEAU FITTING INSTRUCTION Holden Rodeo Space Cab 1997-2003 Part number: 221 Package includes  1 X Tonneau cover  2 x Bar Brackets (300474)  1 x Tonneau Support Bar (300516)  27 x Rivets (300803)  3 x Aluminium Rope Track-484mm long ea.
Page 2 1. TONNEAU COVER FITTING NOTE Read entire instructions prior to start. 1.1 BASIC TOOL REQUIRED Drill, 4mm Drill Bit, Rivet Gun, Marking Pencil / Pen 1.2 TONNEAU COVER INSTALLATION PROCEDURE 1. Using two pieces of dowel, join the 3 aluminium rope tracks together. Place the other 2 pieces of dowel in the ends of the now joined rope track.
Page 3 Placement of bar bracket 2. TONNO LOCK The Tonno Lock is now a standard feature included with all Tuff Tonneaus. The Tonno Lock is situated at the front of the tonneau cover, so as not to impede the accessibility of the Tuff Tonneau.
Page 4 2.2 TONNO LOCK CONTENTS 2 X 4MM Aluminium rivets 1 x Tonno Lock bracket 2.3 FITTING TONNO LOCK 1. Attach the lock bracket to the bracket on the tonneau with your padlock, and fit the tarp. 2. Getting under the tarp with a torch, place the lock bracket against the body and mark holes with a pen.
Page 5 4. WARRANTY AND FEEDBACK Please register your warranty details online at: QR Code: Website Link http://www.tto.com.au/en-au/warranty.html Please complete our 2 minute feedback section as we strive to constantly improve for our customers Your Tuff Tonneau is now ready for work.
