4.3.3
Keyboard Control Panel [E]
1. Refer to next fig. "Keyboard control panel".
2. Remove the T10 Parker screws [1] from the shielding.
3. Remove the shielding.
4. Remove the T10 Parker screws [2] from the bracket.
5. Remove the unit.
6. Unplug connector(s).
When defective, replace the whole unit.

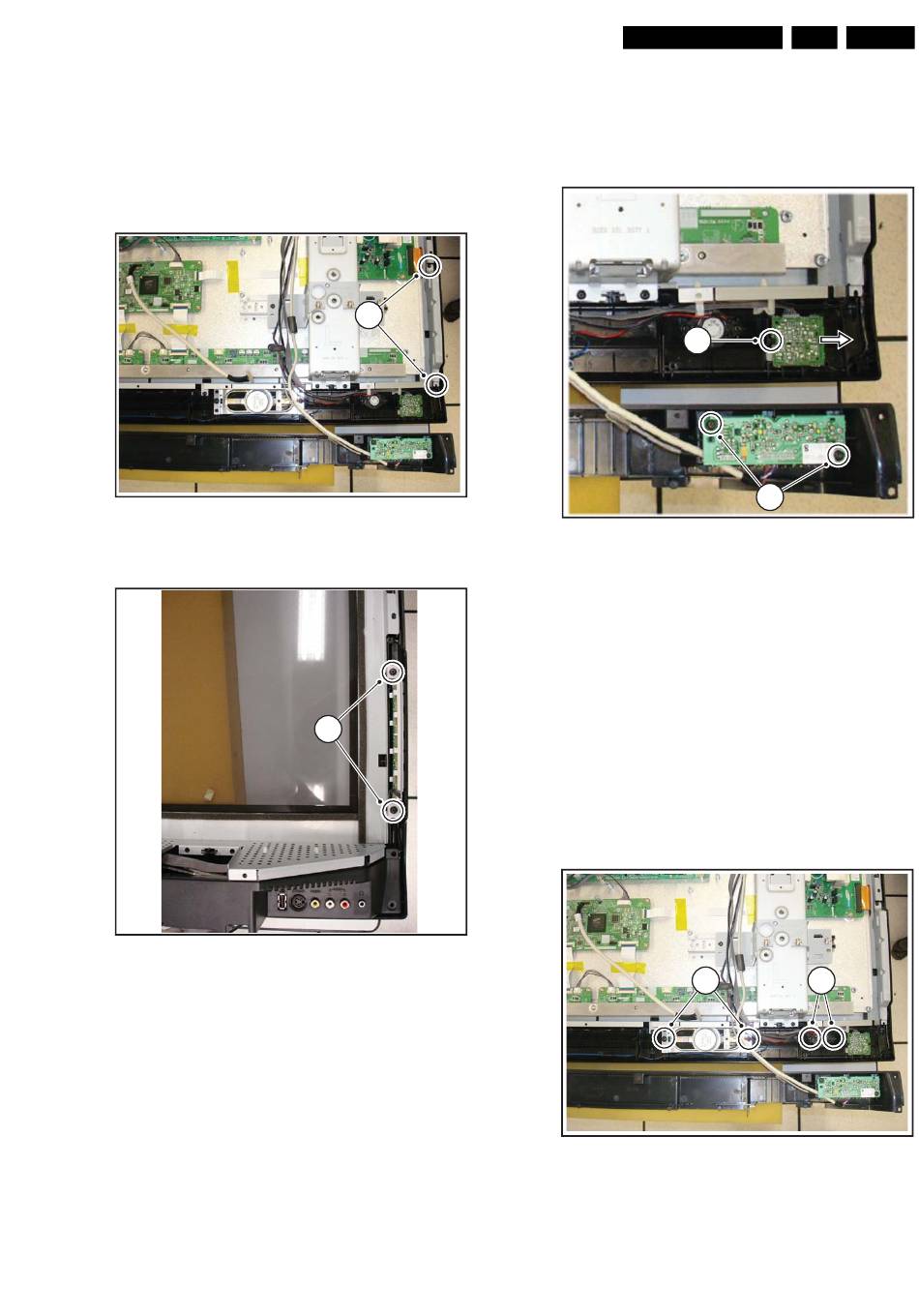

Figure 4-6 Keyboard control panel [1/2]
Figure 4-7 Keyboard control panel [2/2]
All manuals and user guides at all-guides.com
Mechanical Instructions
1
H_17000_010.eps
260207
2
H_17000_011.eps
260207
LC7.2E PA
4.3.4
Side I/O Panel [D]
1. Remove the bottom "speaker cover", as described earlier.
2. Refer to next fig. "Side I/O and IR/LED panel".
3. Remove T10 Parker screws [1] and take out the panel.
When defective, replace the whole unit.
Figure 4-8 Side I/O and IR/LED panel
4.3.5
IR/LED Panel [J]
1. Remove the bottom "speaker cover", as described earlier.
2. Refer to earlier fig. "Side I/O and IR/LED panel".
3. Release clip [2] and remove the board.
4. Unplug connector(s).
When defective, replace the whole unit.
4.3.6
Speakers
1. Remove the bottom "speaker cover", as described earlier.
2. Refer to fig. "Speakers" below.
3. Unplug connectors.
4. Remove T10 Parker screws [1] and [2].
5. Take out the speaker(s).
Figure 4-9 Speakers
4.
EN 9
2
1
H_17000_014.eps
1
2
H_17000_013.eps
280207
260207
