Please give us a chance to make it right and do better !
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP !
US office: Fontana
UK office: Ipswich
Contact Us !
Do NOT return this item.
AU office: Truganina
US:cs.us@costway.com
UK:cs.uk@costway.com
AU:cs.au@costway.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

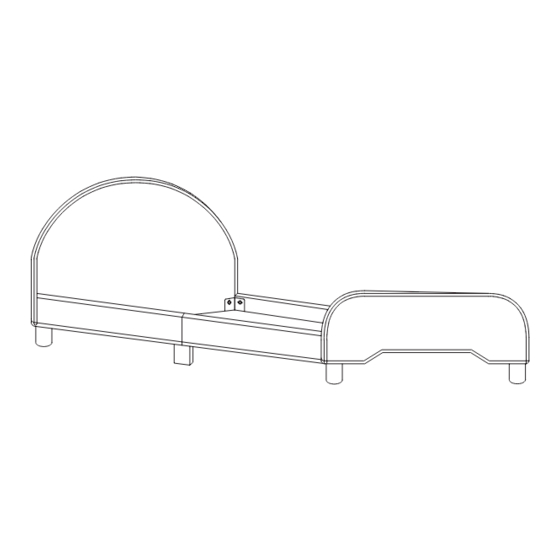

USER'S MANUAL
Children Bed
HY10020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Costway HY10020
Summary of Contents for Costway HY10020
- Page 1 Replacements for missing or damaged parts will be shipped ASAP ! US office: Fontana UK office: Ipswich AU office: Truganina USER’S MANUAL Contact Us ! Children Bed HY10020 Do NOT return this item. US:cs.us@costway.com UK:cs.uk@costway.com AU:cs.au@costway.com THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Before You Start Please read all instructions carefully and keep it for future reference. General Security Warning Caution: The Product is not suitable for the children under 3 years Danger: Keep all small parts and packaging materials for this product away from babies Read all instructions before assembly and use.
- Page 3 PARTS ASSEMBLY INSTRUCTION Step 1: Attach the legs (D) to headboard (A) and footboard (B), fasten completely. Headboard x 1 Footboard x 1 Mattress support x 1 Side board x 4 Hex wrench x 1 5/16*18mm Screw x 20 x 24 Ø4*38mm Screw x 4 (D)x4 1/4*38mm Screw x 9...
- Page 4 ASSEMBLY INSTRUCTION ASSEMBLY INSTRUCTION Step 3: Align assembled side frame to headboard (A), and attach with Step 2: Align side boards (F) with wooden center leg(C), fasten with washers (K) and screws (J). washers (K) and screws (P). Do not tighten screws completely. Align brackets (M) to the end of side boards (F) , fasten with washers (K) Step 4: Align assembled side frames to footboard (B), and attach with and screws (J).
- Page 5 ASSEMBLY INSTRUCTION ASSEMBLY INSTRUCTION Step 6: Place the assembled mattress support on the bed frame. Ensure Step 5: Fasten wooden support(H) to the mattress support(E) with screws the middle slat and end slats next to the headboard and footboard are (N) by household screwdriver.
