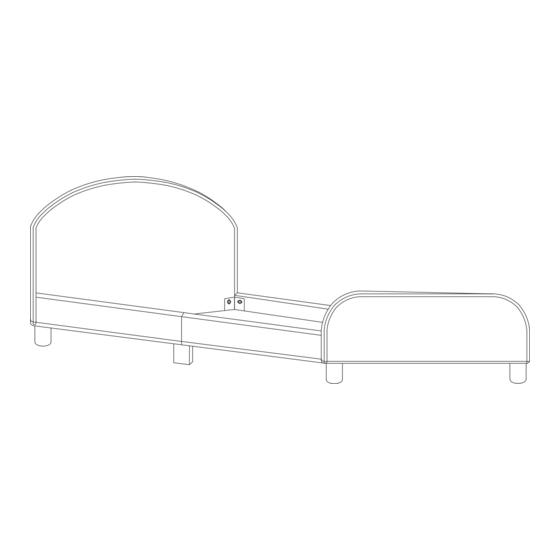

- Page 1 USER’S MANUAL Children Bed HY10019/HY10024 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully and keep it for future reference. General Security Warning Caution: The Product is not suitable for the children under 3 years Danger: Keep all small parts and packaging materials for this product away from babies and children, otherwise they may pose a choking hazard. - Page 3 Read all instructions before assembly and use. KEEP INSTRUCTIONS FOR FUTURE USE . Due to the presence of small parts during assembly, keep out of reach of children until assembly is completed. CAUTION DO NOT use this bed without a mattress. Infants who cannot get in and out of a bed without help can be trapped between a mattress and a wall and suffocate.
- Page 4 Mattress support H x 7 M6 Hex wrench Side board x 4 5/16*18mm Screws x 20 x 24 Ø4*38mm M x 4 Screws x 4 N 1/4*38mm Screws x9 5/16*40mm Screws x4 Q x 2...
-
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTION Step 1 Attach the legs (D) to headboard (A) and footboard (B), fasten completely. - Page 6 Step 2 Align side boards (F) with wooden center leg(C), fasten with washers (K) and screws (P). Align brackets (M) to the end of side boards (F) , fasten with washers (K) and screws (J). M x 2 Q x 1...
- Page 7 Step 3 / Step 4 Align assembled side frame to headboard (A), and attach with washers (K) and screws (J). Do not tighten screws completely. Align assembled side frames to footboard (B), and attach with washers (K) and screws( J ). Tighten all screws for steps 3 and 4.
- Page 8 Step 5 Fasten wooden support(H) to the mattress support(E) with screws (N) by household screwdriver. H x 7 N x7...
- Page 9 Step 6 Place the assembled mattress support on the bed frame. Ensure the middle slat and end slats next to the headboard and footboard are tightened with screw (L). N x2...
- Page 10 Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP ! US office: Fontana UK office: Ipswich AU office: Truganina Contact Us ! Do NOT return this item. US:cs.us@costway.com UK:cs.uk@costway.com AU:cs.au@costway.com...
