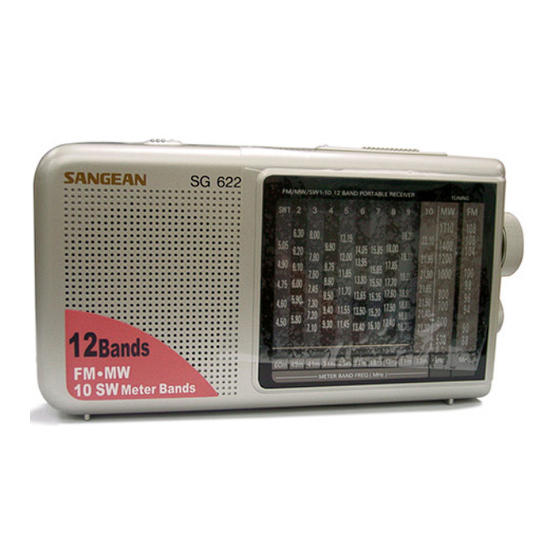

Summary of Contents for Sangean SG622

  • Page 2 POWER OFF ON SW1 2 3 4 5 6 7 8 9 10 MW FM 200mA DC IN 4 5V TUNNG FM/MW/SW1-10 12 BAND PORTABLE RECEIVER 2175 1700 1600 2170 1200 2165 1000 2160 2155 2150 2145 METER BAND FREQ (Mhz)
  • Page 3: Location Of Controls

    Location of Controls 1. Power knob 2. Band and SW band selector 3. Tuning knob 4. Volume Control 5. Tuning LED 6. Tuning pointer 7. Dial scale...
  • Page 4 Power Supply The Battery Compartment Open it by sliding the cover in direction of the OPEN. Insert 3 AA (UM-3) size batteries in compartment, then replace the cover. Alternative Power Supply This unit is fitted with a 4.5V DC power socket 4.5V 150 mA DC external main adaptor with central negative pin (Adaptor not included).
  • Page 5 SW reception is best obtained by raising the telescopic antenna to its Fullest extent and using the radio with the antenna upright. If the reception is generally poor, select a different position near a...
  • Page 6: Volume Control

    Earphones use An earphones jack at the left side of receiver furnishes users to use earphones in reception, the speaker will be disconnected automatically while inserting the earphones. Volume Control Adjust volume control knob by rotating it clockwise for comfortable sound volume.
  • Page 7: Tuning Methods

    SW meter band (SW1-10) by same selector. Then use the tuning knob , tune to the desired station. When a radio stations is tuned correctly, the tuning LED will be lighted on. Turn off the radio by switching power knob to its off position.
  • Page 8 Specifications Power Supply : 3 AA (UM-3) batteries. AC/DC adaptor 4.5 V 150 mA center negative. Frequency Ranges: 88-108 MHz MW 530-1710 kHz...
  • Page 9 SW 1 60 meter SW 2 49 meter SW 3 41 meter SW 4 31 meter SW 5 25 meter SW 6 21 meter SW 7 19 meter SW 8 16 meter SW 9 15 meter SW 10 13 meter 4,75 - 5,06 MHz 5,90 - 6,20 MHz 7,10 - 7,35 MHz...
  • Page 10 Semi-Conductors : Speaker : Output Power : Earphones Jack : 11C, 1 FET 1 diode . 2.5 inch, 8 ohm 0.5 Watt 150 mW 8 ohm (10% THD) for built-in speaker 10 mW per channel for earphones 3.5 mm in diameter 32 ohm...
