Lorex CVC6931 Quick Start Manual

Camera Specifications
Image Sensor 1/4" Color
Video Format / Pixels NTSC: 640(H) x 480 (V)
Horizontal Resolution 420 TVL
Internal; 2:1 Interlace
Sync. & Scan. Systems
S/N Ratio 40dB (AGC Off)
Iris & Shutter Speed AES; 1/60 ~ 1/25,000 sec.
Minimum Illumination 0.1 LUX without IR LED
0 LUX with IR LED
Video Output Comp. 1.0 Vpp @ 75ohm
Lens / Lens Mount 3.6 mm F2.0 / Fixed
FOV (diagonal) 70 Degrees
Termination BNC Type
IR / Night Vision Range 18 IR LED / (40ft / 12m)
Power Requirement 12V DC ±10%
Power Consumption Max. 290mA (w/IR)
Operating Temp. 14°F ~ 122°F
(-10°C ~ 50°C)
Weight (with stand) 0.5lbs / 0.2kg
Dimensions 2.6" x 4.2" x 5.2"
WxLxH 66 mm x 107 mm x 132 mm
(with stand)
Dimensions
IT'S ALL ON THE WEB!
Product Information
Specification Sheets
User Manuals Software Upgrades
Firmware Upgrades
Quick Start Guides
VISIT
www.lorextechnology.com
Lorex Technologies Inc.
Copyright © 2012 Lorex Technologies Inc.
As our products are subject to continuous
improvement, Lorex reserves the right to
modify product design, specifications and
prices, without notice and without incurring
any obligation. E&OE

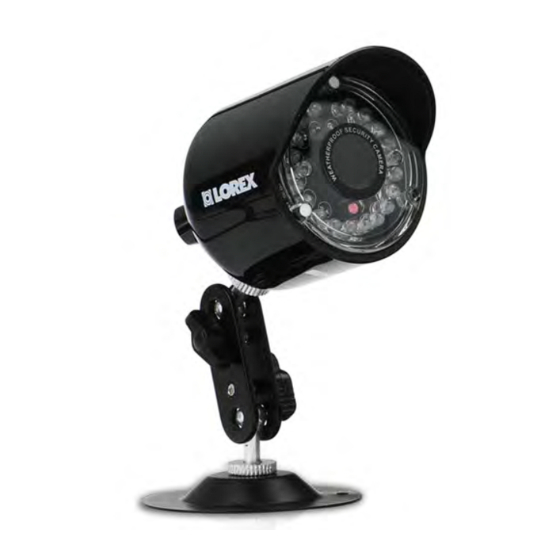

INDOOR / OUTDOOR
COLOR CAMERA
with Night Vision
MODEL: CVC6931
QUICK START GUIDE
English Version 1.0
www.lorextechnology.com
