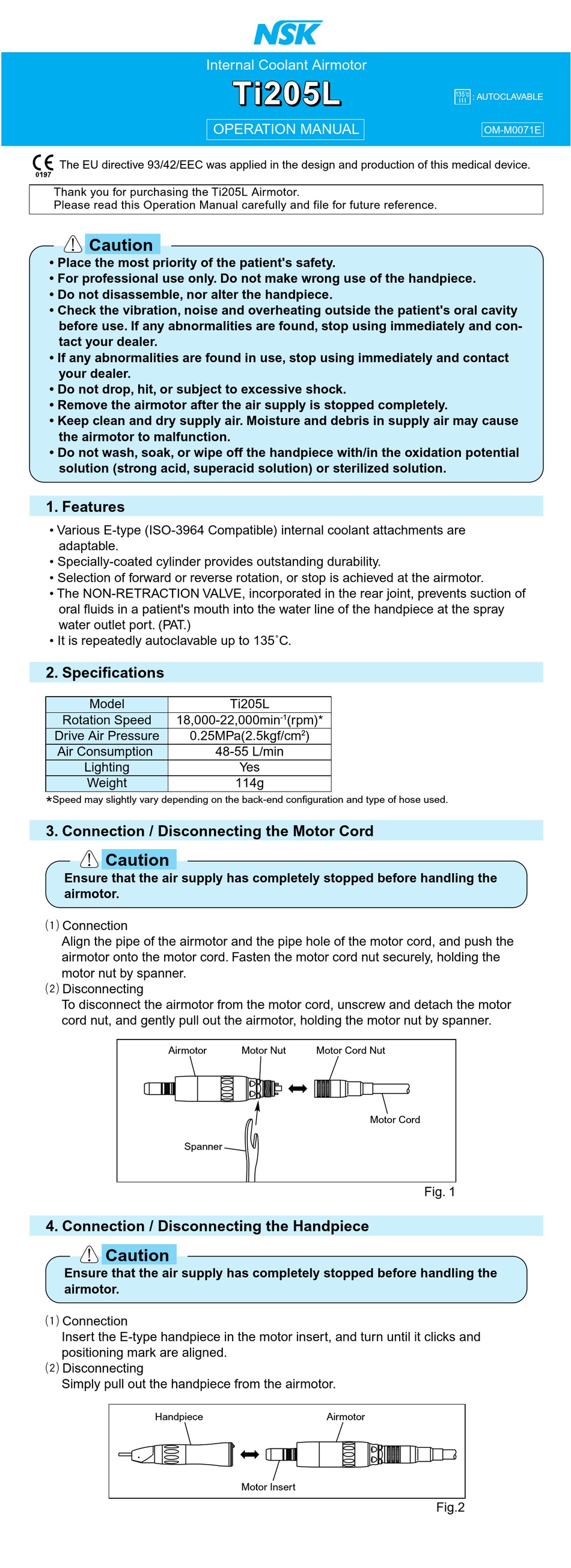

NSK Ti205L Operation Manual

Internal coolant airmotor

Advertisement

The EU directive 93/42/EEC was applied in the design and production of this medical device.
Thank you for purchasing the Ti205L Airmotor.
Please read this Operation Manual carefully and file for future reference.
Caution
• Place the most priority of the patient's safety.
• For professional use only. Do not make wrong use of the handpiece.
• Do not disassemble, nor alter the handpiece.
• Check the vibration, noise and overheating outside the patient's oral cavity
before use. If any abnormalities are found, stop using immediately and con-
tact your dealer.
• If any abnormalities are found in use, stop using immediately and contact
your dealer.
• Do not drop, hit, or subject to excessive shock.
• Remove the airmotor after the air supply is stopped completely.
• Keep clean and dry supply air. Moisture and debris in supply air may cause
the airmotor to malfunction.
• Do not wash, soak, or wipe off the handpiece with/in the oxidation potential
solution (strong acid, superacid solution) or sterilized solution.

1. Features

• Various E-type (ISO-3964 Compatible) internal coolant attachments are
adaptable.
• Specially-coated cylinder provides outstanding durability.
• Selection of forward or reverse rotation, or stop is achieved at the airmotor.
• The NON-RETRACTION VALVE, incorporated in the rear joint, prevents suction of
oral fluids in a patient's mouth into the water line of the handpiece at the spray
water outlet port. (PAT.)
• It is repeatedly autoclavable up to 135˚C.

2. Specifications

Model
Rotation Speed
Drive Air Pressure
Air Consumption
Lighting
Weight
Speed may slightly vary depending on the back-end configuration and type of hose used.
*

3. Connection / Disconnecting the Motor Cord

Caution
Ensure that the air supply has completely stopped before handling the
airmotor.
a Connection
Align the pipe of the airmotor and the pipe hole of the motor cord, and push the
airmotor onto the motor cord. Fasten the motor cord nut securely, holding the
motor nut by spanner.
s Disconnecting
To disconnect the airmotor from the motor cord, unscrew and detach the motor
cord nut, and gently pull out the airmotor, holding the motor nut by spanner.

4. Connection / Disconnecting the Handpiece

Caution
Ensure that the air supply has completely stopped before handling the
airmotor.
a Connection
Insert the E-type handpiece in the motor insert, and turn until it clicks and
positioning mark are aligned.
s Disconnecting
Simply pull out the handpiece from the airmotor.
Internal Coolant Airmotor
Ti205L
OPERATION MANUAL
Ti205L
18,000-22,000min
0.25MPa(2.5kgf/cm
48-55 L/min
Yes
114g
Airmotor
Motor Nut
Spanner
Handpiece
Motor Insert
-1
(rpm)*
2
)
Motor Cord Nut
Motor Cord
Airmotor
: AUTOCLAVABLE
OM-M0071E
Fig. 1
Fig.2
