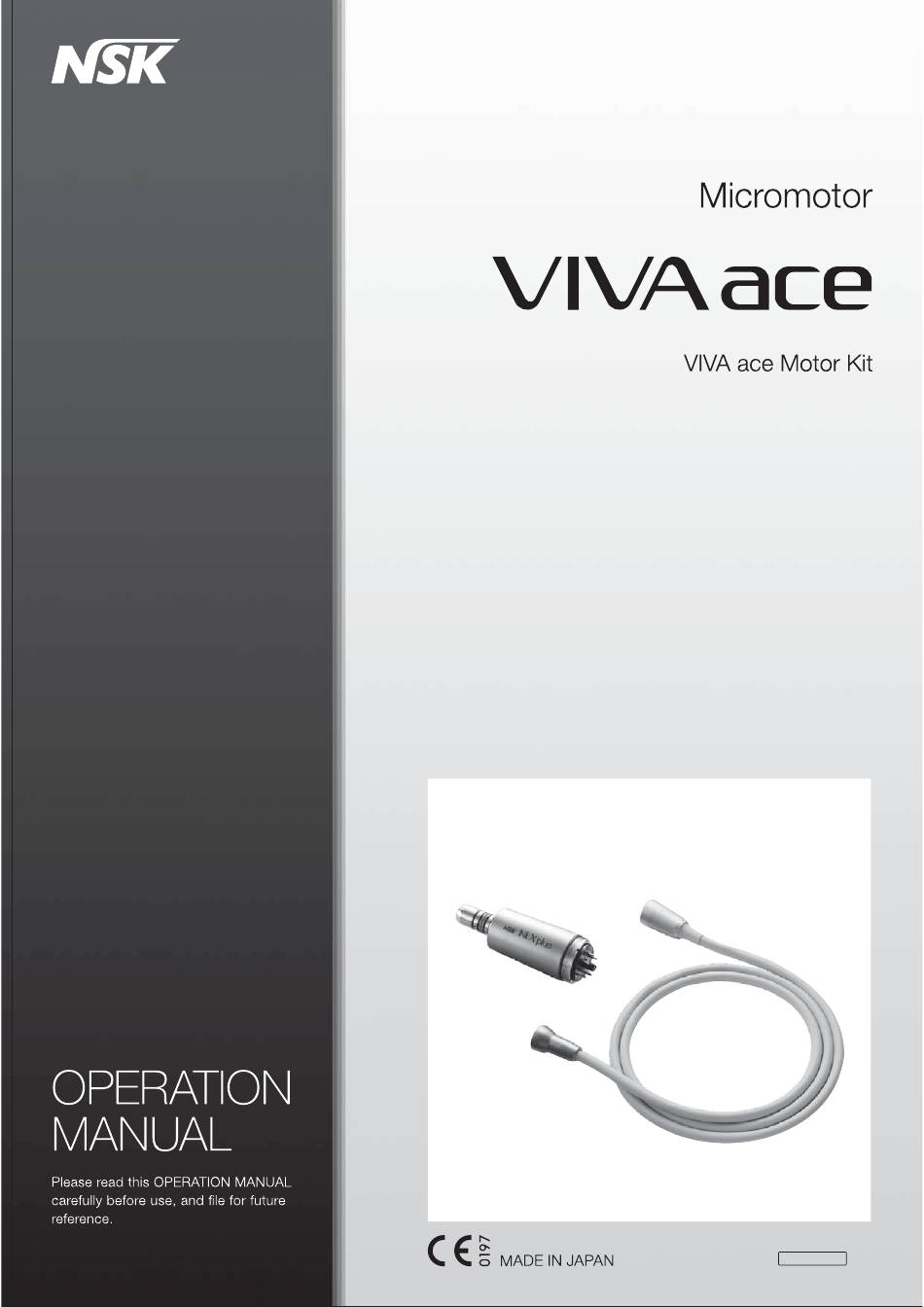

- Page 1 OM-E0799E...
-
Page 2: Table Of Contents
6-5 Maintenance of the Water Line for the Motor and the Motor Cord ..........20 Operation procedure of this product is introduced in a movie. Check the following URL or the QR code. http://www.nsk-dental.com/support/videos/ *This product is used connecting to VIVA ace Basic Set. -
Page 3: User And Indications For Use
User and Indications for Use User : Dentist, Dental hygienist Indications for use : The motor is intended for teeth and denture cutting, polishing and root canal treatment. Precautions for handling and operation Please read these precautions carefully and use only as intended or instructed. Safety instructions are intended to avoid potential hazards that could result in personal injury or damage to the device. - Page 4 Precautions for handling and operation WARNING • Do not attempt to disassemble the product nor tamper with the mechanism except as recommended by NSK in this Operation Manual. This may result in an injury, electric shock or fire. • Do not touch the connection (terminal section) of the Motor and the Motor Cord. This could cause an electric shock.
- Page 5 • Operators and all others in the area must wear eye protection, a mask, and gloves when operating this product. • Should the product functions abnormally, cease operation immediately and contact your Authorized NSK Dealer. • Do not turn the lighting of the motor directly to the eyes of the patients or the operators. There is a danger that it may damage the eyes.
- Page 6 • To avoid clinical downtime, it is recommended that a spare is kept on hand in case of a breakdown during surgery. • Contact the Authorized NSK Dealer for repairing. The service staff of the company will take care of the product in accordance with the service manual.
-
Page 7: Package Contents

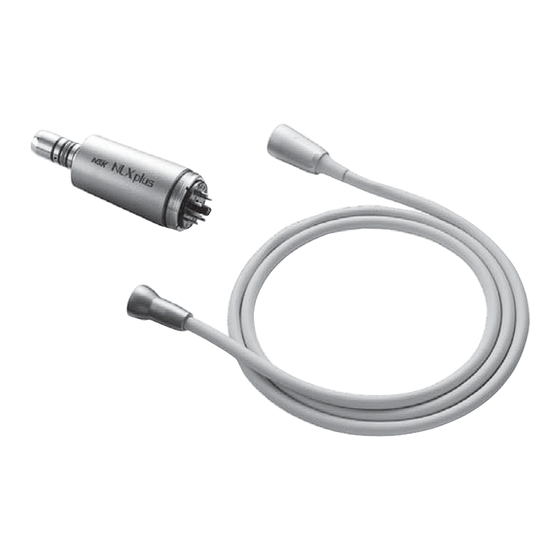

Package Contents Part Name Order Code Quantity Remarks Motor E1040051 Motor Cord E1040070 Motor Cap 20001300 Protection Plug 10001595 Spare for replacement for Motor inserting part O-ring Set Y1003728 ( Black 3 pieces, Blue 1 piece ) Operation Manual *Not in the illustration. Please specify the order code listed above when purchasing the spare parts. -
Page 8: Preparation For Use
Preparation for Use Connecting and Disconnecting the Motor Cord and the Motor <Connection> Aligning the hole on the back of the Motor and the pin on the Motor Cord Connector, insert the pin straight into the hole and tighten the Motor Cord Nut firmly. Hole Motor Tighten... -
Page 9: Connecting The Motor Cord And
Preparation for use Connecting the Motor Cord and VIVA ace Control Unit Aligning the mark of the Motor Cord plug Turn the Plug Cover for tightening. and the shape of the terminal as shown below, insert the plug deep into the motor connector. -
Page 10: Connecting And Disconnecting The Handpiece (Optional)
Preparation for Use Connecting and Disconnecting the Handpiece (optional) Insert the Handpiece straight into the Motor. Confirm that the Handpiece is connected When connecting an optic handpiece, turn firmly. the Handpiece either to the right or left until hearing a clicking sound securing the position. -
Page 11: Operation Procedure
Operation Procedure Follow the Operation Manual for VIVA ace Basic Set. ( Reference : 6 Operation Procedure ) Post-use Maintenance Preparation for Maintenance Wear eye protection, a mask, and gloves to prevent infection. Turn off the Power Switch of the Control Unit. - Page 12 Post-use Maintenance CAUTION • Do not clean, immerse, or wipe with electrolyzed-oxidizing water (strong acidic water, super acidic water), strong acidic and strong alkaline liquid medicine, solvent containing chlorine, benzene, or thinner. • Do not lubricate the Motor. It may cause overheating and a malfunction. NOTICE Be sure to remove the Water Plug (IN) [Clear Tube] first.
-
Page 13: Maintenance For Between Each Patient
Post-use Maintenance Maintenance for Between Each Patient Cleaning and Disinfection of the outside of the 6-2-1 Motor and the Motor Cord, and Replacing the Motor < Cleaning > Remove the all debris on the surface of the Handpiece, Motor and the Motor Cord with a wipes (Minuten Wipes: ALPRO). - Page 14 Post-use Maintenance Remove the Handpiece from the Motor * Reference: "4-3 Connecting and Disconnecting the Handpiece (optional)". * Maintenance of the Handpiece should be done in accordance with its operation manual. Handpiece Motor (optional) Wipe the debris on the surface of the Motor and the Motor cord using a cloth moistened with water. Under appropriate lighting (500 lx or higher), inspect the Motor and the Motor cord for contamination.
- Page 15 Post-use Maintenance Cleaning and Disinfection of the outside of the Motor and 6-2-1 the Motor Cord, and Replacing the Motor (Continued) < Disinfection > Wipe the surface of the Motor, the Motor Cord and the Holder of the Control Unit with the disinfectant wipes (Minuten Wipes: ALPRO).
-
Page 16: Maintenance After Close
Post-use Maintenance Maintenance After Close Cleaning and Disinfection of the outside 6-3-1 of the Motor and the Motor Cord < Cleaning > Remove the all debris on the surface of the Handpiece, Motor and the Motor Cord with a wipes (Minuten Wipes: ALPRO). - Page 17 Post-use Maintenance Cleaning and Disinfection of the outside of 6-3-1 the Motor and the Motor Cord (Continued) < Cleaning (Continued) > Remove the Handpiece from the Motor * Reference: "4-3 Connecting and Disconnecting the Handpiece (optional)". * Maintenance of the Handpiece should be done in accordance with its operation manual Handpiece Motor (optional)
- Page 18 Post-use Maintenance Under appropriate lighting (500 lx or higher), inspect the Motor and the Motor cord for contamination. If any visible contamination remains, repeat the process until it is visually clean. Be sure to repeat from the procedure No.4. ≥ 500 lx <...
-
Page 19: Sterilization
Immediately after sterilization is complete (within 1 hour), remove the Motor from the sterilozer. Failure to do so may cause corrotion. NOTICE NSK recommends Class B sterilizer as stated in EN 13060. • For details, confirm to the manufacturer's of the sterilizer operation manuals. - Page 20 Post-use Maintenance Apply autoclave sterilization for the following products. After each patient treatment, sterilize the products as follow. Autoclavable equipment: Motor, Motor Cap, Protection Plug, < Preparation before sterilization > Tighten the Motor Cap to the connection Insert the Motor with the Protection Plug part of the Motor Cord and place the and the Motor Cap to the sterilization pouch Protection Plug in the insert part of the...
-
Page 21: Maintenance Of The Water Line For The Motor
Post-use Maintenance Maintenance of the Water Line for the Motor and the Motor Cord Cleaning and Disinfection should be done in the cleaning tank. CAUTION Be sure to perform Cleaning and Disinfection the "6-3 Maintenance after Close (Cleaning and Disinfection •... - Page 22 Post-use Maintenance Insert the Water Plug (OUT) [Blue Tube] and the Water Plug (IN) [Clear Tube] to the lid until hearing a clicking sound. Water Plug (OUT) Water Plug (IN) [Blue Tube] [Clear Tube] Turn on the Power Switch of the Control Maximize the Motor Water Adjuster.
- Page 23 Post-use Maintenance Disinfection of the Water Line of 6-5-2 the Motor and the Motor Cord Push the MOTOR Key. Hold the Motor and the Motor Cord in the Turn ON the SPRAY Key to irrigation. cleaning tank. Press the ON/OFF Key for 2 seconds and Place the Motor and the Motor Cord on the activate for 10 seconds or more to confirm Holder of the Control Unit state for a night (at...
- Page 24 Post-use Maintenance Rinsing of Water Line of the Motor 6-5-3 and the Motor Cord after Disinfection Put 250 mL of drinking water in the Water Bottle. Tightly close the Water Bottle Lid and place the Water Bottle in the Control Unit. Drinking water 250 mL Insert the Water Plug (OUT) [Blue Tube] and the Water Plug (IN) [Clear Tube] to the lid until hearing...
- Page 25 Post-use Maintenance Rinsing of Water Line of the Motor and the 6-5-3 Motor Cord after Disinfection (Continued) Turn on the Power Switch of the Control Maximize the Motor Water Adjuster Unit. Push the MOTOR Key. Hold the Motor and the Motor Cord in the Turn ON the SPRAY Key to irrigation.
- Page 26 Post-use Maintenance Press the ON/OFF Key for 2 seconds and Wipe the surface of the Motor and the Motor activate for 10 seconds or more to confirm Cord with the disinfectant wipes (Minuten that drinking water comes out from the tip Wipes: ALPRO).
-
Page 27: Maintenance
The Handpiece cannot be connected/disconnected easily. • Periodical Maintenance Checks Every 3 months perform periodical maintenance checks, referring to the check sheet below. If any abnormalities are found, contact your Authorized NSK Dealer. Points to check Details Rotation Rotate the Motor and check if there is any abnormal vibration, noise, or generation of heat. -
Page 28: Troubleshooting
When a problem is detected, check the following again before requesting a repair. If none of these is applicable or if the trouble is not remedied even after an action has been taken, a malfunction of this product is suspected. Contact your Authorized NSK Dealer. Problem... -
Page 29: Specifications
Specifications Specifications NLX Plus Model Rotation Speed 100 - 40,000 min 4.0N · cm Maximum Torque DØ22 x H77 mm Dimension Temperature Humidity Pressure 0 - 40ºC 30 - 75%* Use environment Transportation and -10 - 50ºC 10 - 85%*... -
Page 30: Symbol
10-1 Warranty NSK products are warranted against manufacturing errors and defects in materials. NSK reserves the right to analyze and determine the cause of any problem. Warranty is voided should the product be not used correctly or for the intended purpose or has been tampered with by unqualified personnel or has had non NSK parts installed. - Page 31 2018.08.10 002...
