Amana Domestic Gas DryerTechnical Information
120 V, 60 Hz Models
DLG330RAW
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• This technical sheet replaces RT3210013 Rev. 0.
• Refer to Service Manual RS3200007 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
• Refer to Parts Manual RP3200020 for part number information.
All safety information must be followed as provided in this Technical Sheet and in Service Manual RS3200007.
To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply
before servicing, unless testing requires it.
Models
Power Source
Voltage AC
Amperage (Single Unit)
Frequency
Motor horsepower
Dimensions
Cabinet
Height−overall
Height of cabinet
Width
Depth
Clearance−dryer door
Weight
Crated
September 2002
PDLG330RAW
!
CAUTION
!
DLG330RAW
120 VAC
15 A
60 Hz
1/3
43"
36"
27"
28"
23 1/2"
145 lbs.
DLG330RAW
WARNING
Models
Temperature settings
Color coded control
Features
Easy Access Opening
Reversible door
Upfront lint filter
Front servicable
FabriCare system
Signal switch
1
(This technical sheet replaces RT3210013 Rev. 0.)
PDLG330RAW1
DLG330RAW
3
Electromechanical
Bi-directional
X
X
X
X
X
X
16021969 Rev. 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLG330RAW and is the answer not in the manual?

Questions and answers

John Gorzny
July 18, 2025

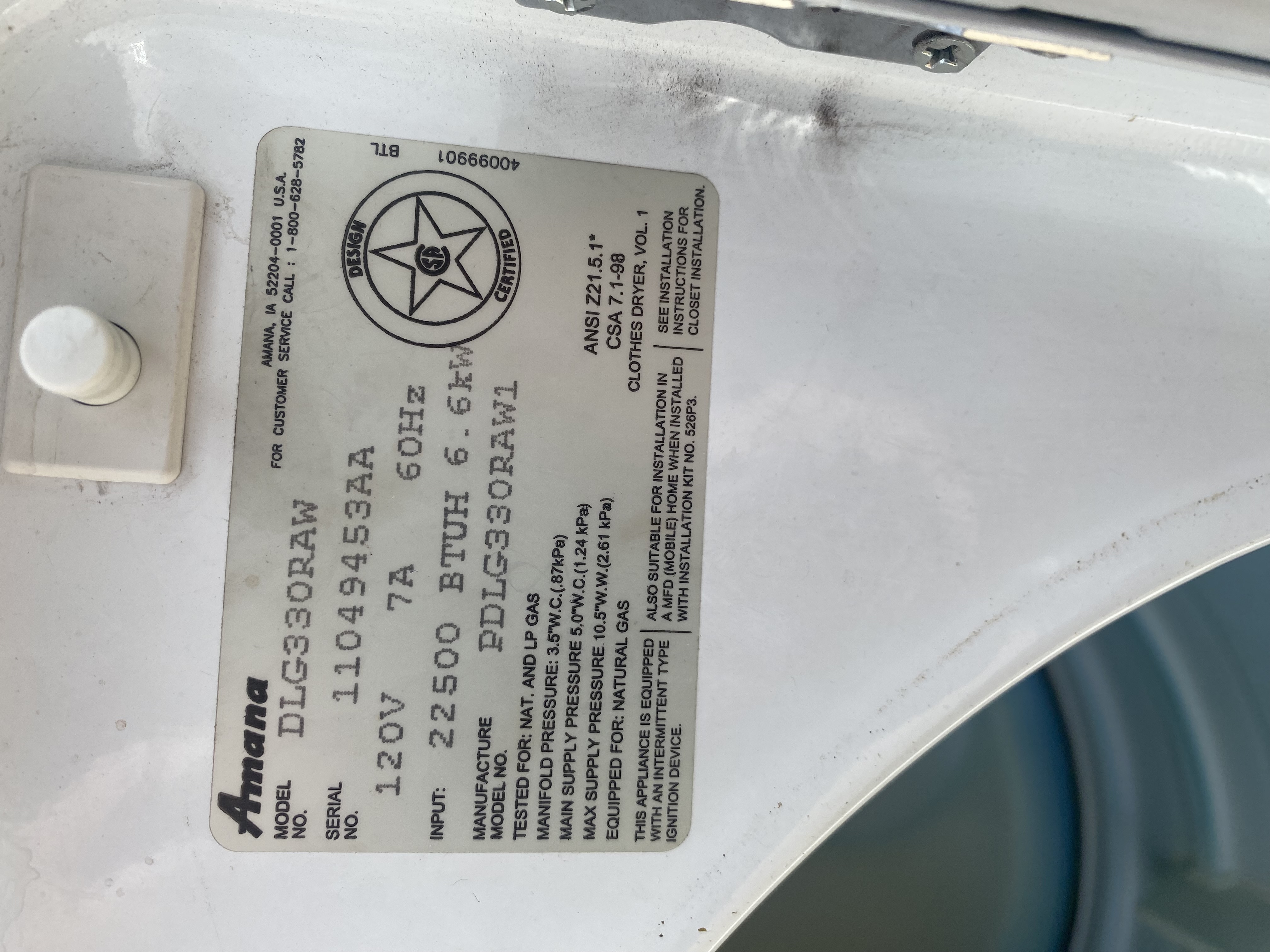

What year was my Amana gas dryer serial number 11049453AA model DLG330RAW Manufactured

User image 687ab5ac65374

Subscribe to Our Youtube Channel

Summary of Contents for Amana DLG330RAW

  • Page 1 Amana Domestic Gas DryerTechnical Information 120 V, 60 Hz Models DLG330RAW PDLG330RAW DLG330RAW PDLG330RAW1 • Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or repair of this unit. • This technical sheet replaces RT3210013 Rev. 0.
  • Page 2 Component Testing Information WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply before servicing, unless testing requires it. Illustration Component Test Procedure Results Open at 225° ± 7° F Thermostat limit Measure resistance of the following terminals: Close at 215°...
  • Page 3 Component Testing Information WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply before servicing, unless testing requires it. Illustration Component Test Procedure Results 504091 Gas valve Measure resistance of following coils: Holding coil 1365 Ω...
  • Page 4 Internal Motor Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply before servicing, unless testing requires it. Unplug motor wire terminal from motor before starting this test. Continuity exists between switch terminal 5 and Black wire.
  • Page 5 Internal Motor Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply before servicing, unless testing requires it. MAIN START ORANGE CUSTOMER CIRCUIT PUSH TO START LINE SWITCH SHOWN IN START POSITION R.S.P.C.
  • Page 6 Wiring Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply before servicing, unless testing requires it. 16021969 Rev. 0 September 2002 (This technical sheet replaces RT3210013 Rev. 0.)
  • Page 7 Wiring Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to dryer and shut-off gas supply before servicing, unless testing requires it. September 2002 16021969 Rev. 0 (This technical sheet replaces RT3210013 Rev. 0.)
