Summary of Contents for Samsung MM-B100

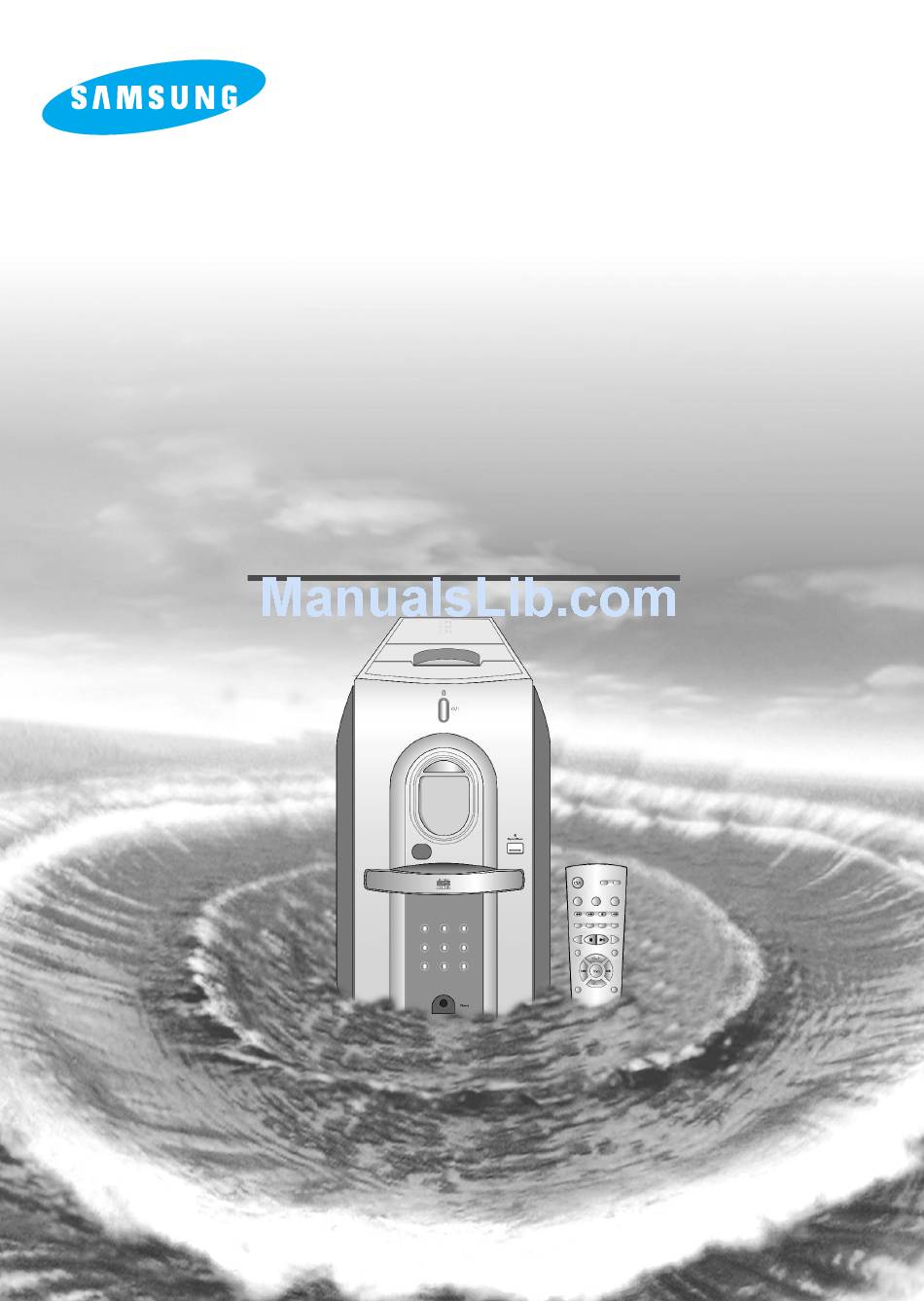

- Page 1 DIGITAL MICRO COMPONENT SYSTEM CD-R/CD-RW PLAYBACK MM-B100 Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. -
Page 3: Table Of Contents
Before Contacting the After-Sales Service ... 24 Technical Specifications ... 25 Press Thank you for buying this SAMSUNG mini-compact system. Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features. -
Page 4: Front Panel View
Front Panel View Disc Tray Demo Function Selection buttons Multi-Function (CD/TAPE/TUNING) Headphone Jack Connector S. Bass Volume Mode / Stop CD Door Open/Close 10. On/Standby 11. Push Eject (Cassette Door Open/Close) Push Eject Open/Close VOL.+ Function Demo Mode VOL.– S.Bass Phones... -
Page 5: Remote Control
Remote Control On/Standby EQ/S.Bass TAPE Rewind TAPE Fast-Forward Rec/Pause, CD SYNCHRO REV. Mode Repeat CD Stop Program/Set Skip or Search Tuning Mode Mono/ST Mute Timer Timer/ Clock On/Off EQ/S.Bass Sleep TAPE REV. CD SYNC. Display Mode Repeat Program/ Band VOL. Tuning Mode VOL. -
Page 6: Rear Panel View
Rear Panel View 1. MAIN Speaker 2. AM Aerial Connector Terminal 3. FM Aerial Connector Terminal 4. SUBWOOFER Speaker 5. AUX-Input 6. CD Digital out Jack AUX IN... -
Page 7: Where To Install Your Mini-Compact System
Where to Install Your Mini-Compact System To take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit. Install the system on a flat, stable surface. Never place this unit on carpeting. Never place this unit in an outdoor area. Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes. -
Page 8: Connecting To An External Source
Connecting to an External Source The auxiliary input can be used to take advantage of the sound quality of your mini-compact system when listening to other sources. Examples: A television A video disc player A Hi-Fi stereo video cassette recorder To connect the external source, the source must have an audio output. -
Page 9: Connecting The Am (Mw)/Lw Aerial
Connecting the AM (MW)/LW Aerial The AM aerial (for long and medium waves) can be: Placed on a stable surface Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM . -
Page 10: Demo Function
Demo function You can view the various functions available on your system. Press the Demo button. Result: The various functions available are listed in turn on the display. All these functions are described in detail in this booklet. For instructions on how to use them, refer to the appropriate sections. -
Page 11: Listening To A Compact Disc
Listening to a Compact Disc You can play 12 cm or 8 cm compact discs without an adapter. This unit has been designed to playback the CDs: Audio CD, CD Text, CD-R and CD-RW. Continued use of irregular shape CDs (heart-shape, octagonal, etc.) can damage the unit. -
Page 12: Searching For A Specific Music Passage On A Cd
Searching for a Specific Music Passage on a CD When listening to a compact disc, you can quickly search for a specific music passage on a track. To search through the tracks... Forwards Backwards It is recommended that you turn the volume down before using this function. -
Page 13: Repeating One Or All Tracks On The Compact Discs
Repeating One or All Tracks on the Compact Discs You can repeat indefinitely: A specific track on a compact disc. All tracks on the compact disc selected. To repeat... Press Repeat on the Front Panel one or more times until... The current track indefinitely REPEAT 1 is displayed All songs... -
Page 14: Checking Or Changing Programmed Tracks
Checking or Changing Programmed Tracks You can check or change your selection of tracks at any time. Press once if you have started listening to the selection. Press Program/Set. Result: The following indications are displayed: (01 = Program no., – – = Check no. on the disc) If you have already programmed 24 tracks, Check is displayed instead of PR when you press Program/Set. -
Page 15: Improving Radio Reception
Searching for and Storing the Radio Stations (continued) If you do not want to store the radio station found, revert to Step 4 and search for another station. Otherwise: a Press Program/Set. Result: The PRGM is displayed for a few seconds. b Press to assign a programme number between 1 and 15. -
Page 16: About Rds Broadcasting
About RDS broadcasting This unit has the RDS (Radio Data System) function, which enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal. -
Page 17: Pty (Program Type) Indication And Pty-Search Function
PTY (Program Type) indication and PTY-SEARCH function The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station. The 30 PTY modes are shown in the display by pressing the PTY button. -
Page 18: Listening To A Cassette
Listening to a Cassette Always treat your cassettes with care; refer, if necessary, to the section entitled “Precautions When Using Audio Cassettes” on page 24. Switch the system on by pressing Select the TAPE function by pressing Function on the front panel. Open the cassette deck by pushing on the corner of the cover marked Push Eject ( ) until you hear a click and then releasing it. -
Page 19: Recording A Radio Program
Recording a Radio Program You can record a radio program of your choice. You do not need to adjust the volume, as it has no effect on the recording. Switch the system on by pressing Insert a blank cassette in Deck. Select the TUNER function by pressing Function. -
Page 20: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 21: Mute Function
Mute Function You can turn the sound off temporarily on your system. Example: You wish to answer a telephone call. Press Mute. To switch the sound back on (at the same volume as before), press Mute again or the Volume buttons. Repeat Program/ VOL. -
Page 22: Setting The System To Switch Off Automatically
Setting the System to Switch off Automatically While listening to a compact disc or a cassette, you can set the system to switch off automatically Example: You wish to go to sleep to music. Press Sleep. Result: The following indications are displayed: 90 MIN Press Sleep one or more times to indicate how long the system should continue playing before it switches off:... -
Page 23: Safety Precautions
Safety Precautions The following diagrams illustrate the precautions to be taken when using or moving your mini-compact system. Push Eject Open/Close Function Demo VOL.+ Mode VOL.– S.Bass Phones Ambient operating conditions: Do not expose the unit to direct sun Ambient temperature 5°C-35°C radiation or other heat sources. -
Page 24: Precautions When Using Compact Discs
If the above guidelines do not allow you to solve the problem, take a note of: Then contact your local dealer or SAMSUNG after-sales service. Problem Checks/Explanation • The main lead is not correctly plugged into a wall socket or the wall socket is not switched on. -
Page 25: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO Usable sensitivity AM (MW) Signal/noise ratio Usable sensitivity Total harmonic distortion Signal/noise ratio... - Page 26 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS AH68-00768B...
