Black Max BM907500BT Starting/stopping Manual

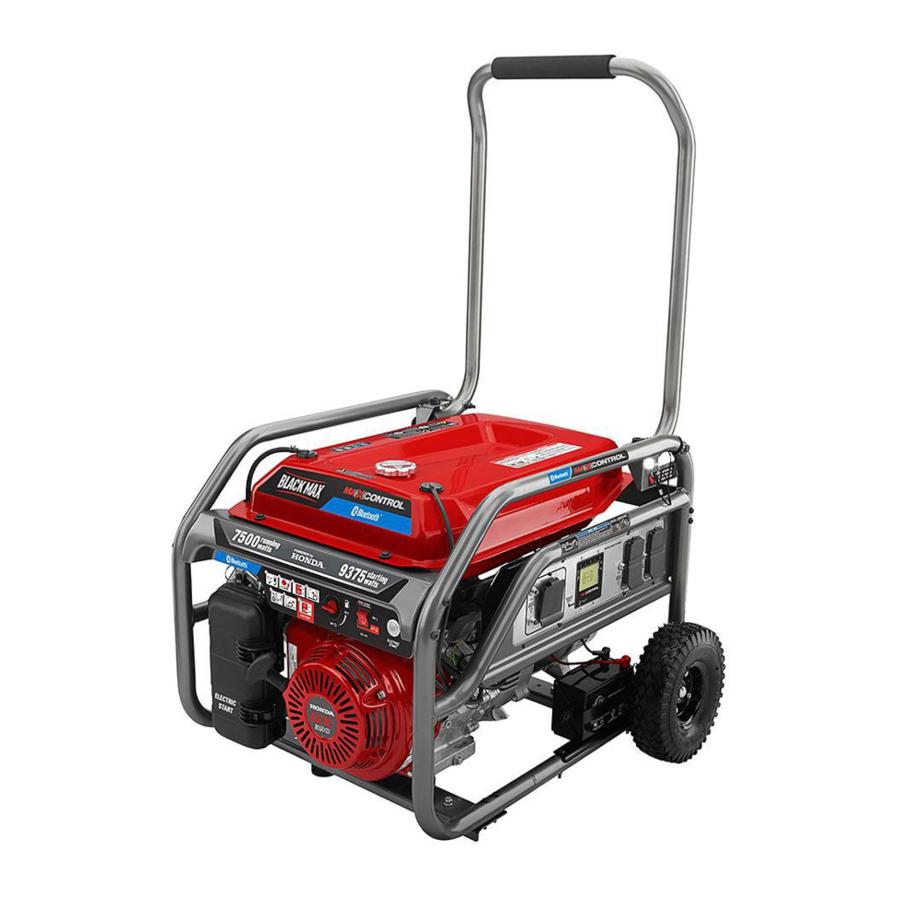

DEVICE OVERVIEW

1. On/off switch
2. Start button
3. Fuel valve
4. On
5. Off
6. Recoil starter grip
7. Run switch

1. Pull choke out to START position
2. Push choke in to RUN position

STARTING THE ENGINE

See Figures 1 - 2.
NOTICE:
On a level surface with the engine off, check the lubricant level before each use of the generator.
NOTE: If location of generator is not level, the unit may not start or may shut down during operation.

• Unplug all loads from the generator.
• Verify the run switch is in the ON position.
• Turn the fuel valve to the ON (I) position.
• Turn the on/off switch ON ( l ).
• Pull the choke out to the START position.
  NOTE: If engine is warm or the temperature is above 50˚F, push the choke in to the RUN position.
• Press the start button to start the engine.
  NOTE: The LCD display must be on for the engine to be started with the start button. If the LCD display is off, press and release the pairing button or toggle the on/off switch off and on.
  NOTE: The battery may require charging before the generator can be started using only the start button. Until then, the generator can be started by pulling the recoil starter grip. Once the generator is started, the battery will charge as the unit runs.
• The generator can also be started by pulling the recoil starting grip until the engine runs.
  NOTE: Do not allow the grip to snap back after starting; return it gently to its original place.
• Allow the engine to run for 15-30 seconds, then move the choke to the RUN position.

STOPPING THE ENGINE

See Figure 1.
To stop the engine under normal operating conditions:

• Remove any load from the generator.
• Turn the fuel valve to the OFF (O) position.
• Turn the on/off switch OFF ( O ).

To stop the engine in an emergency situation:

• Put either the on/off switch or the run switch in the OFF (O) position.

While operating and storing, keep at least 3 feet of clearance on all sides of this product, including overhead. Allow a minimum of 30 minutes of "cool down" time before storage. Heat created by muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.
