Alecto FR-10 - Walkie-Talkie Manual

INTRODUCTION

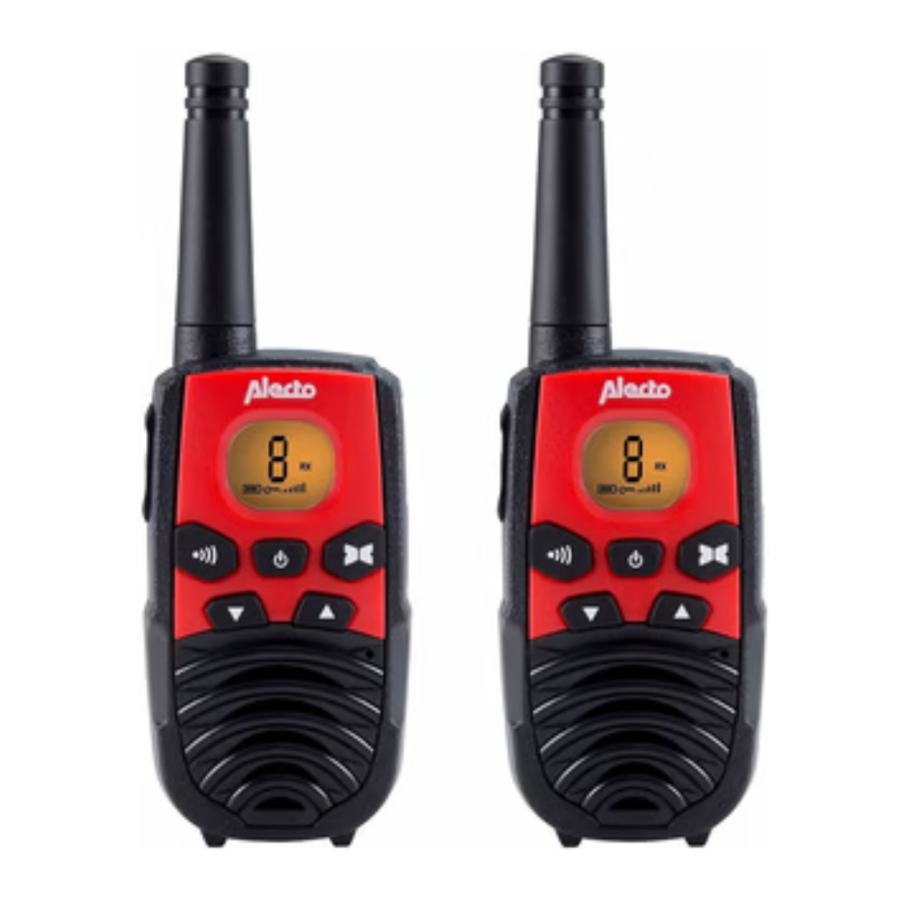

The Alecto FR-10 is a PMR-446 Radiophone. This radiophone allows for free-of-charge communication back and forth, as well as communication with other (Alecto) radiophones as long as these meet the PMR446 standard.
The Alecto FR-10 is in accordance with the essential requirements and provisions as described in the European Directive 1999/5/EC. The declaration of conformity is available on the website www.alecto.nl

POWER SOURCE

The FR-10 works on 3 REGULAR AAA penlite batteries.

1. First, remove the belt clip by pressing the lock tab back and pushing the belt clip upwards and out of the radiophone.
2. Open the battery compartment and install the batteries as indicated. Pay attention to the correct polarities (+ and -).
3. Close the battery compartment and put the belt clip back on the radiophone.

TECHNICAL SPECIFICATIONS

DISPLAY FUNCTIONS

shows the selected channel
battery capacity indication

= batterij OK
flashing = battery almost empty

: turns on when the SCAN function is activated
: turns on while sending
: turns on while receiving
: shows the volume level
: switches on when the key lock is activated

USE

Attention: always set both radiophones to the same channel
Attention: Don't forget that other people with a radiophone can receive your signal also, even when it's of a different model or brand.
You can also receive signals from other radiophones. In this case, you can try and select a different channel.

Power on/off:
Press and hold the button for 2 seconds to switch the FR-10 on or off.
Transmitting:
Press the PTT button to sending.
(PTT = Push To Talk )
Hold the radiophone approximately 5cm from your mouth and speak into the microphone.
Receiving:
Release the PTT button to receive.
Call tone:
Press the button to transmit a call tone.
Switching channels:
Press the button and then use or to select the correct channel.
Press the PTT button to confirm the selected channel.
Volume control:
Use the button or to change the volume.
Roger beep:
When you release the PTT button, the FR-10 will send a tone to inform the other party he or she can talk back.
This tone is always on and cannot be switched off.
Channel scan:
Simultaneously press and hold and , after 1 second the display will show SC and the FR-10 will then scan all channels.
Received signals will be shown and the scan will then continue.
Press the PTT button to stop the scan.
Monitoring:
Simultaneously press and hold and , after 1 second the display will show , the noise reduction will be switched off and you can also hear the weaker transmissions on the current channel.
Simultaneously hold and again for 1 second to cancel this function.
Key lock:
Press and hold the button, after 1 second the display will show . Changing channels or the volume level will now no longer function, but you can still receive and transmit.
Press and hold the button again for 1 second to cancel the key lock function.

USER TIPS

GENERAL:

• The FR-10 is a transmitter/receiver working with radio waves on the 446 MHz band. Its signal transmission can be affected by external influences such as other radiophones, transmitters, wireless phones, etc. When your radiophone is being interfered with or causes interference, simply changing the channel usually solves this problem.
• The use of this radiophone is permitted in all the countries of the EU. If you want to bring the FR-10 to countries outside the EU, you should consult the local restrictions on the use of PMR446 equipment.
• Don't forget that the signal of the FR-10 can also be heard by radiophones or receivers other than yours.
• It is in no way allowed to make any changes to the electronics or the antenna of the FR-10. Service must be performed by qualified service personnel only.
• Never use the FR-10 outdoors during thunderstorms.

MAINTENANCE:

• Only clean the FR-10 with a moist cloth.
• Never place the radiophone in direct sunlight or humid environments.
• Prevent water and/or sand from penetrating the FR-10.
• In case of any problems, always check first whether the FR-10 does work correctly on a different location.

RADIO CONNECTION:

• The FR-10 has an effective range from up to 7km. This range can be affected by local conditions such as high buildings, high voltage posts and overhead wires. An optimal range is achieved when the radiophone has a clear sight of the receiver.

ENVIRONMENT:

• When discarding your radiophone, please return it to your dealer. They can guarantee environmentfriendly disposal.
• You can return exhausted batteries to the dealer of these radiophones or to your local collection point for small chemical waste.
• Never dispose of empty or exhausted batteries as normal domestic waste.

If you note any anomalies, first read the user's manual. If you cannot find any solution to your problem, please contact Alecto customer service on the phone number 073 6411 355 (Netherlands) or 03 238 5666 (Belgium) or via internet at www.alecto.nl
