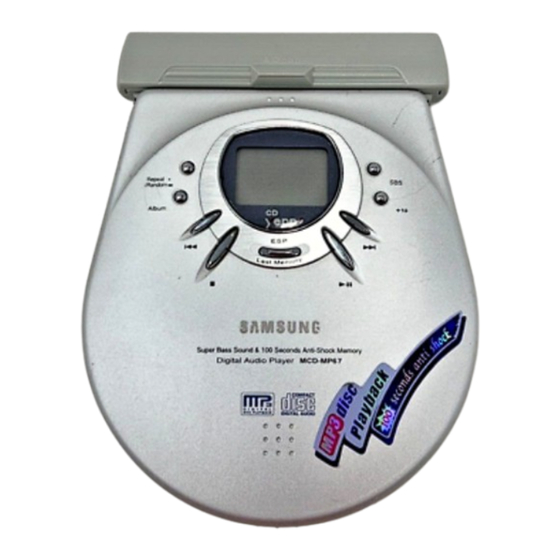

Samsung MCD-MP67 Instruction Manual

Samsung MCD-MP67 Instruction Manual

Portable mp3-cd player mp3-cd/cd-r/rw playback

Advertisement

Portable MP3-CD Player
MCD-MP67
MP3-CD/CD-R/RW Playback
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCD-MP67 and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung MCD-MP67

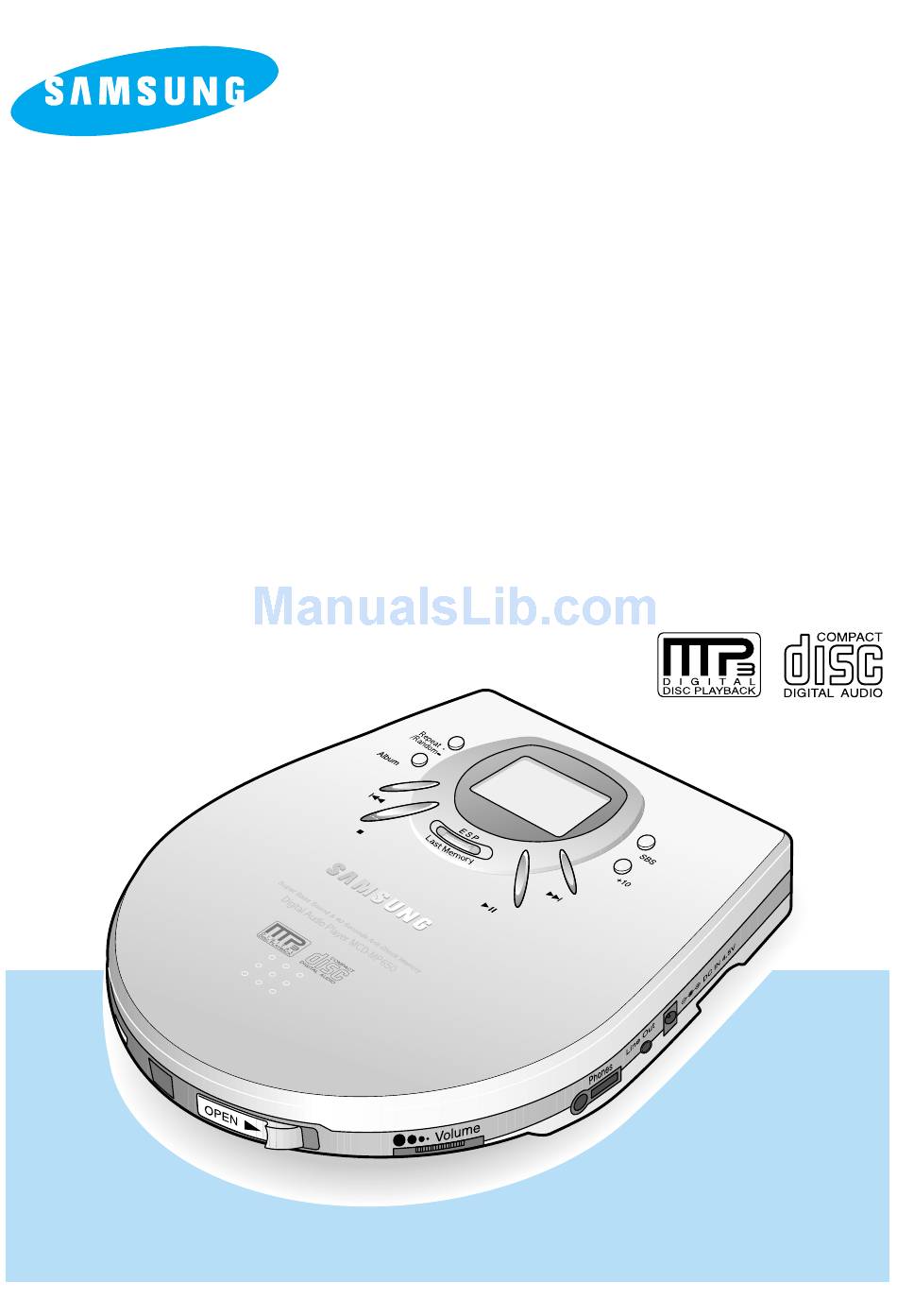

  • Page 1 Portable MP3-CD Player MCD-MP67 MP3-CD/CD-R/RW Playback Instruction Manual...
  • Page 2: Main Features

    Normally, one MP3 file has a capacity of 4MB, therefore approximately 170 files can be recorded on a single disc. Shock Prevention Even if the CD player is knocked or jolted while listening to a CD, the sound will not skip but will continue...
  • Page 3: Table Of Contents

    Contents Safety Warnings Buttons and Controls Preparation before using your unit How to Connect Using the rechargeable battery Using a standard battery Using the battery pack CD Playback MP3-CD Playback Features Skip Search Repeat Function Random Function SBS Function ESP Function Last Memory Function Album Function Maintaining and looking after your unit...
  • Page 4: Safety Warnings

    Safety Warning Take care not to allow dust or other contami- nants to come into con- tact with your CD player. Do not put anything other than a CD (CD-R or CD- RW) inside your CD player. Such actions will dam- age your CD player.
  • Page 5: Environmental Information

    Earphones Road safety Do not use the earphones while riding a bicycle, driving any kind of motor vehicle or motorcycle. This is very dangerous and is illegal in certain regions. It is dangerous to wear earphones at high volume while crossing roads. In order to protect your hearing Do not wear the earphones with the volume set too high.
  • Page 6: Buttons And Controls

    Buttons and Controls Main Unit 5 6 2 Accessories Earphone Battery Pack...
  • Page 7: Volume Control

    Stop( ) button At stop mode, press stop again or wait for a while to switch the unit Power “OFF” Skip/Search( button Album button (Refer to page 19.) Press this button to select MP3 tracks from an album as a single unit. Repeat/Random button (Refer to page 16.) Press and release when you wish to repeat a track.
  • Page 8 Buttons and Controls Remote Play/Pause button Mode button HOLD switch Skip/Search( button Volume control Stop button Earphone Connection Jack Unit Connection Jack...
  • Page 9 Display Operation Indicator. Displayed when CD is inserted. Displayed when MP3-CD is inserted. Displayed when songs are selected randomly. Displayed when one or all tracks are repeated. Album number, track number and playing time are displayed. SBS Indicator. ESP Indicator. Replace Battery Warning Indicator (If battery is fully discharged, the indicator will flash.)
  • Page 10: Preparation Before Using Your Unit

    Connection to External Device (if necessary) Your CD Player may be connected to the AUX IN jack of an external device. 1. Reduce the volume of the external device. 2. Connect the Line Out jack to the Input jack of the device.
  • Page 11: Using The Rechargeable Battery

    Using the rechargeable battery Strip the sheath covering the terminals of the rechargeable battery before charging it. As shown in the illustration, with a knife carefully strip the sheath of the negative (-) terminal by 6 mm. If the sheath is not stripped, charging will not function.
  • Page 12: Using A Standard Battery

    Preparation before using your unit Using a standard battery Open the cover of the battery compartment. Carefully check the correct orientation of the positive and negative terminals of the battery. Replace the cover. Use two AAA type 1.5 V batteries. Use two AAA alkaline batteries.
  • Page 13: Using The Battery Pack

    Using the battery pack Open the cover of the battery compartment. Carefully check the correct orienta- tion of the positive and negative terminals of the battery. Replace the cover. Use two AA type 1.5 V batteries. Slide the battery pack into the groove and insert into the battery pack connection port on the rear of the unit.
  • Page 14: Cd Playback

    CD Playback Push the OPEN button to open the door. Insert a CD. Push the door to close it. Press the Play/Pause ) button. Once the CD is recog- nised, playback com- mences. To stop playback, press the Stop ( ) button.
  • Page 15: Mp3-Cd Playback

    MP3-CD Playback This product is an MP3-CD and audio CD player. It cannot record/save mp3 files. Push the OPEN button to open the door, and insert an MP3-CD. Push the door to close it. Press the Play/Pause ) button. The inserted MP3-CD will be scanned for about 30~90 seconds.
  • Page 16: Features

    Features Skip Press and release the playback of a CD. Press the button to play the next track. Press the button to go back the current track of the beginning. (Briefly press the track.) Press the button while the unit is in “stop” (no playback) mode.
  • Page 17: Repeat Function

    Repeat Function Press the Repeat/Random button. Each time the button is pressed, REP1 and REP ALL are selected alternately. If you want to playback the cur- rent track again, select REP1. If you want to repeat playback of all songs, select REP ALL. Random Function Press the Repeat/Random button and keep depressed.
  • Page 18: Sbs Function

    Features SBS Function Press the SBS button. The SBS function will enable you to maximise your listening enjoyment with dynamic reproduction of low- pitched sounds such as beating drums or galloping horses. Each time the SBS button is pressed, SBS will be turned on and off alternately.
  • Page 19: Last Memory Function

    Use of this function will allow you to conserve battery life as it prevents the CD Player from being turned on unintentionally if a button is pressed inadvertently. This function is only available during...
  • Page 20: Album Function

    Features Album Function Press the Album button for a short time. Main Unit It moves to the next album. example) By pressing the Album button for a short time during Kevin02.mp3 being played, playback of Summer05.mp3 that is the 1st track of the 2nd album will begin.
  • Page 21 Playback sequence of albums and tracks In case of Window Explorer display. The arrows indicates playback sequence of albums and tracks. Albums with .jpg, .wav or .doc only are not audio files and therefore will be skipped. (E) CD-ROM drive ALBUM 01 Skipped Kevin01.mp3...
  • Page 22: Maintaining And Looking After Your Unit

    Maintaining and looking after your unit Looking after your CDs Wash the disc with a neutral detergent diluted in water, and then wipe gently with a soft dry cloth from the center of the disc to the outside. Handling your CDs Carefully pick up the disc by its edge without touching the disc’s surface.
  • Page 23: Troubleshooting Guide

    Troubleshooting Guide Problem Unit has no power. Playback does not function. Earphones don’t work. A sound or track is skipped. Some of the MP3 files on a CD are not recognised. Check Did you insert the battery with the correct polari- Is the battery exhausted? Is the AC adaptor connected correctly? Is the door open?
  • Page 24: Specification

    Specification Frequency range Signal/noise ratio Channel Separation Total harmonic distortion D/A conversion Earphones output (16 ) Line out output (47K ) Scope of playback supported DISC Sizes Diameter Dimensions 20Hz ~ 20KHz 80dB 60dB 0.08% 1 bit 4 OVER SAMPLING 250~ 260 mV(RMS) 670mV(RMS) Bit Rate: All available...
  • Page 25 Memo...
  • Page 27 AH68-00784B...
