Paradyne ACCULINK 3162 Quick Reference Manual

Dsu/csu
Hide thumbs Also See for ACCULINK 3162:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

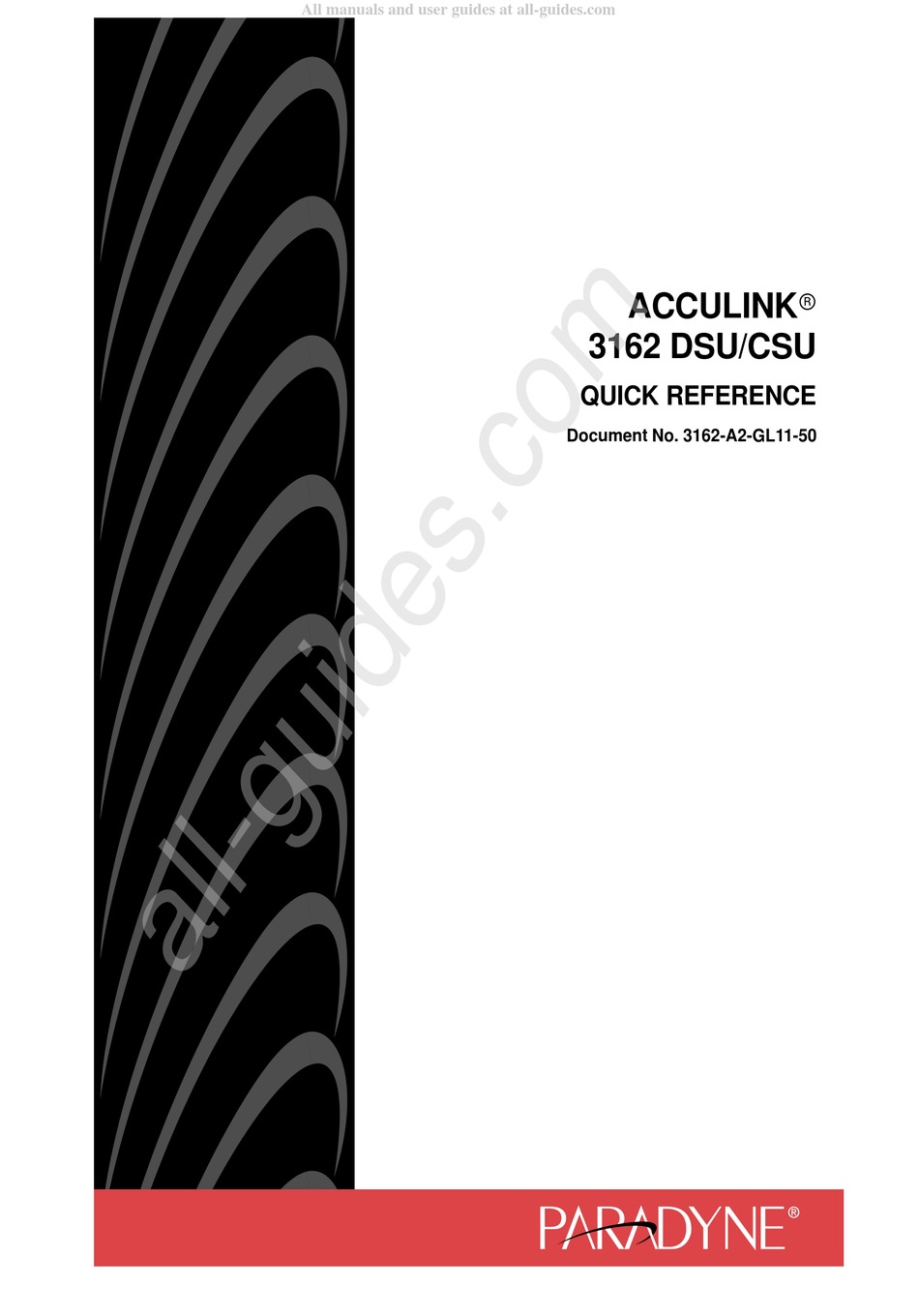

ACCULINKr
3162 DSU/CSU
QUICK REFERENCE
Document No. 3162-A2-GL11-50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACCULINK 3162 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paradyne ACCULINK 3162

Summary of Contents for Paradyne ACCULINK 3162

  • Page 1 All manuals and user guides at all-guides.com ACCULINKr 3162 DSU/CSU QUICK REFERENCE Document No. 3162-A2-GL11-50...

  • Page 2: Warranty, Sales, Service, And Training Information

    Further, Paradyne Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of Paradyne Corporation to notify any person of such revision or changes.

  • Page 3: Quick Reference

    It also helps us maintain competitive prices for our products. Complete documentation for this product is available at www.paradyne.com. Select Library → Technical Manuals → T1/E1 Digital Access Devices.

  • Page 4: Quick Start Procedure

    22. The following procedure is for experienced DSU/CSU users who are familiar with the 3162 DSU/CSU installation process and have no special requirements for their application. See the ACCULINK 3162 DSU/CSU User’s Guide for more information. " Procedure 1. Attach the power cord to the rear of the DSU/CSU and the other end to a grounded 115 VAC power outlet.

  • Page 5: Displaying Or Editing Configuration Options

    All manuals and user guides at all-guides.com 10BaseT NETWORK PORT PORT PORT 10Base-T 3162 PORT 2 EXT CLK DSU/CSU POWER PORT 1 MODEM DSX-1 3162 DSU/CSU NETWORK POWER NETWORK SERIAL PORT PORT 10BaseT SNMP MANAGER 00-16828 Cabling Example Displaying or Editing Configuration Options "...

  • Page 6: Saving Edit Changes

    All manuals and user guides at all-guides.com Saving Edit Changes " Procedure To save edit changes: 1. From the last edit screen, select Save. The Save Configuration To screen appears. 2. From the Save Configuration To screen, select a configuration option set (Current, Customer 1, or Customer 2).

  • Page 7: Configuring Ds0 Channels

    All manuals and user guides at all-guides.com Configuring DS0 Channels To allocate DS0 channels, begin by defining the logical channel configuration for the network interface, and then the DTE Drop/Insert (DSX-1) interface, and then any ports, if desired. Displaying DS0 Channel Assignments "...
  • Page 8 All manuals and user guides at all-guides.com Configuring DS0 Channels for Robbed Bit Signaling " Procedure To specify DTE Drop/Insert (DSX-1) channels used to carry voice information: 1. From the Main Menu screen, select Configuration. The Load Configuration From screen appears. 2.
  • Page 9 All manuals and user guides at all-guides.com Allocating Data Ports Using the Block or ACAMI Assignment Method " Procedure To assign data ports by the block or ACAMI method: 1. From the Main Menu screen, select Configuration. 2. From the Load Configuration From screen, select Current. 3.

  • Page 10: Configuration Options

    All manuals and user guides at all-guides.com Configuration Options Configuration options are accessed from the Configuration branch of the asynchronous terminal interface menu. Main Status Test Configuration Control Call Administer Cross Connect Display Select Setup Password Status LEDs LEDs Call Start Reset System and...
  • Page 11 All manuals and user guides at all-guides.com Factory default configuration options are shown in boldface type in the following tables. Table 1. Network Interface Configuration Options Option Factory 1 Factory 2 Comments/Description Line Framing Line Framing Selects D4 or ESF framing format Selects D4 or ESF framing format.
  • Page 12 All manuals and user guides at all-guides.com Table 2. DTE Interface Configuration Options Option Factory 1 Factory 2 Comments/Description Enable Enable Enables the use of the DTE Enables the use of the DTE Interface Status: Interface Status: Drop/Insert port. Disable Disable Line Framing Line Framing...
  • Page 13 All manuals and user guides at all-guides.com Table 3. Synchronous Data Port Configuration Options (1 of 2) Option Factory 1 Factory 2 Comments/Description E530 E530 V.35 V.35 Selects the port type: EIA-530A, Selects the port type: EIA-530A, Port Type: Port Type: V.35, RS449, or X.21.
  • Page 14 All manuals and user guides at all-guides.com Table 3. Synchronous Data Port Configuration Options (2 of 2) Option Factory 1 Factory 2 Comments/Description Disable Disable DTLB DTLB Port-initiated Loopbacks, allows Port (DTE) Initiated Port (DTE) Initiated Loopbacks to be initiated through b k t b i iti t d th Loopbacks: DCLB...
  • Page 15 All manuals and user guides at all-guides.com Table 5. Cross Connect – Sync Data Port Assignment Options Option Factory 1 Factory 2 Comments/Description Network Network Assigns this port to channels on Assigns this port to channels on Assign To: the Network or DSX-1 T1 interface, or to another port.
  • Page 16 All manuals and user guides at all-guides.com Table 6. General Configuration Options Option Factory 1 Factory 2 Comments/Description Enable Enable Generate Yellow Generate Yellow Yellow alarm is generated by the Yellow alarm is generated by the Alarm Signals: DSU/CSU on LOS, LOF, or AIS. Disable Disable Enable...
  • Page 17 All manuals and user guides at all-guides.com Table 7. User Interface – Communication Port Configuration Options (1 of 2) Option Factory 1 Factory 2 Comments/Description Mgmt Mgmt ASCII ASCII Controls how the COM port is Controls how the COM ort is Port Use: Port Use: used.
  • Page 18 All manuals and user guides at all-guides.com Table 7. User Interface – Communication Port Configuration Options (2 of 2) Option Factory 1 Factory 2 Comments/Description Specifies the period of inactivity (1 to 60 minutes) that causes a (1 to 60 minutes) that causes a Disconnect Time: Disconnect Time: disconnect if Inactivity Timeout is...
  • Page 19 All manuals and user guides at all-guides.com Table 9. User Interface – Telnet Sessions Configuration Options Option Factory 1 Factory 2 Comments/Description Enable Enable Specifies whether the DSU/CSU Telnet Session: Telnet Session: responds to Telnet session d t T l Disable Disable requests.
  • Page 20 All manuals and user guides at all-guides.com Table 11. Alarm Configuration Options Option Factory 1 Factory 2 Comments/Description Disable Disable Does not display alarm messages. ASCII Alarm ASCII Alarm Messages: Sends alarm messages to COM port. Provides the option to allow Enable Enable automatic dial-out to send alarm...
  • Page 21 All manuals and user guides at all-guides.com Table 12. Management and Communication – Communication Protocol Configuration Options Option Factory 1 Factory 2 Comments/Description [Text Field] [Text Field] The IP address needed to access The IP address needed to access Node IP Adr Node IP Adr: the DSU/CSU.
  • Page 22 All manuals and user guides at all-guides.com Table 13. Management and Communication – General SNMP Management Configuration Options Option Factory 1 Factory 2 Comments/Description Disable Disable Specifies whether the DSU/CSU SNMP Management SNMP Management: responds to SNMP session d t SNMP Enable Enable requests.
  • Page 23 All manuals and user guides at all-guides.com Table 15. Management and Communication – SNMP Traps Configuration Options Option Factory 1 Factory 2 Comments/Description Enable Enable Specifies whether SNMP traps are SNMP Traps SNMP Traps: sent over the SNMP management th SNMP Disable Disable link.

  • Page 24: Important Safety Instructions

    All manuals and user guides at all-guides.com Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. This product is intended to be used with a 3-wire grounding type plug – a plug which has a grounding pin.
  • Page 25 The authority to operate this equipment is conditioned by the requirements that no modifications will be made to the equipment unless the changes or modifications are expressly approved by Paradyne Corporation. CANADA – EMI NOTICE: This Class A digital apparatus meets all requirements of the Canadian interference-causing equipment regulations.

  • Page 26: Government Requirements And Equipment Return

    All manuals and user guides at all-guides.com Government Requirements and Equipment Return Certain governments require that instructions pertaining to CSU connection to the telephone network be included in the installation and operation manual. Specific instructions are listed in the following sections. Notice to Users of the United States Telephone Network 1.
  • Page 27 — Internet: Visit the Paradyne World Wide Web site at http://www.paradyne.com — Telephone: Call our automated call system to receive current information or to speak with a company representative.

  • Page 28: Notice To Users Of The Canadian Telephone Network

    All manuals and user guides at all-guides.com Notice to Users of the Canadian Telephone Network The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s).
