Table of Contents

CanadaDocks

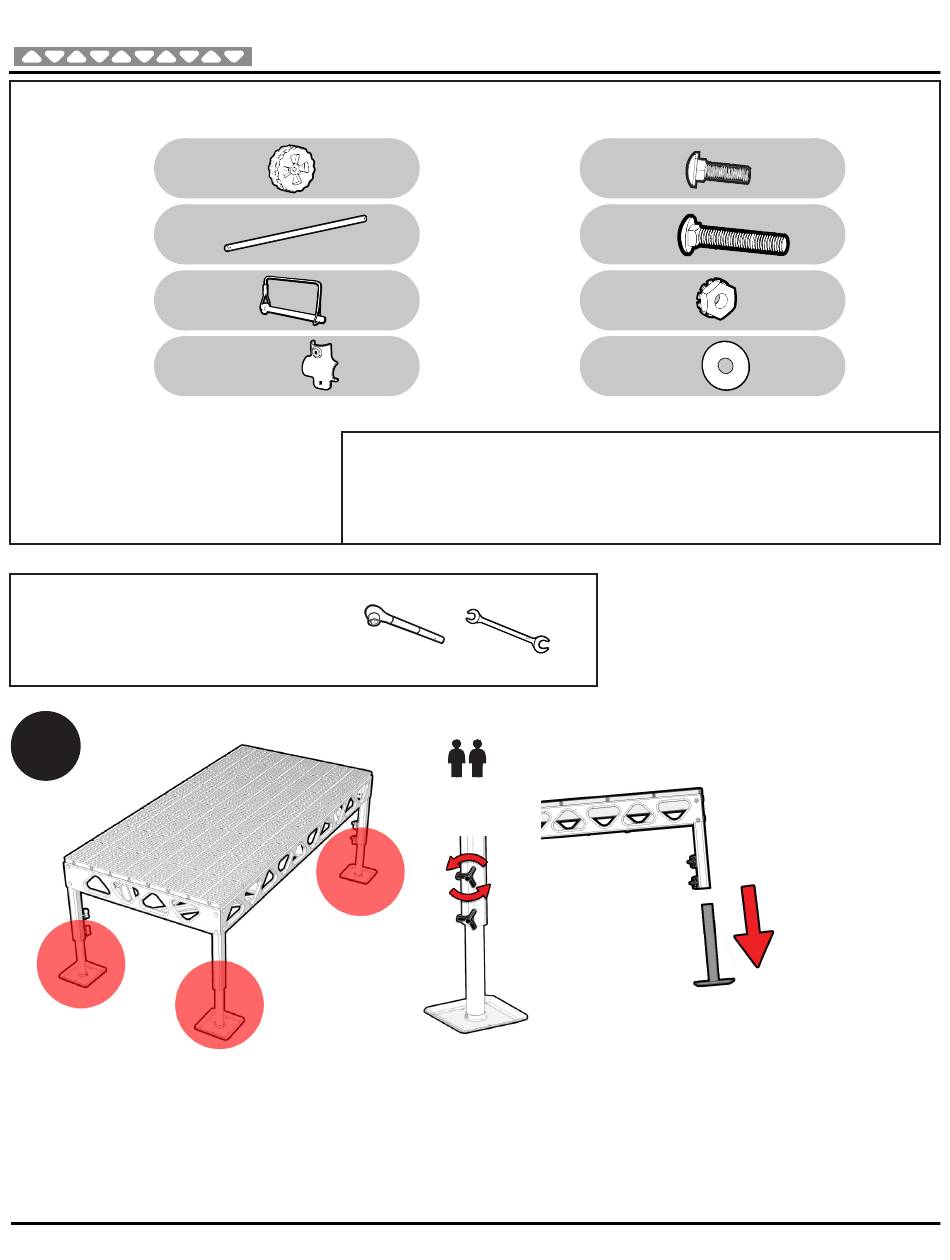

INCLUDED IN KIT:

WL1
AX2
GP1
WKAC1

TOOLS REQUIRED:

•
9/16" wrench or 9/16" socket with
ratchet to suit
1
Loosen the adjustment clamps on each of the dock legs by turning the clamp knobs counter-clockwise
(see image above) . This will free the legs so they may be taken off the dock. It is recommended to use one
person to hold a corner of the dock upwards while another person slides one leg off the dock at a time.
Do this for any legs which will be used in the installation of the axle assembly.
CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada LOG 1A0 | 1-877-434-0359 | www.canadadocks.ca
ca
TM
.
STANDING DOCK WHEEL KIT (4x8 DOCK)
2
X
1
X
2
X
X4
PLEASE NOTE:
Some of the illustrations shown in these instructions show the assembly
of 2 axle kits for your convenience. The parts included with this kit are for
1 axle kit.
HELP
RECOMMENDED
CB15S
CB35S
NL38
W452
X2
X2
X4
X2
Page 1
Rev 03 02.14.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STANDING DOCK WHEEL KIT and is the answer not in the manual?

Questions and answers

Related Manuals for Canada Docks STANDING DOCK WHEEL KIT

Summary of Contents for Canada Docks STANDING DOCK WHEEL KIT

  • Page 1 CanadaDocks STANDING DOCK WHEEL KIT (4x8 DOCK) INCLUDED IN KIT: CB15S CB35S NL38 WKAC1 W452 PLEASE NOTE: Some of the illustrations shown in these instructions show the assembly of 2 axle kits for your convenience. The parts included with this kit are for 1 axle kit.
  • Page 2 CanadaDocks STANDING DOCK WHEEL KIT (4x8 DOCK) Unscrew any carriage Bolts connected to the feet (see above image). The legs will be used in assembling the axle in step 3. WKAC1 CB35S CB15S WKAC1 CB15S CB35S NL38 WKAC1 NL38 Leg from Step 2...
  • Page 3 CanadaDocks STANDING DOCK WHEEL KIT (4x8 DOCK) W452 W452 Slide the Wheel(WL1) and Washer (W452) onto the assembled frame (See above). Slide open the retaining wire on the Hitch Pin (GP1). Place the pin into the holes on either side of the Axle (AX1) (See above). Close the retaining wire on the Hitch Pin (GP1).
  • Page 4 CanadaDocks STANDING DOCK WHEEL KIT (4x8 DOCK) CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada LOG 1A0 | 1-877-434-0359 | www.canadadocks.ca Page 4 Rev 03 02.14.23...
