CanadaDocks

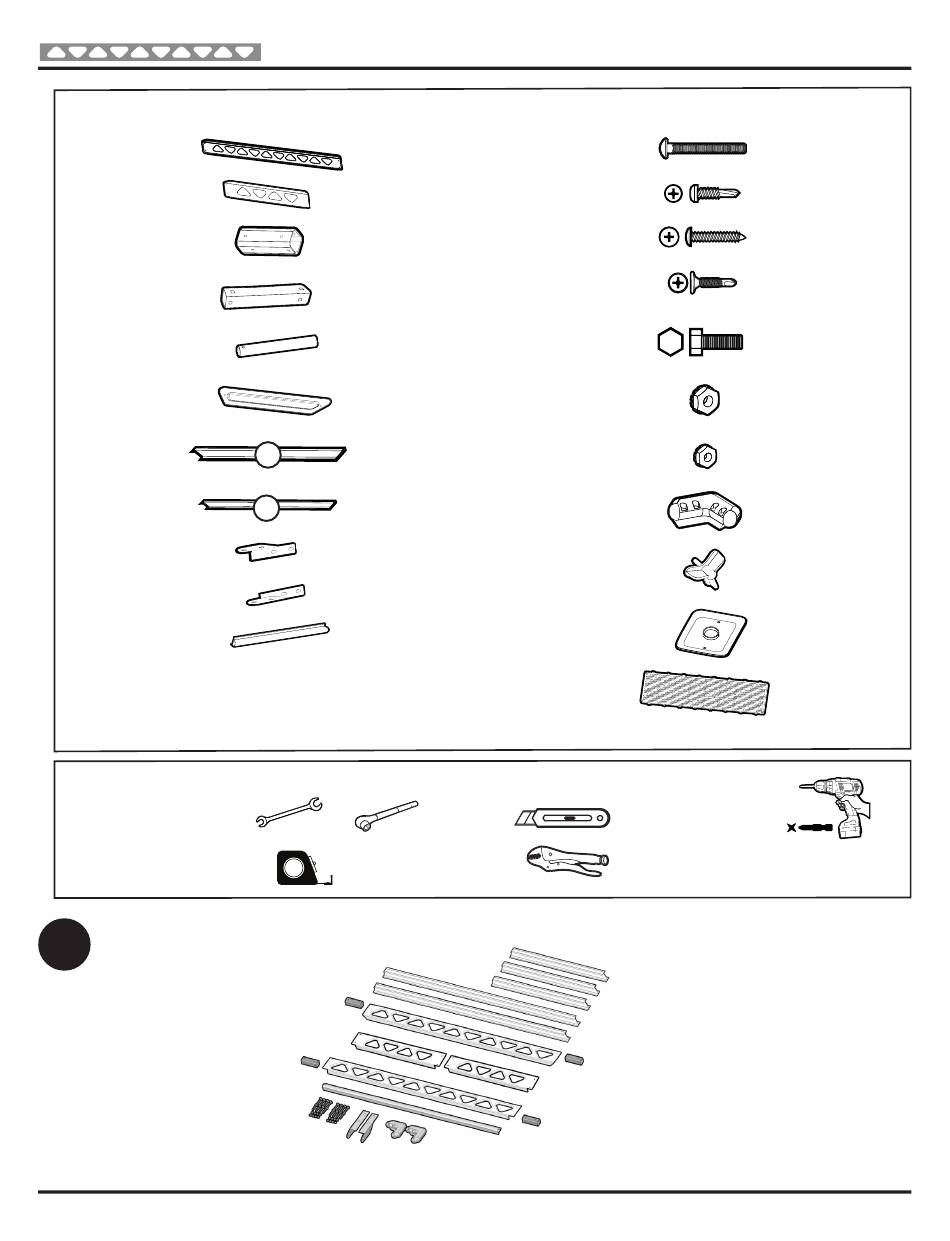

INCLUDED IN KIT:
T8
T4
SSTUB
S1/S2/S4**
GL17/GL30/GL48
CF1
J47
J95
APB1
APB2
PBR8
*
The model number depends on the length of the legs used for the dock
TOOLS REQUIRED:
9/16" Wrench or
9/16" Socket with Ratchet
Measuring Tape
1
CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca
TM
ACCESS PLATFORM INSTALLATION & ASSEMBLY(
X2
X2
X2
X2
X2
*
X4
X3
47"
X2
95"
X1
X1
X2
OR
Layout your access platform on a flat area for assembly.
CB35S
ST075
STR1
STF075
B255
NL38
NL25
CBR1
AK1
FTP1
DK1X4
**
The amount of Adjustment Knobs may vary depending on leg length for water depth
Utility Knife
Locking Pliers
X18
X12
X42
X32
X8
X18
X8
X2
X4
X2
X8
#2 & #3 Phillips Drill Bit with
Drill
*
Phillips Drill Bit is included with the kit
|
Rev 06 06/30/22
4x8 STANDING)
**
Page 1
Advertisement
Related Manuals for Canada Docks ACCESS PLATFORM
Summary of Contents for Canada Docks ACCESS PLATFORM
- Page 1 Phillips Drill Bit is included with the kit Locking Pliers Measuring Tape Layout your access platform on a flat area for assembly. Page 1 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 06 06/30/22...
- Page 2 CanadaDocks ACCESS PLATFORM INSTALLATION & ASSEMBLY( 4x8 STANDING) SSTUB S1/S2/S4* SSTUB SSTUB CB35S NL38 Model number depends on the length of the legs used for the dock. Page 2 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca...
- Page 3 CanadaDocks ACCESS PLATFORM INSTALLATION & ASSEMBLY( 4x8 STANDING) B255 NL25 47” STF075 Place and fasten two screws side by side from each other on each end of the joist. Ensure the long end of the joist is facing upwards when placing joists.
- Page 4 CanadaDocks ACCESS PLATFORM INSTALLATION & ASSEMBLY( 4x8 STANDING) CB35S NL38 FTP1 GL17/GL30/GL48 GL17/GL30/GL48 Foot Plate Up Foot Plate Down Depending on the conditions of your lake bottom you may change the orientaton of the feet. Adjustment Knobs for 2-4 Ft Legs Adjustment Knob &...
- Page 5 CanadaDocks ACCESS PLATFORM INSTALLATION & ASSEMBLY( 4x8 STANDING) 95” Page 5 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 06 06/30/22...
- Page 6 CanadaDocks ACCESS PLATFORM INSTALLATION & ASSEMBLY( 4x8 STANDING) STF075 Place and fasten two screws side by side from each other on each end of the joist. Ensure the long end of the joist is facing upwards when placing joists. Page 6 CanadaDocks Inc.
- Page 7 CanadaDocks ACCESS PLATFORM INSTALLATION & ASSEMBLY( 4x8 STANDING) PLEASE NOTE: It is suggested to use a 4” or longer Philips #3 Bit for fastening joist intersections. STF075 Joist Intersections CLAMP INTERSECTION FASTEN TWO SCREWS DIAGONAL FASTEN INTERSECTION WITH SCREWS FROM ONE ANOTHER At each joist intersection clamp both interlapping joists.
- Page 8 Fit the bracket over the the carriage bolts(CB35S), see above image. Pull the bracket upwards until the carriage bolt heads slip into the narrow slots of the bracket. Fasten the existing nuts and retighten the carriage bolts in this position. Perform this Step for both ends of the access platform. Page 8 CanadaDocks Inc.
- Page 9 4x8 STANDING) Loosen nuts. Using two people connect the access platform by hooking the bracket onto the two loose bolts. Do this for both brackets. Page 9 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca...
- Page 10 Place a corner bumper(CBR1) on the corner of the dock. Slip the indented lip of the corner bumper against the edge of the dock. Fasten a 1” screw (STR1) for each indent on the top of the corner bumper. Do this for both corners on the access platform.
- Page 11 1 Foot Place the P-Bumper(PBR8) along the edge of the access platform. Starting two inches from the edge fasten screws(STR1) at 6 inch intervals on the top of the P-Bumper. For the bottom of the P-Bumper add screws(ST075) at 1 foot intervals starting two inches from the edge.
- Page 12 Approx. 4 Feet Measure the distance between the Corner Bumper and the end of the Access Platform(This should be approximately 4 Feet ). Cut the 8 Foot P-Bumper into two pieces to suit both sides of the dock. Page 12 CanadaDocks Inc.
- Page 13 CanadaDocks ACCESS PLATFORM INSTALLATION & ASSEMBLY( 4x8 STANDING) STR1 ST075 PBR8 ST075 STR1 Every 6 Inches Every 1 Foot Page 13 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 06 06/30/22...
