- Page 1 CanadaDocks Do-It-Yourself Aluminum Dock System DO-IT-YOURSELF SMALL FLOATING HEXAGON ASSEMBLY INSTRUCTIONS...

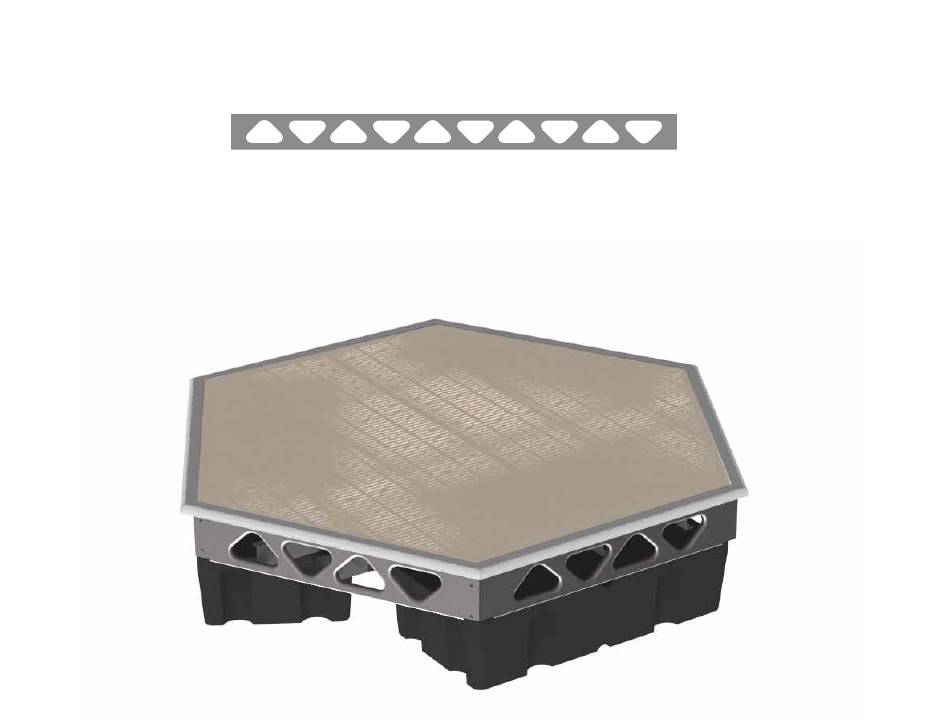

- Page 2 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS 3x Bags 92” 74” 82” 53” Joist / P-Bumper / Trim Screws (A) 12” x 3/4” Self Drilling Tek Screws Qty 57 (H) D-Washers Qty 12 (Q) Joist 82” Qty 3 (R) Joist 74” Qty 2 (I) Corner Brackets Qty 6 Decking Screws...
-
Page 3: Tools Required
CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS TOOLS REQUIRED: Safety Glasses 13/32” Drill Bit Measure Tape 9/16” Socket with ratchet to suit 9/16” Box Wrench Utility Knife Power Drill Roll of String Circular Saw Magic Marker Locking Pliers Manufactured by: CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca... - Page 4 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS Ensure you have all needed components before beginning the build. Please see Page 1 for full parts list. Attach Trusses (O) using Hexagon Corner Bracket (I), Carriage Bolts (D) and Kep-Locknuts (E) to create the outer frame of the hexagon.
- Page 5 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS 16” 16” 16” 16” Measure 16” from center of previous Joist and mark Measure 16” from the previous line and mark with with permanent marker on the Truss. Do this on both permanent marker. Do this on both the left and Using locking pliers to hold in place, line up Joists the left and right side of the prior Joists.
- Page 6 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS 19” 19” 19” Using the string, measure 19” from the edge of Truss Using the string, measure 19” from the edge of Truss and mark on the length of Joists with permanent and mark on the length of Joists with permanent Using locking pliers to hold in place, line up Joists marker.
- Page 7 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS Position of float slots to be drilled Float Slot Ensure the float is square and evenly placed against Connect the floats to the dock frame with 3” Gal- Place the float unto the dock frame aligning the float the joists below.
- Page 8 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS Connect the floats to the dock frame with 3” Gal- vanized Carriage Bolts (C) , D-Washers (H), Lock- Washer (G) and Kep-Nuts (F). Install carriage bolt Place the float unto the joists below. Align the float Install eyebolt assembly at the location indicated in assembly at locations indicated in red.
- Page 9 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS Tie a string to the connecting points of the two halves to create a straight edge. Install first sheet of ThruFlow decking (J) centered and aligned against the straight edge. Install using #12x2” Self Drilling With Floats firmly attached flip the frame so Tek Screws (B).
- Page 10 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS Align the next piece square to the pieces beside and Set circular saw to a depth that will not cut into Set circular saw to a depth that will not cut into above it as shown in diagram. Install using #12x2” frame (1-1/8”).
- Page 11 CanadaDocks SMALL FLOATING HEXAGON INSTRUCTIONS Center of trusses for in- stallation indicated in red Positioning Three P-Bumper Starting at the center of truss attach P-Bumper (L) us- When installing the P-Bumper (L) ensure the start and end of each piece is appproximately positioned at the ing #12x¾”...
