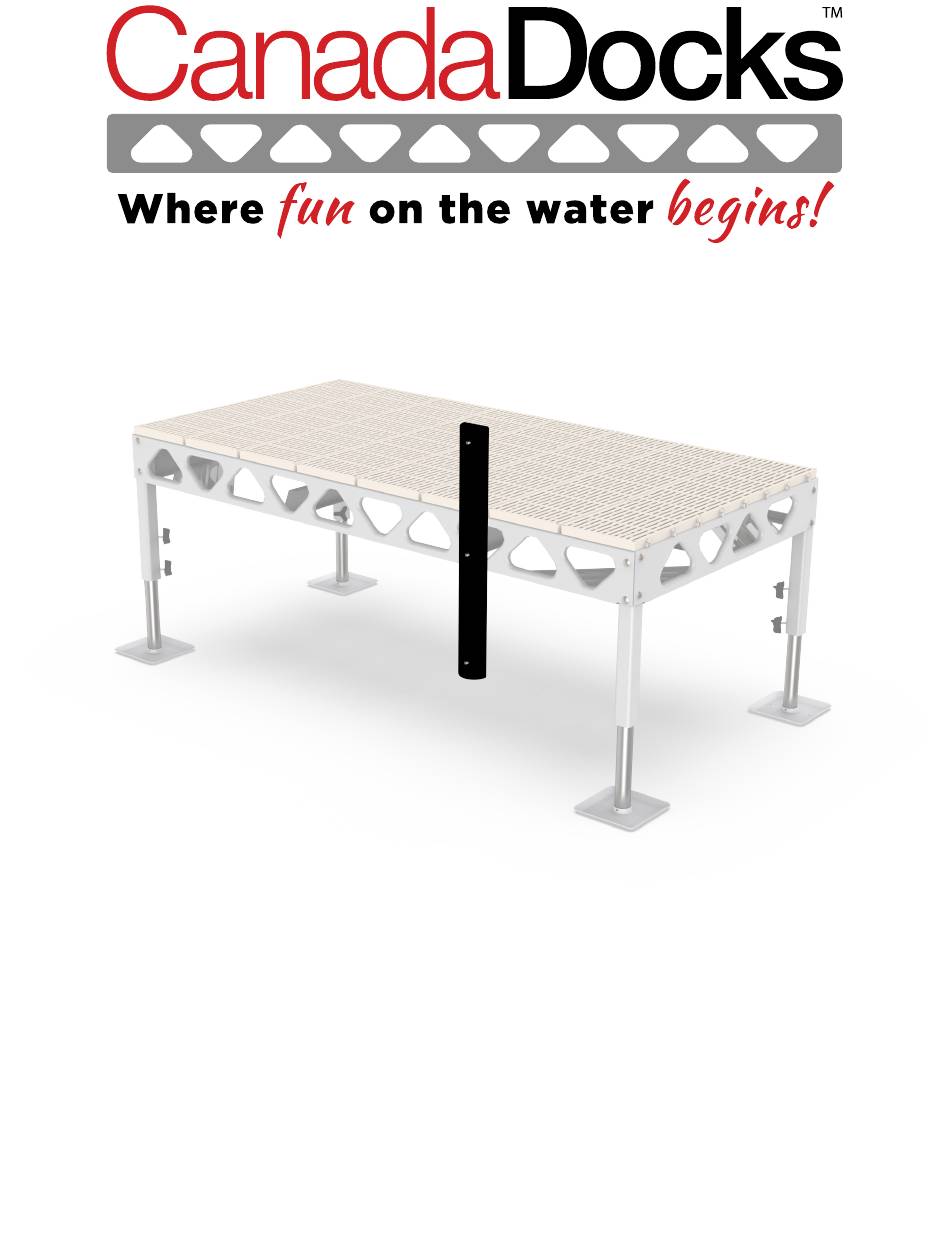

- Page 1 Vertical Bumper Kit Installation Read this manual and related assembly instructions before attempting to assemble the parts enclosed to ensure that your new CanadaDocks System is assembled safely and correctly. Page 1...
-
Page 2: Tools Required
INCLUDED IN KIT: NF38 TPU1 NL38 Tools Required: 9/16” SOCKET WITH RATCHET TO MARKING TOOL SUIT OR 9/16” WRENCH Hold the float to the side of the dock to Mark the bumper level with the dock. estimate the height of your bumper. 3”... - Page 3 Only two square nuts are needed for Insert the rod into the square nut. fastening the vertical bumper to the dock. If your bumper has more then two nuts in the slot, you can hide the extras under the black sleeves at the end.
- Page 4 NF38 Insert the second rod like in STEP 6. Fasten the flange nut (NF38) onto the rod. Keep loose so you may slide the bolt along the channel for the next step. TPU1 Align the rods so that they fit onto the Tighten the flange nuts in place.
- Page 5 Find an appropriate location to mount the Feed the bolts on the bumper through vertical bumper and place the triangle plate on the backing plate while holding it in the back of the truss. place. PLEASE NOTE: Some components on the dock from the image above have been hidden to better illustrate assembly.
- Page 6 NOTES: Page 6...
- Page 7 NOTES: Page 7...
- Page 8 Please leave us a Google review We’d love to hear from you and see your photos! Phone 705.434.0359 1.877.434.0359 Email info@canadadocks.ca Address CanadaDocks.ca 3690 Adjala-Tecumseth Tl, Beeton ON L0G 1A0 /CanadaDocks Page 8 Rev 09 13.11.24...
