CanadaDocks

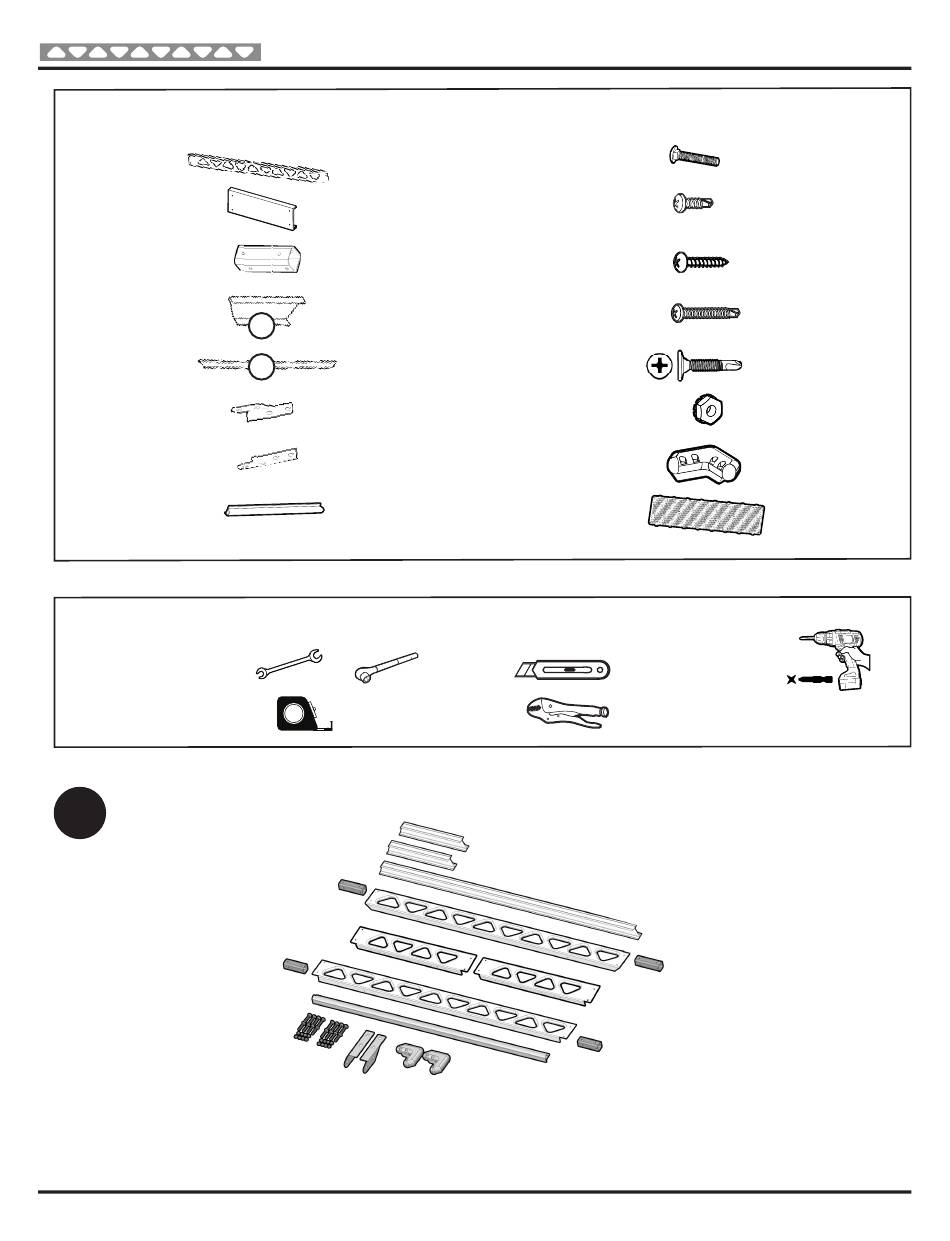

INCLUDED IN KIT:
T8
EPT2
SSTUB
J24
J95
APB1
APB2
PBR8
TOOLS REQUIRED:
9/16" Wrench or
9/16" Socket with Ratchet
Measuring Tape
1
CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca
TM
ACCESS PLATFORM INSTALLATION & ASSEMBLY(2x8)
X2
X2
X4
X2
24"
X1
95"
X1
X1
X1
Utility Knife
OR
Locking Pliers
Layout your access platform on a flat area for assembly.
CB35S
ST075
STR1
ST2
STF075
NL38
CBR1
DK1X4
#2 & #3 Phillips Drill Bit with
Drill
*
Phillips Drill Bit is included with the kit
X16
X8
X24
X32
X16
X16
X2
X4
|
Page 1
Rev 01 09/19/22
Advertisement
Related Manuals for Canada Docks Access Platform
Summary of Contents for Canada Docks Access Platform
- Page 1 Phillips Drill Bit is included with the kit Locking Pliers Measuring Tape Layout your access platform on a flat area for assembly. Page 1 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 09/19/22...
- Page 2 CanadaDocks EPT2 SSTUB SSTUB SSTUB SSTUB SSTUB CB35S NL38 Model number depends on the length of the legs used for the dock. Page 2 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 09/19/22...
- Page 3 CanadaDocks STF075 Place and fasten two screws side by side on each end of the joist. Ensure the long end of the joist is facing upwards when placing joists. Page 3 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 09/19/22...
- Page 4 CanadaDocks 95” Page 4 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 09/19/22...
- Page 5 CanadaDocks STF075 Place and fasten two screws side by side Put screws on intersection from each other on each end of the joist. Ensure the long end of the joist is facing upwards when placing joists. Page 5 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 09/19/22...
- Page 6 CanadaDocks PLEASE NOTE: It is suggested to use a 4” or longer Philips #3 Bit for fastening joist intersections. STF075 CLAMP INTERSECTION FASTEN INTERSECTION WITH SCREWS FASTEN TWO SCREWS DIAGONAL FROM ONE ANOTHER At each joist intersection clamp both overlapping joists together. Place two screws at the bottom flange of the top joist in a diagonal pattern (see image above).
- Page 7 CanadaDocks DK1x4 Page 7 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 09/19/22...
- Page 8 CanadaDocks Loosen nuts. Page 8 CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 09/19/22...
- Page 9 Fit the bracket over the the carriage bolts(CB35S), see above image. Pull the bracket upwards until the carriage bolt heads slip into the narrow slots of the bracket. Fasten the existing nuts and retighten the carriage bolts in this position. Perform this Step for brackets located on both ends of the access platform (See above image). Page 9 CanadaDocks Inc.
- Page 10 Loosen nuts. Using two people connect the access platform by hooking the bracket onto the two loose bolts. Do this for both brackets located on both ends of the access platform. Page 10 CanadaDocks Inc.
- Page 11 Place a corner bumper(CBR1) on the corner of the dock. Slip the indented lip of the corner bumper against the edge of the dock. Fasten a 1” screw (STR1) for each indent on the top of the corner bumper. Do this for both corners on the access platform.
- Page 12 1 Foot Place the P-Bumper(PBR8) along the edge of the access platform. Starting two inches from the edge fasten screws(STR1) at 6 inch intervals on the top of the P-Bumper. For the bottom of the P-Bumper add screws(ST075) at 1 foot intervals starting two inches from the edge.
