BP68-00341A (J61A_Euro_ENG)
Connecting to the External Input/Outputs
➢

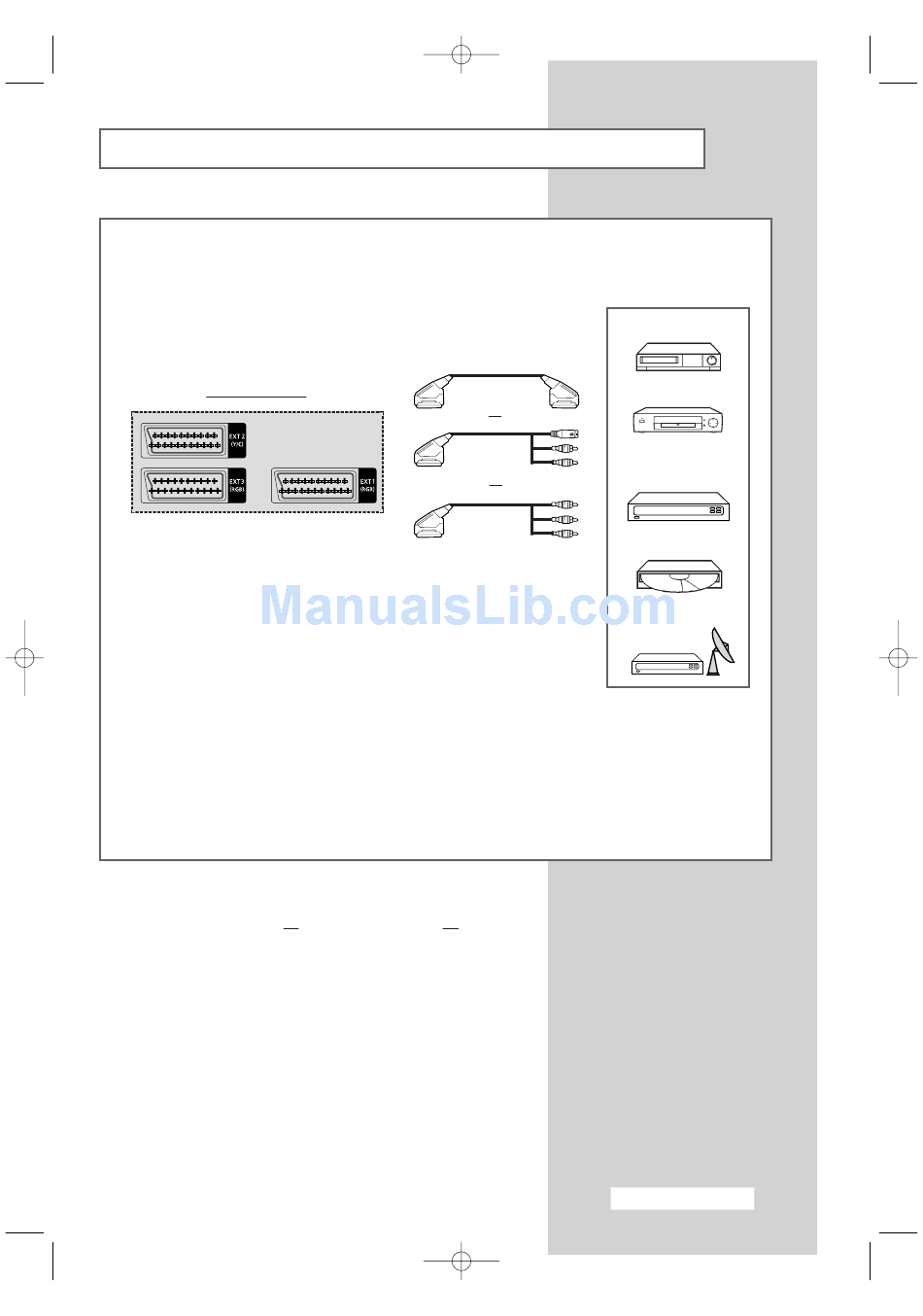

EXT1 is used for the equipment with an RGB output, such as video game devices or video disc players.
Rear of the TV
①
This end can be fitted with:
◆ A SCART connector
◆ An S-Video connector and two audio RCA connectors (L+R); EXT 2
◆ Three RCA connectors (VIDEO + AUDIO-L and R)
②
If you have a second VCR and wish to copy cassette tape, connect the
source VCR to EXT1 and the target VCR to EXT2 so that you can redirect
the signal from EXT1 to EXT2.
③
If you have a decoder, connect the decoder to the VCR and the VCR to
the television.
➃
When you wish to record a programme, connect the receiver to EXT1 and
the VCR to EXT2 so that you can redirect the signal from EXT1 to EXT2.
☛
Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
4/19/04
8:30 PM
Page 71
①
②
or
③
Decoder /
Video game device
or
Video disc player
Satellite receiver
➃
English - 1
VCR
DVD
