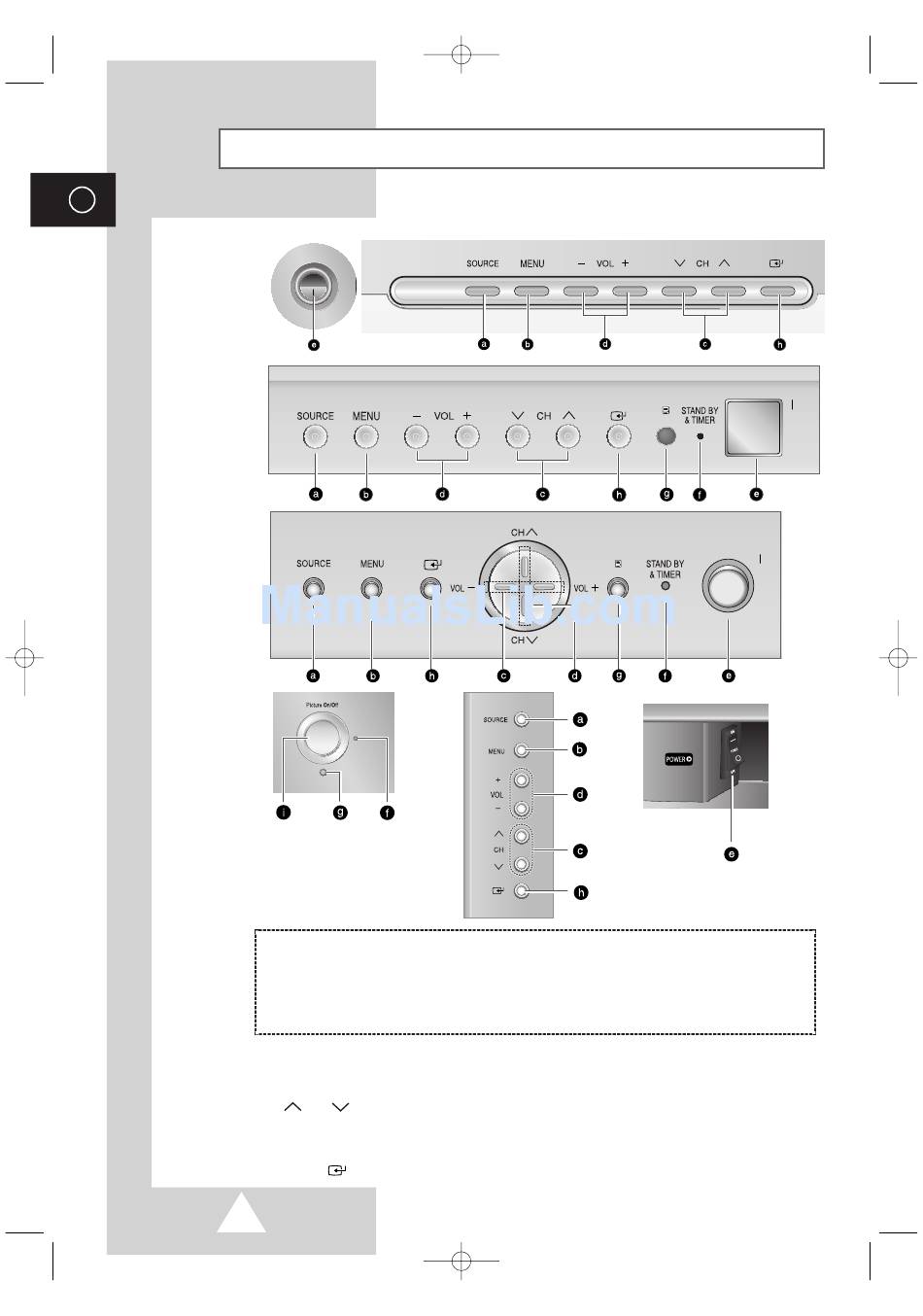

Control Panels
(depending on the model)
➢
( a ) Input Source Selection
( b ) Menu Display
( c ) Channel Selection
( d ) Volume Adjustment
( e ) Power On/Off
Using the Buttons on the Panel
If the remote control no longer works or you have lost it, you can use controls on the panel of the TV to:
◆ Switch on the TV when it is in Standby mode and select channels
(
CH
or Picture On/Off)
◆ Access the menu ( MENU )
◆ Adjust the volume ( - VOL + )
◆ Switch among Video input modes (SOURCE ) and access to the selected option on the menu
system (
)
1
Page 6
The actual configuration on your TV may be different, depending on
your model.
( f ) Standby & Timer Indicator
( g ) Remote Control Sensor
( h ) Accessing to the Selected Option
on the Menu System
( i ) Picture On/Off
