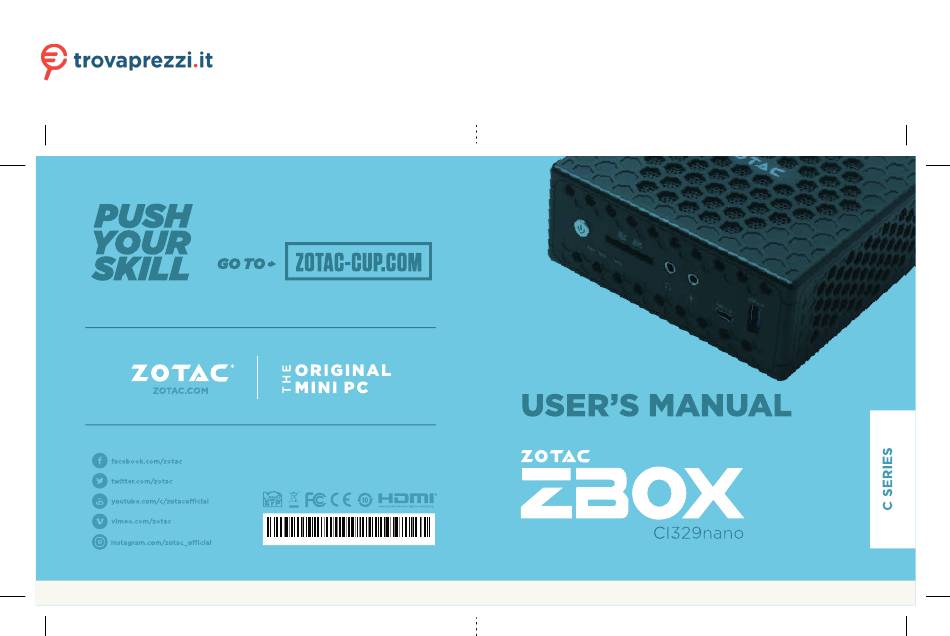

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Zotac ZBOX CI329 nano ZBOX-CI329NANO-BE-W3D o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation 291-MB362-03S5F...
- Page 2 ZOTAC. Products and corporate names mentioned in this manual may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.
-
Page 3: Table Of Contents
Installing a hard disk drive --------------------------------------------------------------------------------10 Setting up your ZOTAC ZBOX nano ----------------------------------------------------------------------13 Positioning the ZOTAC ZBOX nano -----------------------------------------------------------------------15 Mounting the ZOTAC ZBOX nano to an LCD monitor ---------------------------------------------15 Installing drivers and software -----------------------------------------------------------------------------17 Installing an operating system ----------------------------------------------------------------------------17 Installing system drivers -----------------------------------------------------------------------------------17... -
Page 4: Product Specifications
ZOTAC ZBOX nano Product specifications Processor • Intel Processor N4100 (quad core, 1.1 GHz up to 2.4 GHz) Onboard graphics • Intel UHD Graphics 600 • HDMI 2.0a (max resolution: 4096×2160 @60Hz) • DP 1.2a (max resolution: 4096×2160 @60Hz) • VGA (max resolution: 1920×1200 @60Hz) Memory support •... -
Page 5: Safety Information
ZOTAC ZBOX nano Safety information Your ZOTAC ZBOX nano is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before operating your system. -
Page 6: Welcome
ZOTAC ZBOX nano Welcome Congratulations on your purchase of the ZOTAC ZBOX nano. The following illustration displays the package contents of your new ZOTAC ZBOX nano. If any of the below items is damaged or missing, contact your retailer. Package contents •... -
Page 7: Getting To Know Your Zotac Zbox Nano

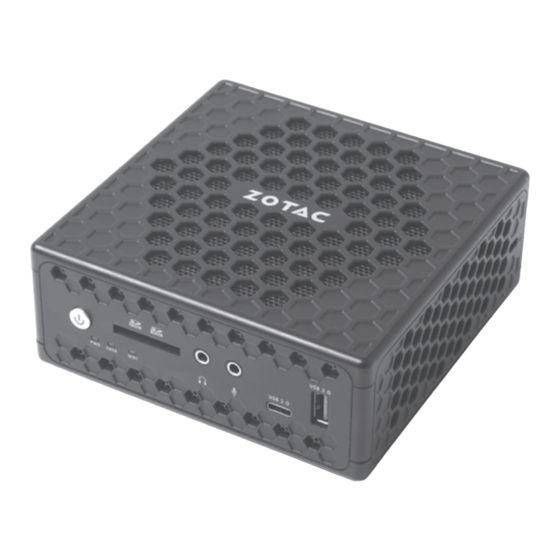

ZOTAC ZBOX nano Getting to know your ZOTAC ZBOX nano Front view 1. Power button The power button turns the mini-PC ON and OFF. 2. Power LED The Power LED is always ON when power is on. 3. SATA status LED The SATA LED blinks when data is being written onto or read from the SATA. -
Page 8: Rear View
ZOTAC ZBOX nano Rear view 1. WiFi antenna connector The WiFi antenna connector supports the included WiFi antenna. 2. Ethernet ports The eight-pin RJ-45 LAN port supports standard Ethernet cable for connections to local area networks (LAN) with speeds of 10/100/1000Mbps. -
Page 9: Customizing The Zotac Zbox Nano
ZOTAC ZBOX nano Customizing the ZOTAC ZBOX nano Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX nano. 1. Remove the four screws securing the bottom cover into place. 2. Remove the bottom cover. -
Page 10: Installing A Memory Module
2. Gently press down on the memory module until it locks into place by the arms of the memory slot. Note: This ZOTAC ZBOX nano accomodates two DDR4 SO-DIMM memory modules. You must install at least one module for the system to function. PLUS / Windows models include memory pre-installed. -
Page 11: Installing A Hard Disk Drive
ZOTAC ZBOX nano Installing a hard disk drive 1. Locate the hard disk bracket, remove the screws, and remove the hard disk bracket as shown in the image below. hard disk drive / 2. Install the hard disk bracket onto a 2.5-inch SATA SSD with 2 screws. - Page 12 ZOTAC ZBOX nano 3. Insert the hard disk drive /SSD into the socket and gently slide into the connector. 4. Reinstall the screw for the hard disk bracket.
- Page 13 ZOTAC ZBOX nano 5. If you use 9.5mm hard disk drive, please use the default sticked foil. Note: if you use 7mm hard drive or SSD, please stick one more thicker foil on the default foil.
-
Page 14: Setting Up Your Zotac Zbox Nano
ZOTAC ZBOX nano Setting up your ZOTAC ZBOX nano Please connect your peripherals before using your ZOTAC ZBOX nano 1. Connecting the WiFi antenna Connect the WiFi antenna to the WiFi antenna connector. 2. Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a network hub, switch or router. - Page 15 Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system. When your ZOTAC ZBOX nano is not in use, unplug the power adapter or switch off the AC outlet to conserve power.
-
Page 16: Positioning The Zotac Zbox Nano
ZOTAC ZBOX nano Positioning the ZOTAC ZBOX nano • Do not position the ZOTAC ZBOX nano where the ventilation holes are covered. To guarantee proper use, leave 4 inches (10 cm) of spacing in front of the ventilation holes. • ZOTAC ZBOX nano mini-PC systems provide ample connectivity in a tiny form factor, please choose connectors and cables in appropriate sizes to avoid interference. - Page 17 ZOTAC ZBOX nano Align the ZOTAC ZBOX nano mounting holes to the VESA mount attachment pegs. Attach the ZOTAC ZBOX nano to the VESA mount and gently press down to secure the ZBOX to the mount. Connect the ZOTAC ZBOX nano to your LCD monitor with an VGA/HDMI/DP cable.
-
Page 18: Installing Drivers And Software
Install system drivers to gain full functionality of the ZOTAC ZBOX nano hardware and features. Installing system drivers Before you can use the full features of the ZOTAC ZBOX nano, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX nano driver DVD: •... -
Page 19: Using Your Zotac Zbox Nano
USB Charger driver. Each driver must be installed individually to ensure proper operation of the ZOTAC ZBOX nano. Select the driver you want to install. The driver installer should launch. Follow the onscreen instructions to install the drivers. -
Page 20: Configuring A Wired Connection
ZOTAC ZBOX nano Configuring a wired connection Using a static IP Right-click the network icon in the notification area and select “Open Network Connections”. Right-click “Local Area Connection” and select “Properties”. Highlight “Internet Protocol (TCP/IP)” and click “Properties”. Select “Use the following IP address”. -
Page 21: Configuring Audio Output
Note: Contact your internet Service Provider (ISP) if you have problems connecting to the network. Configuring audio output Follow the steps below to enable audio output when connecting the ZOTAC ZBOX nano to a TV or receiver via DP/HDMI adapter.
