Silicon Laboratories Si4438-C Manual

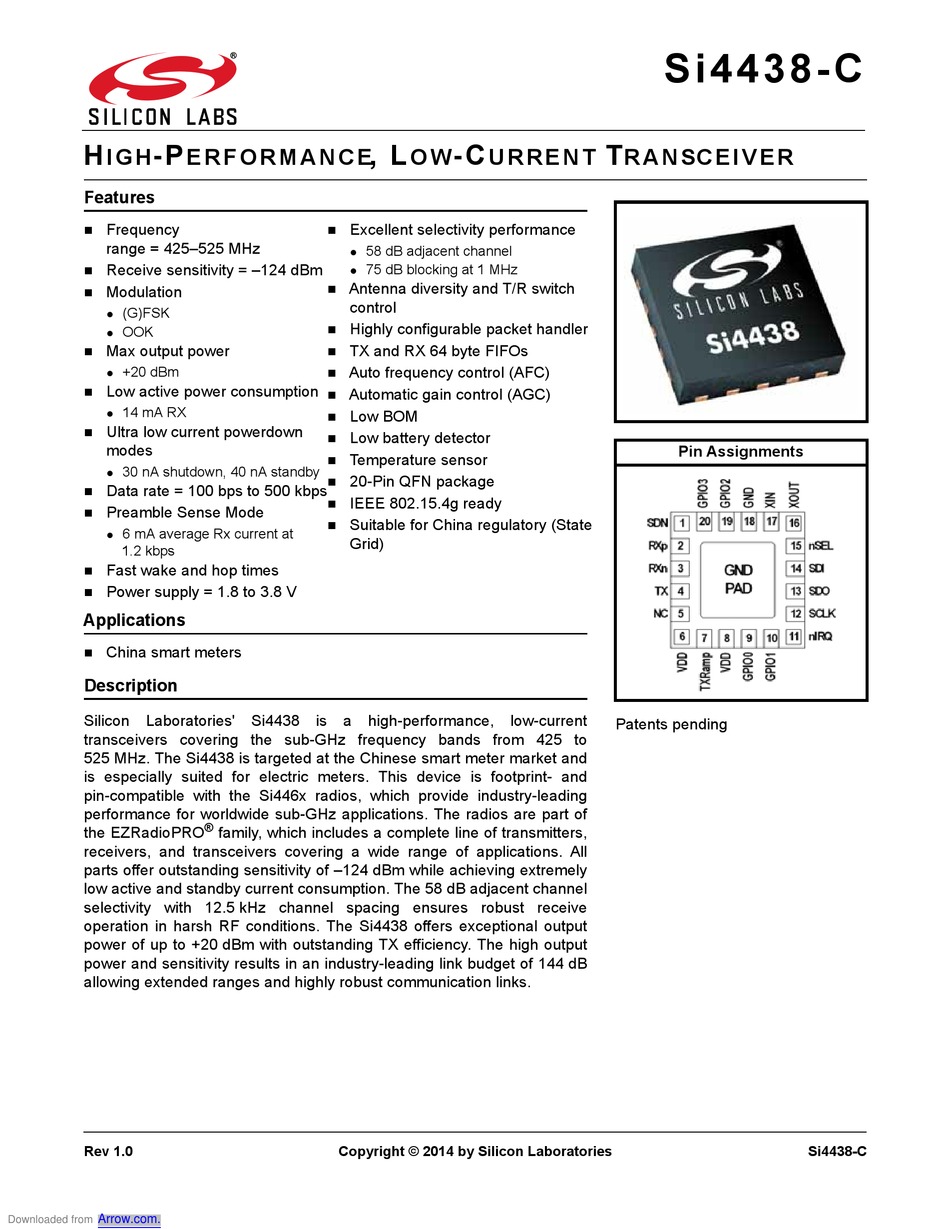

High-performance, low-current transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H
-P
I G H
E R F O R M A N C E
Features
Frequency
range = 425–525 MHz
Receive sensitivity = –124 dBm
Modulation
(G)FSK

OOK

Max output power
+20 dBm

Low active power consumption
14 mA RX

Ultra low current powerdown
modes
30 nA shutdown, 40 nA standby

Data rate = 100 bps to 500 kbps
Preamble Sense Mode
6 mA average Rx current at

1.2 kbps
Fast wake and hop times
Power supply = 1.8 to 3.8 V
Applications
China smart meters
Description
Silicon Laboratories' Si4438 is a high-performance, low-current
transceivers covering the sub-GHz frequency bands from 425 to
525 MHz. The Si4438 is targeted at the Chinese smart meter market and
is especially suited for electric meters. This device is footprint- and
pin-compatible with the Si446x radios, which provide industry-leading
performance for worldwide sub-GHz applications. The radios are part of
the EZRadioPRO
receivers, and transceivers covering a wide range of applications. All
parts offer outstanding sensitivity of –124 dBm while achieving extremely
low active and standby current consumption. The 58 dB adjacent channel
selectivity with 12.5 kHz channel spacing ensures robust receive
operation in harsh RF conditions. The Si4438 offers exceptional output
power of up to +20 dBm with outstanding TX efficiency. The high output
power and sensitivity results in an industry-leading link budget of 144 dB
allowing extended ranges and highly robust communication links.
Rev 1.0
Arrow.com.
Downloaded from
, L
Excellent selectivity performance
58 dB adjacent channel

75 dB blocking at 1 MHz

Antenna diversity and T/R switch
control
Highly configurable packet handler
TX and RX 64 byte FIFOs
Auto frequency control (AFC)
Automatic gain control (AGC)
Low BOM
Low battery detector
Temperature sensor
20-Pin QFN package
IEEE 802.15.4g ready
Suitable for China regulatory (State
Grid)
®
family, which includes a complete line of transmitters,
Copyright © 2014 by Silicon Laboratories
-C
O W
U R R E N T
S i 4 4 3 8 - C
T
R A N SC E I V E R
Pin Assignments
Patents pending
Si4438-C
