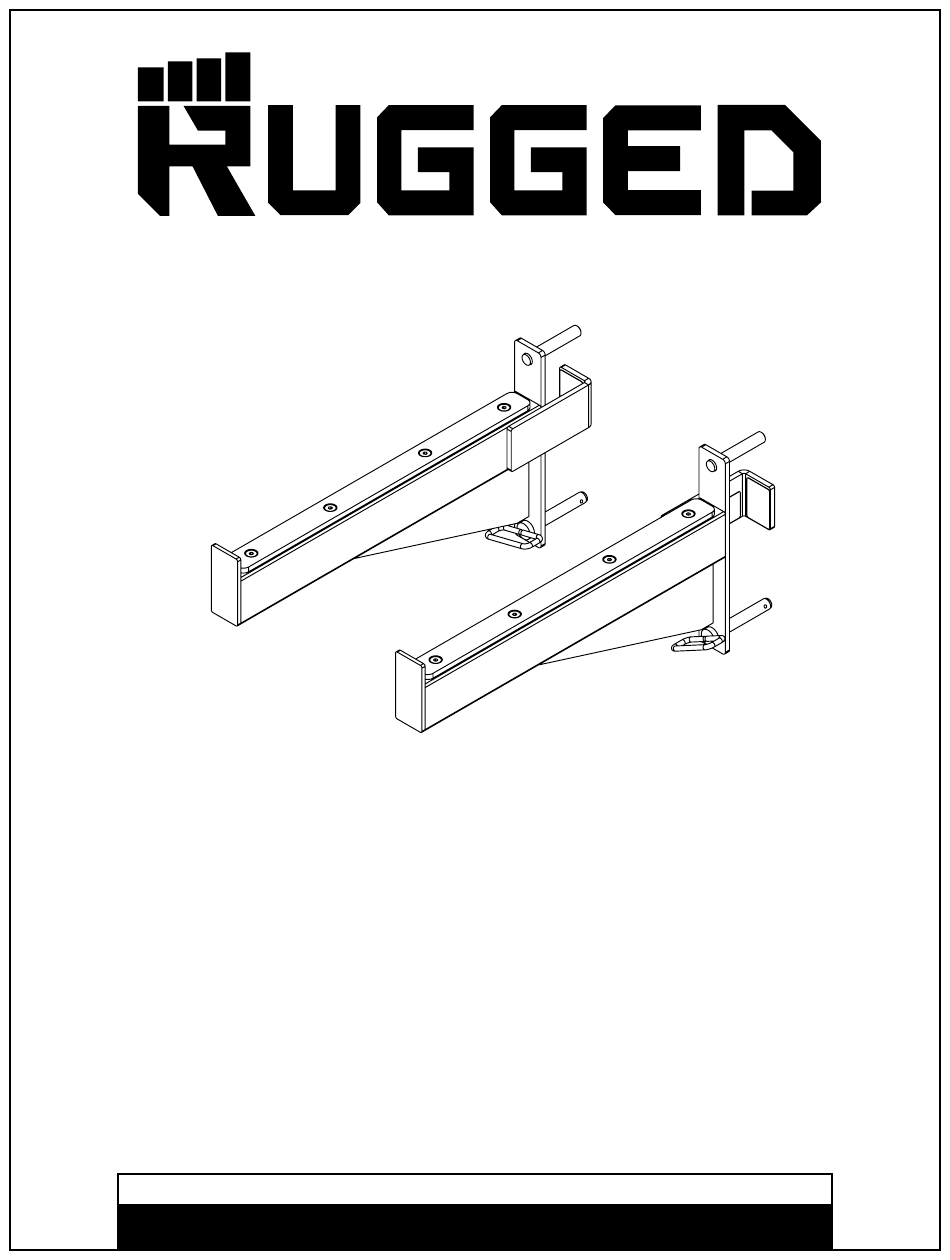

- Page 1 S T R E N G T H & F I T N E S S WARRIOR SPOTTER ARMS SKU# Y250 & A s s e m b l y I n s t r u c t i o n s O W N E R ’...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e Be sure that all users carefully read and understand all warning, safety and maintenance labels on the machine before each use.
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • PARTS / HARDWARE LIST......PAGE 6 • PARTS ILLUSTRATION........PAGE 7 • ASSEMBLY INSTRUCTIONS......PAGE 8 • EXPLODED VIEW.......... PAGE 11 • CONTACT PAGE..........PAGE 12... -
Page 4: Safety Instructions
I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement. -
Page 5: Preparation
P r e p a r a t i o n Required Tools Assembly Tips Read all “Notes” on each page before beginning each The basic tools that you must obtain before assembling the Y250 include but are not limited to: step. While you may be able to assemble the Y250 using the illustrations only, important safety notes and other tips m Standard Wrench Set are included in the text. m Metric Wrench Set Some pieces may have extra holes that you will not use. m Adjustable Wrench Use only those holes indicated in the instructions and illustrations. NOTE: With so many assembled parts, proper Installation Requirements alignment and adjustment is critical. While tightening the nuts and bolts, be sure to leave Follow these installation requirements when assembling room for adjustments. the Y250. Set up the Y250 on a solid, flat surface. A smooth, flat surface under the machine helps keep it CAUTION: Obtain assistance! Do not attempt to level. A level machine has fewer malfunctions. -
Page 6: Parts / Hardware List
Y 2 5 0 P a r t s & H a r d w a r e L i s t Part# Description LEFT SPOTTER ARM RIGHT SPOTTER ARM QUICK RELEASE PIN M8x16 FLAT HEAD CAP SCREW PROTECTIVE FILM 550x40mm PLASTIC INSERT... -
Page 7: Parts Illustration
P a r t s I l l u s t r a t i o n Part G - LEFT SPOTTER ARM, QTY 1 Part H - RIGHT SPOTTER ARM, QTY 1 Part G - QUICK RELEASE PIN, QTY 2 45 7... -
Page 8: Assembly Instructions
S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten until instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tightened to fully go on. - Page 9 S T E P Above shows Step 1 assembled and completed.
- Page 10 N o t e s...
-
Page 11: Exploded View
Y 2 5 0 E x p l o d e d V i e w... -
Page 12: Contact Page
S T R E N G T H & F I T N E S S Y250 1900 S. Des Plaines Ave. Forest Park, IL 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.ruggedfitness.com...
