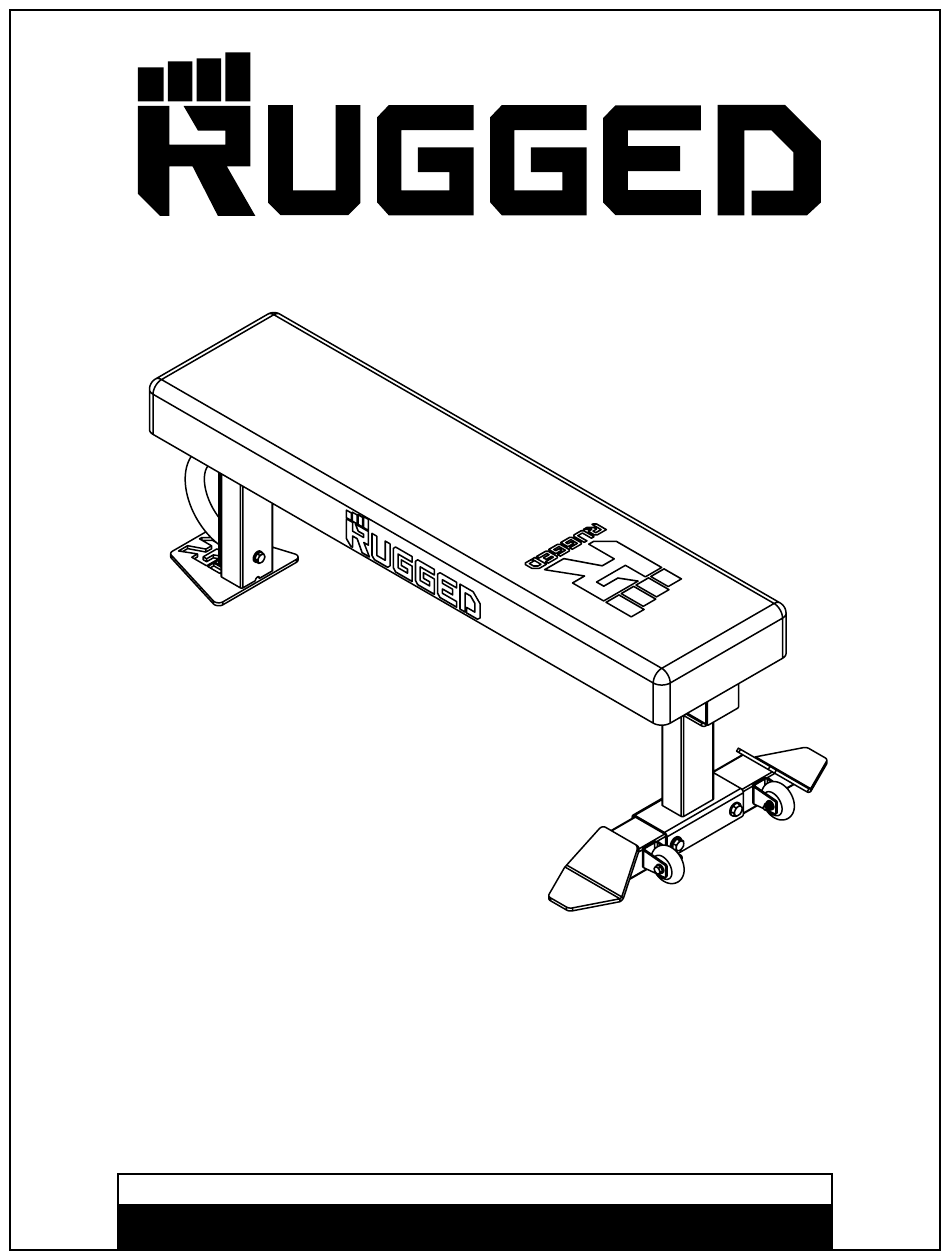

- Page 1 S T R E N G T H & F I T N E S S FLAT BENCH SKU# Y041 & A s s e m b l y I n s t r u c t i o n s O W N E R ’...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e Be sure that all users carefully read and understand all warning, safety and maintenance labels on the machine before each use.
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE ILLUSTRATION......PAGE 6 • PARTS / HARDWARE LIST......PAGE 9 • ASSEMBLY INSTRUCTIONS......PAGE 10 • EXPLODED VIEW.......... PAGE 15 • CONTACT PAGE..........PAGE 16... -
Page 4: Safety Instructions
I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement. -
Page 5: Preparation
P r e p a r a t i o n Required Tools Assembly Tips Read all “Notes” on each page before beginning each The basic tools that you must obtain before assembling the Y041 include but are not limited to: step. While you may be able to assemble the Y041 using the illustrations only, important safety notes and other tips m Standard Wrench Set are included in the text. m Metric Wrench Set Some pieces may have extra holes that you will not use. m Adjustable Wrench Use only those holes indicated in the instructions and illustrations. NOTE: With so many assembled parts, proper Installation Requirements alignment and adjustment is critical. While tightening the nuts and bolts, be sure to leave Follow these installation requirements when assembling room for adjustments. the Y041. Set up the Y041 on a solid, flat surface. A... -
Page 6: Hardware Illustration
Y 0 4 1 H a r d w a r e I l l u s t r a t i o n Part #1 HEX HEAD BOLT M12x100mm QTY. 2... - Page 7 Y 0 4 1 H a r d w a r e I l l u s t r a t i o n Part #5 HEX HEAD BOLT M8x25mm QTY. 8...
- Page 8 Y 0 4 1 H a r d w a r e I l l u s t r a t i o n Part #9 NYLON LOCK NUT M12 QTY. 2...
-
Page 9: Parts / Hardware List
Y 0 4 1 P a r t s & H a r d w a r e L i s t Part# Description FRONT STABILIZER FRONT LEG REAR LEG MAIN FRAME HANDLE M12x100mm HEX HEAD BOLT M12x25mm HEX HEAD BOLT M10x70mm HEX HEAD BOLT M8x50mm HEX HEAD BOLT M8x25mm HEX HEAD BOLT 6 M12 FLAT WASHER M10 FLAT WASHER M8 FLAT WASHER M12 NYLON LOCK NUT M8 NYLON LOCK NUT TRANSPORT WHEEL... -
Page 10: Assembly Instructions
S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of STEP 1C. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tightened to fully go on. - Page 11 S T E P Above shows Step 1 assembled and completed.
- Page 12 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of STEP 2B. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tightened to fully go on.
- Page 13 S T E P Above shows Step 2 assembled and completed.
- Page 14 N o t e s...
-
Page 15: Exploded View
Y 0 4 1 E x p l o d e d V i e w... -
Page 16: Contact Page
S T R E N G T H & F I T N E S S Y041 PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW 0144466-��-��-����-���� S/N # 1900 S. Des Plaines Ave. Forest Park, IL 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.ruggedfitness.com...
