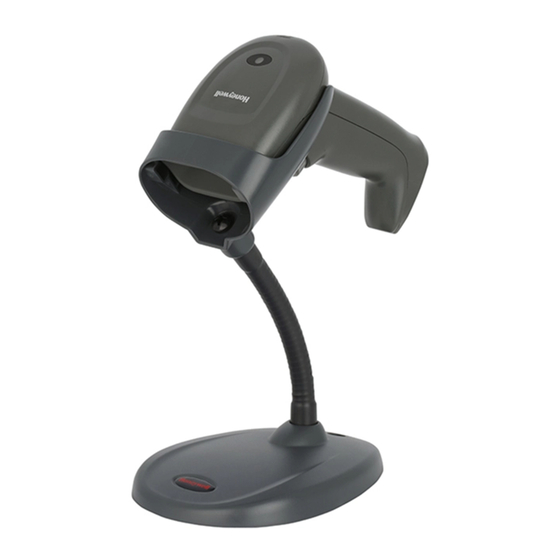

HH490
Corded Area-Imaging Scanner
Quick Start Guide
HH490-EN-QS-01 Rev A
1/21

Advertisement

Table of Contents
loading

Related Manuals for Honeywell HH490

Summary of Contents for Honeywell HH490

  • Page 1 HH490 Corded Area-Imaging Scanner Quick Start Guide HH490-EN-QS-01 Rev A 1/21...

  • Page 2: Getting Started

    Agency Model: HH490 Note: Refer to your User Guide for information about cleaning your device. Getting Started Turn off computer’s power before connecting the scanner, then power up the computer once the scanner is fully connected. Power Supply Assembly (if included)
  • Page 3 Connecting the Scanner...

  • Page 4: Rs232 Serial Port

    RS232 Serial Port:...

  • Page 5: Usb Interface

    USB Interface By scan config barcode below, you can change to different USB type interface. USB Keyboard USB HID USB Serial RS232 Interface By scan config barcode below, you can change to RS232 interface. RS232...

  • Page 6: Reading Techniques

    Reading Techniques The view finder projects an aiming dot that should be centered over the bar code, but it can be positioned in any direction for a good read. Hold the scanner over the bar code, press the button, and center the aiming dot on the bar code.

  • Page 7: Keyboard Country

    Keyboard Country Scan the appropriate country code that follows to program the keyboard layout for your country or language. By default, national character replacements are used for the following characters: # $ @ [ ] \ | ^ ‘ { } ~ Refer to the ISO 646 Character Replacements chart in your User Guide to view the character replacements for each country.
  • Page 8 Italy Norway Spain Switzerland Note: For a complete list of country codes, see the User Guide for your product. Trigger The following bar codes will allow you to use the scanner in Manual Trigger - Normal Mode (need to press the button to read) or Presentation mode (the scanner is activated when it “sees”...

  • Page 9: Add Code Id Prefix To All Symbologies

    Suffix If you want a carriage return after the bar code, scan the Add CR Suffix bar code. To add a tab after the bar code, scan the Add Tab Suffix bar code. Otherwise, scan the Remove Suffix bar code to remove the suffixes.

  • Page 10: Function Code Transmit

    Function Code Transmit When this selection is enabled and function codes are contained within the scanned data, the scanner transmits the function code to the terminal. Charts of these function codes are provided in your User Guide. When the scanner is in key- board wedge mode, the scan code is converted to a key code before it is transmitted.

  • Page 11: Data Format Editor Instructions

    Data Format Editor Instructions The following are abbreviated instructions for entering a data format. For complete instructions refer to your User Guide. Step 1. Scan the Enter Data Format symbol. Step 2. Primary/Alternate Format: scan 0 for Primary Format Step 3. Terminal Type: scan 099 for any terminal type Step 4.

  • Page 12: Programming Chart

    Programming Chart...

  • Page 13: Ezconfig For Scanning

    Save Discard Reset EZConfig for Scanning To access additional features for the scanner, use EZConfig for Scanning, an online configuration software tool, available from our website.

  • Page 14: Limited Warranty

    For patent information, see www.hsmpats.com Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
