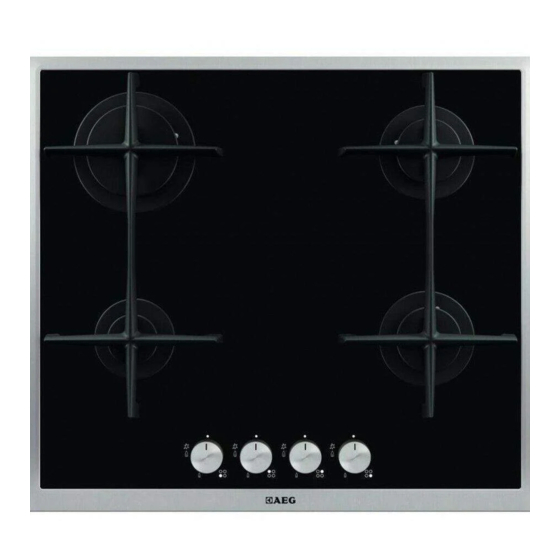

- Page 1 HG694340NB EN GAS HOB USER MANUAL...
- Page 2 Please spend a few minutes reading to get the very best from it. ACCESSORIES AND CONSUMABLES In the AEG webshop, you’ll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories...
-
Page 3: Table Of Contents
Contents CONTENTS 4 Safety information 6 Installation 12 Product description 13 Operation 14 Helpful hints and tips 15 Care and cleaning 16 What to do if… 17 Technical data 18 Environment concerns The following symbols are used in this user manual: Important information concerning your personal safety and information on how to... -
Page 4: Safety Information
Safety information SAFETY INFORMATION WARNING! These instructions are only valid in the countries whose symbols appear on this booklet's cover. For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. - Page 5 Safety information • Pots must not enter the control zone. • Do not use not stable cookware to prevent from tilt and accident. • Do not put flammable products or items that are wet with flammable products, and/or fusible objects (made of plastic or aluminium) and/or fabrics in, near or on the appliance. There is the risk of explosion or fire.
-
Page 6: Installation
Installation • This appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention must be given to the relevant requirements regarding ventilation. • The use of a gas cooking appliance cause heat and moisture in the room in which it is installed. - Page 7 Installation Important safety requirements This hob must be installed in accordance with the Gas Safety (Installation and Use) Regula- tions (Current Edition) and the IEE Wiring Regulations (Current Edition). For appliances installed in the Republic of Ireland please refer to NSAI- Domestic Gas Instal- lation I.S.
- Page 8 Installation End of shaft with nut Washer Elbow Connection to the gas supply should be with either rigid or semi-rigid pipe, i.e. steel or cop- per. The connection should be suitable for connecting to R 1/2 (1/2 BSP male thread). When the final connection has been made, it is essential that a thorough leak test is carried out on the hob and installation.
- Page 9 Installation Adjustment of minimum level To adjust the minimum level of the burners: Light the burner. Turn the knob on the minimum position. Remove the knob. With a thin screwdriver, adjust the by-pass screw position. The by-pass screw – If you change from natural gas 20 mbar to liquid gas, fully tighten the adjustment screw in.
- Page 10 Installation fied electrician, e.g. your local Electricity Board, or a contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC). The manufacturer declines any liability should these safety measures not be observed. This hob is designed to be connected to a 230 V 50 Hz AC electrical supply. Before switching on, make sure the electricity supply voltage is the same as that indicated on the hob rating plate.
- Page 11 Installation The replacement of electric cable must be carried out exclusively by the service force centre or by personnel with similar competencies, in accordance with the current regulations. Replacement of the connection cable To replace the connection cable use only H05V2V2-F T90 or equivalent type. Make sure that the cable section is applicable to the voltage and the working temperature.
-
Page 12: Product Description
Product description a) Removable panel b) Space for connections Kitchen unit with oven The hob recess dimensions must obey the indication and the kitchen unit must be equipped with vents to let a continuous supply of air. The electrical connection of the hob and the oven must be installed separately for safety reasons and to let easy remove oven from the unit. -
Page 13: Operation
Operation OPERATION Ignition of the burner WARNING! Be very careful when you use open fire in kitchen environment. Manufacturer decline any responsibility in case misuse of the flame Always light the burner before you put cookware. To light the burner: Turn the control knob counterclockwise to the maximum position ( ) and push it down. -
Page 14: Helpful Hints And Tips
Helpful hints and tips If the burner accidentally goes out, turn the control knob to the off position and try to light the burner again after minimum 1 minute. The spark generator can start automatically when you switch on the mains, after installa- tion or a power cut. -
Page 15: Care And Cleaning
Care and cleaning WARNING! Flame diffuser are not recommended. Information on acrylamides Important! According to the newest scientific knowledge, if you brown food (specially the one which contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much. CARE AND CLEANING WARNING! Switch the appliance off and let it cool down before you clean it. -
Page 16: What To Do If
What to do if… At the end rub the appliance dry with a clean cloth. To keep the pan supports in the correct position, they are hooked into hinges at the back of the hob. To ensure a better cleaning, pan supports can be removed from the hob. Lift up the pan supports keeping them in horizontal position. -
Page 17: Technical Data
Technical data Labels supplied with the accessories bag Stick the adhesive labels as indicated below: MOD. MOD. MOD. TYPE PROD.NO. 230V-50Hz PROD.NO. PROD.NO. 0049 SER.NO. IP20 SER.NO SER.NO 03 IT DATA DATA MADE IN ITALY MODEL MODEL Stick it on Guarantee Card and send this part Stick it on Guarantee Card and keep this part Stick it on instruction booklet These data are necessary to help you quickly and correctly. -
Page 18: Environment Concerns
Environment concerns TOTAL POWER: G20 (2H) 20 mbar = 7.7 kW G30 (3+) 28-30 mbar = 545 g/h G31 (3+) 37 mbar = 536 g/h Electric supply: 230 V ~ 50 Hz 3 core flexible cable with non rewireable plug fitted with a 3 amp cartridge fuse Category: II2H3+... - Page 19 please contact your local council, your household waste disposal service or the shop where you purchased the product. Packaging material The packaging materials are friendly to the environment and can be recycled. The plastic components are identified by marking: >PE<,>PS<, etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.
