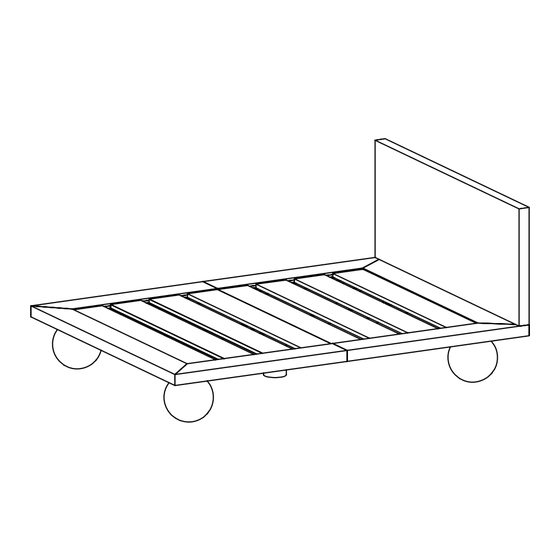

YOKO BED
ASSEMBLY INSTRUCTIONS
Thank you for purchasing the Sarah Ellison Yoko Bed. This document lists
the contents included in your delivery. Please take the time to identify the
hardware, as well as the individual components of this product. As you
unpack and prepare for assembly, place the contents on a carpeted or
padded area to protect them from damage.
HARDWARE
2 x 20x100x50mm wooden dowel
2 x Ø10x30mm dowel
4 x 5/16x65mm bolt screws
4 x 8xØ19mm washer
4 x Ø8mm spring washer
16 x 5/16x25mm bolt screws
2 x Ø20x80mm dowel
8 x M10x100mm bolt screws
8 x 10xØ23mm washer
8 x 10 spring washer
TOOLS REQUIRED
Allen Key
Hex head key
PEOPLE REQUIRED FOR
ASSEMBLY
Four people
ESTIMATED TIME OF ASSEMBLY
1 hour
CUSTOMER SERVICE
For Australian customer service contact : info@sarahellison.com.au
For any international customer service inquires please contact the retailer of purchase.
page 1 | 4
sarahellison.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SARAH ELLISON YOKO
Summary of Contents for SARAH ELLISON YOKO
- Page 1 YOKO BED ASSEMBLY INSTRUCTIONS Thank you for purchasing the Sarah Ellison Yoko Bed. This document lists the contents included in your delivery. Please take the time to identify the hardware, as well as the individual components of this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
- Page 2 STEP 1 Lay both bed frame pieces face down onto a clean, flat surface (we recommend using a towel or sheet underneath for protection). Using the 2 x 20x100x50mm wooden dowel blocks and the 2 x Ø10x30mm dowels, connect the frames by pushing the two halves together evenly as shown below.
- Page 3 STEP 3 Align the Ball Feet and centre support leg with the corresponding holes on the Bed Frames as shown. Fasten the Ball Feet and the centre support leg to the bed frame using the 16 x 5/16x25mm bolt screws and allen key.
- Page 4 With a little care you can prolong the life of your furniture. The following information is only intended as a general guideline. Please follow the instructions to ensure maximum longevity of your Sarah Ellison furniture. Timber is responsive to its environment, be mindful that heat and moisture can cause movement and cracks in joints and damage lacquer.
