GBA Z 0899 0 E

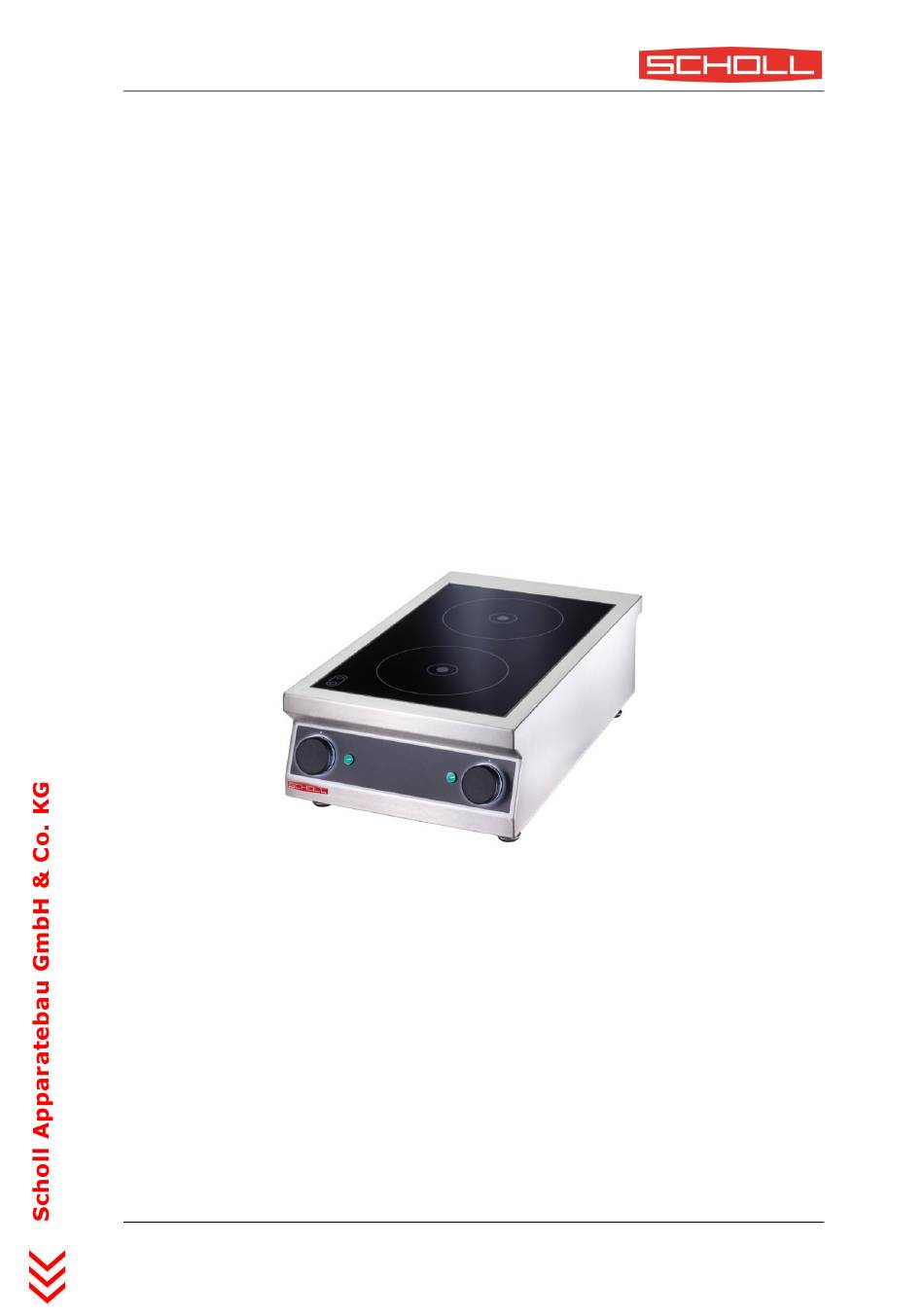

Instructions for Use
Multi-Flex
Ceran hob 2 cooking fields
Model-No.
SH/CK 3000-ML
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg/Germany
Phone
+0049 (0) 2661 – 9868-10
Fax
+0049 (0) 2661 – 9868-38 (Service)
Internet
www.scholl-gastro.de
E-mail
info@scholl-gastro.de
BA
Last revised 04-2019
Art.-No.
Z 0899
Page 1 of 24
April 17, 2019
Rev. 0
Advertisement
Table of Contents
Summary of Contents for Scholl SH/CK 3000-ML
- Page 1 Instructions for Use Multi-Flex Ceran hob 2 cooking fields Model-No. Art.-No. SH/CK 3000-ML Z 0899 Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D–56470 Bad Marienberg/Germany Phone +0049 (0) 2661 – 9868-10 +0049 (0) 2661 – 9868-38 (Service) Internet www.scholl-gastro.de...
-
Page 2: Table Of Contents
GBA Z 0899 0 E ABLE OF CONTENTS Table of contents ............................... 2 Preface ................................4 Conventions ............................... 5 Pictograms – General safety notes ....................5 Pictograms – Warning notes ......................7 Pictograms – Important notes ......................8 Product information ..........................9 Information regarding compliance with standards, laws and directives ......... - Page 3 GBA Z 0899 0 E Technical data............................20 Execution ............................20 Dimensioned drawings ........................20 Circuit diagrams ..........................20 Spare parts list ..........................21 Disposal and Environmental Notes ......................22 Disposal of packing material ......................22 Disposal of the appliance ....................... 22 Warranty and service .........................
-
Page 4: Preface
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner. -
Page 5: Conventions
GBA Z 0899 0 E ONVENTIONS – G ICTOGRAMS ENERAL SAFETY NOTES Be sure to observe these Instructions for Use as well as the safety notes to prevent injuries or damage to health or property. Do not alter or modify this appliance. Never use a defective appliance. - Page 6 GBA Z 0899 0 E Do not allow this appliance to operate unattended. Ensure that its thermostat switch is set to „0“ before inserting the plug into an electrical socket-outlet or con- necting the appliance to the power supply. Avoid starting the unit unintentionally. Connecting the unit to the mains with its thermostat switch not set to „0“...
-
Page 7: Pictograms - Warning Notes
GBA Z 0899 0 E – W ICTOGRAMS ARNING NOTES Before any cleaning, maintenance or repair work is carried out, the appliance must be disconnected from the mains and de-energized. To do so, it is not enough to set the power switch to OFF. Instead, the mains plug must be pulled or the electrical circuit must be de-energized, respectively. -
Page 8: Pictograms - Important Notes
GBA Z 0899 0 E – I ICTOGRAMS MPORTANT NOTES DANGER indicates an immediately threatening hazard. Failure to observe this warning notice will result in severe physical injury or death. WARNING indicates a potentially dangerous situation. Failure to observe this warning notice may result in severe physical injury or death. -
Page 9: Product Information
GBA Z 0899 0 E RODUCT INFORMATION The ceran hob with 2 cooking fields is electrically heated. The two cooking fields are marked with screen printing, for a correct positioning of the cooking pots. NFORMATION REGARDING COMPLIANCE WITH STANDARDS LAWS AND DIRECTIVES This appliance conforms to the following: Standards, laws, directives 2014/35/EU... -
Page 10: Packing, Transport, Intermediate Storage, Scope Of Delivery
GBA Z 0899 0 E ACKING TRANSPORT INTERMEDIATE STORAGE SCOPE OF DELIVERY ACKING The type of packing employed will depend, to a large extent, on the adopted shipping mode and route. Except where otherwise agreed by contract, packing will conform to the "HPE Packing Guideline" defined by the German Federal Association of the Wooden Materials, Pallets and Export Packing Industry and by the German Engineering Federation. -
Page 11: Installation And Electrical Installation
GBA Z 0899 0 E NSTALLATION AND ELECTRICAL INSTALLATION NSTALLATION Before the installation of the appliance, observe the following: Inspect the unit for any defect or damage sustained in transit. Check all screw connections for tightness. Familiarize yourself with the Instructions for Use and with the conditions for the safe operation of this appliance. -
Page 12: Operation
GBA Z 0899 0 E PERATION The ceran hob has an energy regulator, a green indicator lamp and a red LED under the ceran glass for each cooking field. The energy regulator switches the cooking field on and off and sets the temperature: Energy regulator off Position "0"... -
Page 13: Intended Use
GBA Z 0899 0 E NTENDED USE The ceran hob must only be used for cocking, heating or frying food in cooking pots or pans. Practice: Set the energy regulator to the desired temperature. Please use suitable crockery for best heat performance. ... -
Page 14: Unintended Use
GBA Z 0899 0 E Steak pans made of cast iron or other alloys are not suitable for cooking on the ceran hob because the large thickness of the pan base can lead to dangerous heat concentrations in the cooking field. The rough pan base can also scratch the surface and the alloy can cause non-removable stains on the ceran hob. -
Page 15: Maintenance
GBA Z 0899 0 E AINTENANCE AINTENANCE AND REPAIR Maintenance and repairs on the appliance must only be carried out by an author- ized professional observing applicable safety regulations. Improperly executed work will put your safety at risk! Before any cleaning, maintenance or repair work is carried out, the appliance must be disconnected from the mains and de-energized. - Page 16 GBA Z 0899 0 E Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. Cleaning of stainless steel For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water which contains a small amount of dishwashing detergent.
-
Page 17: Cleaning With Scraper
GBA Z 0899 0 E 6.2.1 C LEANING WITH SCRAPER We recommend that you use a special scraper for ceran glass cooking fields to remove feed residues or grease sprays. Please follow these instructions: 1. Move the blade forward to release it. 2. -
Page 18: Troubleshooting
GBA Z 0899 0 E ROUBLESHOOTING Repairs must be carried out by an authorized specialist in compliance with applica- ble safety codes and regulations. Improperly executed work will put your safety at risk! Note that some work must only be carried out by an electrical specialist. According to DIN EN 60204-1: 2011-01, specialists are „persons who by reason of their relevant training and experience are capable of recognizing risks and avoiding potential hazards."... -
Page 19: Possible Malfunctions
GBA Z 0899 0 E OSSIBLE MALFUNCTIONS Malfunction Cause Remedy Ceran hob does not heat Defective plug/electrical cord DANGER! Hazardous electrical voltage. Pull out the mains plug and bar product from further use. To be remedied by an electrical specialist. Ceran hob does not heat Energy regulator faulty Exchange energy regulator... -
Page 20: Technical Data
GBA Z 0899 0 E ECHNICAL DATA XECUTION Chrome nickel steel 18/10 Plate of glass ceramic Schott Ceran © 6mm thick, with screen printing marked cooking fields, for a correct positioning of the cooking pots With energy regulator, with safety thermostat, with signal lamps, with residual heat control lights ... -
Page 21: Spare Parts List
GBA Z 0899 0 E PARE PARTS LIST Maintenance and repairs on the appliance must only be carried out by an author- ized professional observing applicable safety regulations. Improperly executed work will put your safety at risk! Work at the electrical installation must only be performed by qualified electricians! Art.-No. -
Page 22: Disposal And Environmental Notes
GBA Z 0899 0 E ISPOSAL AND NVIRONMENTAL OTES The appliance has been packed before shipping to protect it against damage in transit. After unpacking, please dispose of packing materials in an environmentally sound manner. All packing materials are eco-compatible, 100% recyclable and marked with a sym- bol to that effect. -
Page 23: Warranty And Service
GBA Z 0899 0 E ARRANTY AND SERVICE 10.1 W ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; ... -
Page 24: Service Address
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg/Germany Phone 0049 (0)2661/9868-10...
